⭐ Key Features

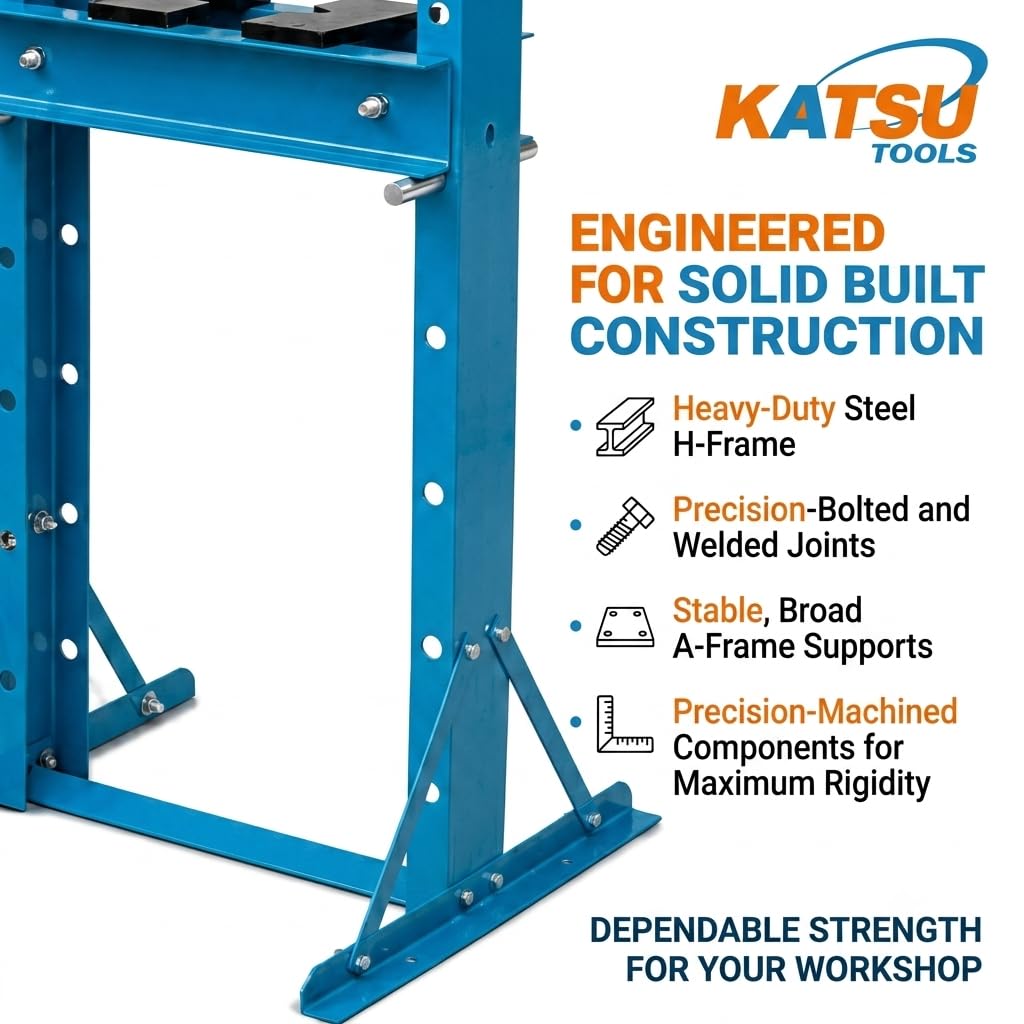

- Heavy-Duty Steel Frame & 12-Ton Capacity – Provides excellent strength, stability and long-term reliability.

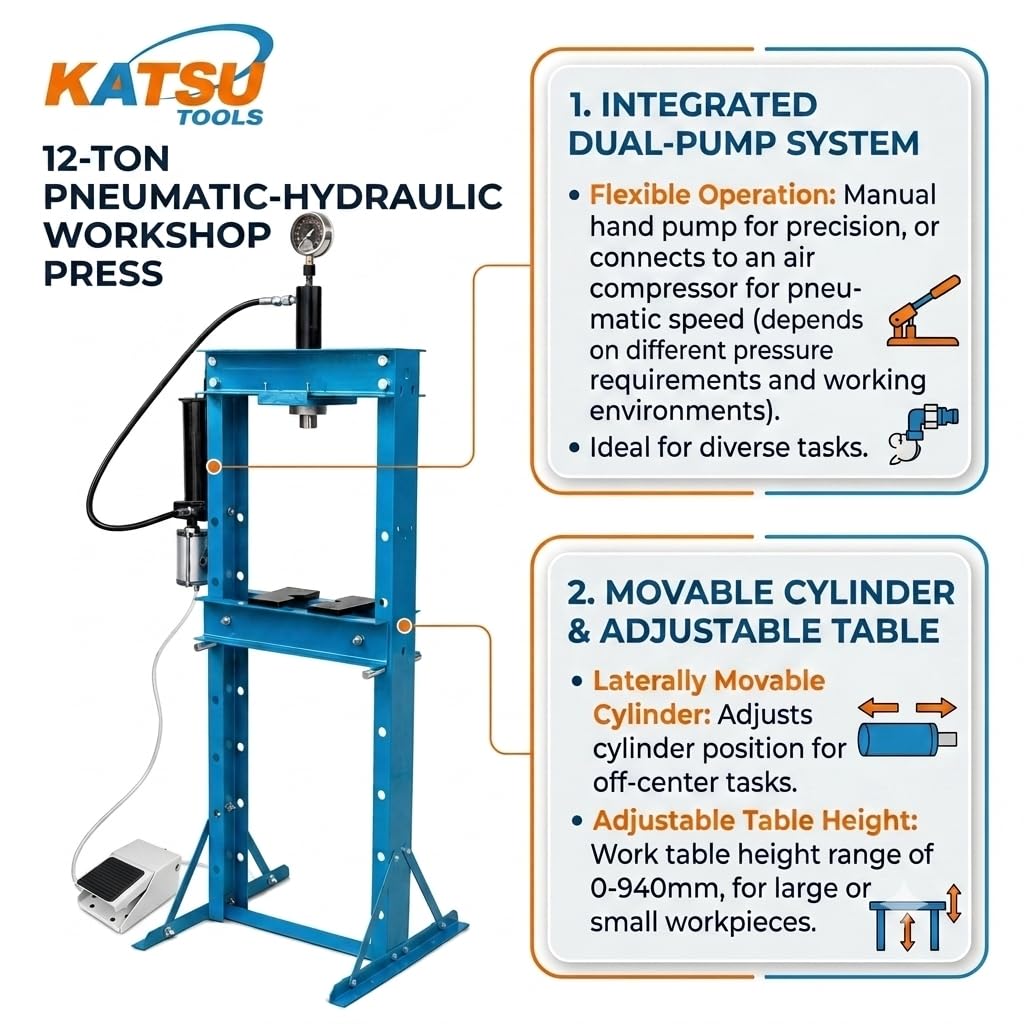

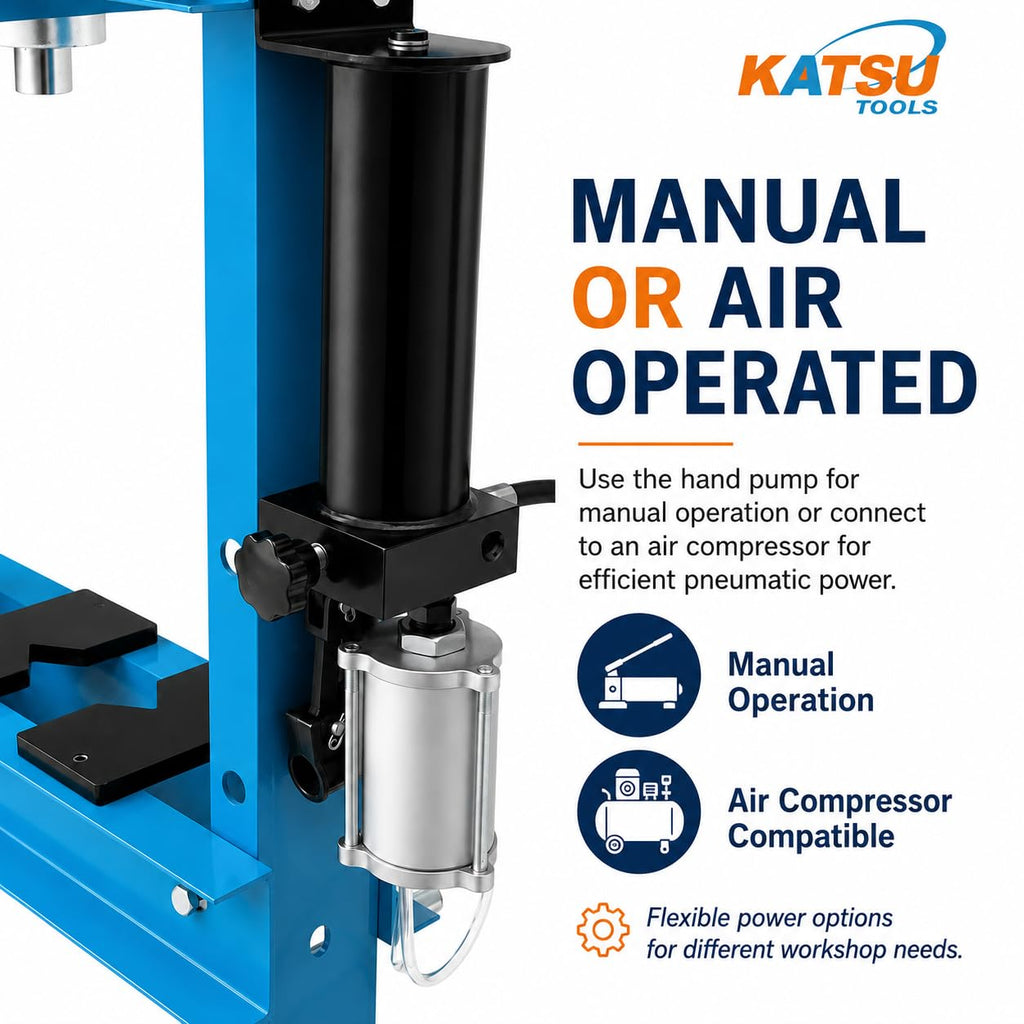

- Hydraulic Hand & Air Pump System – Integrated dual operation offers flexible and efficient performance.

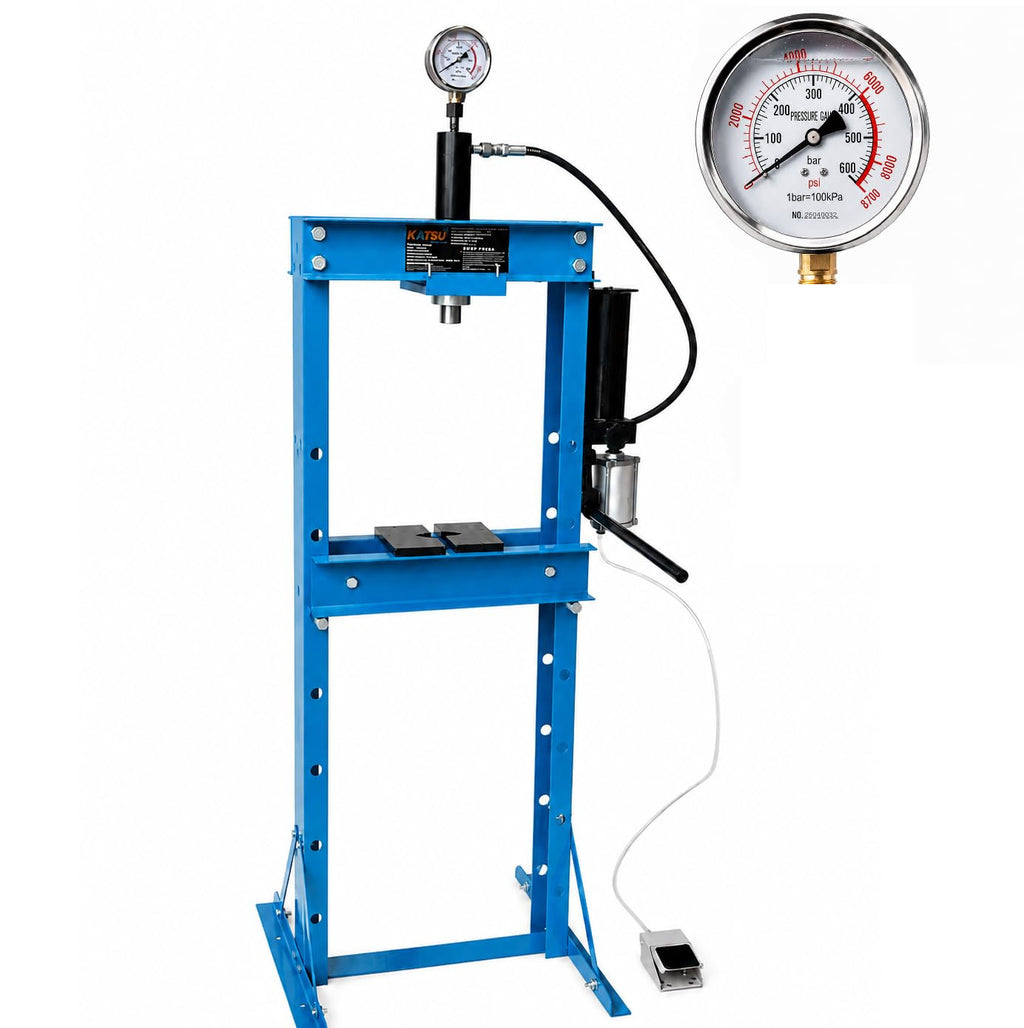

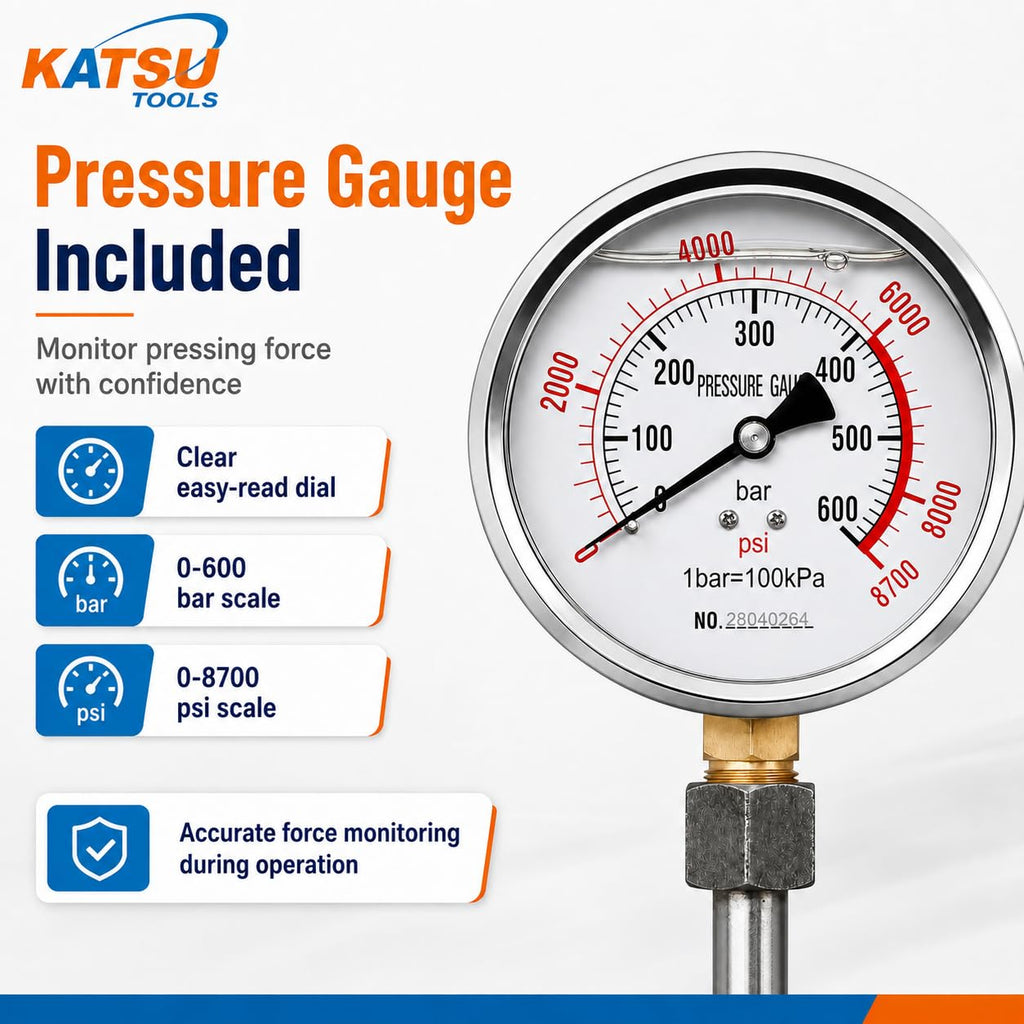

- Foot Pedal Control & Pressure Gauge – Enables hands-free operation and precise force monitoring.

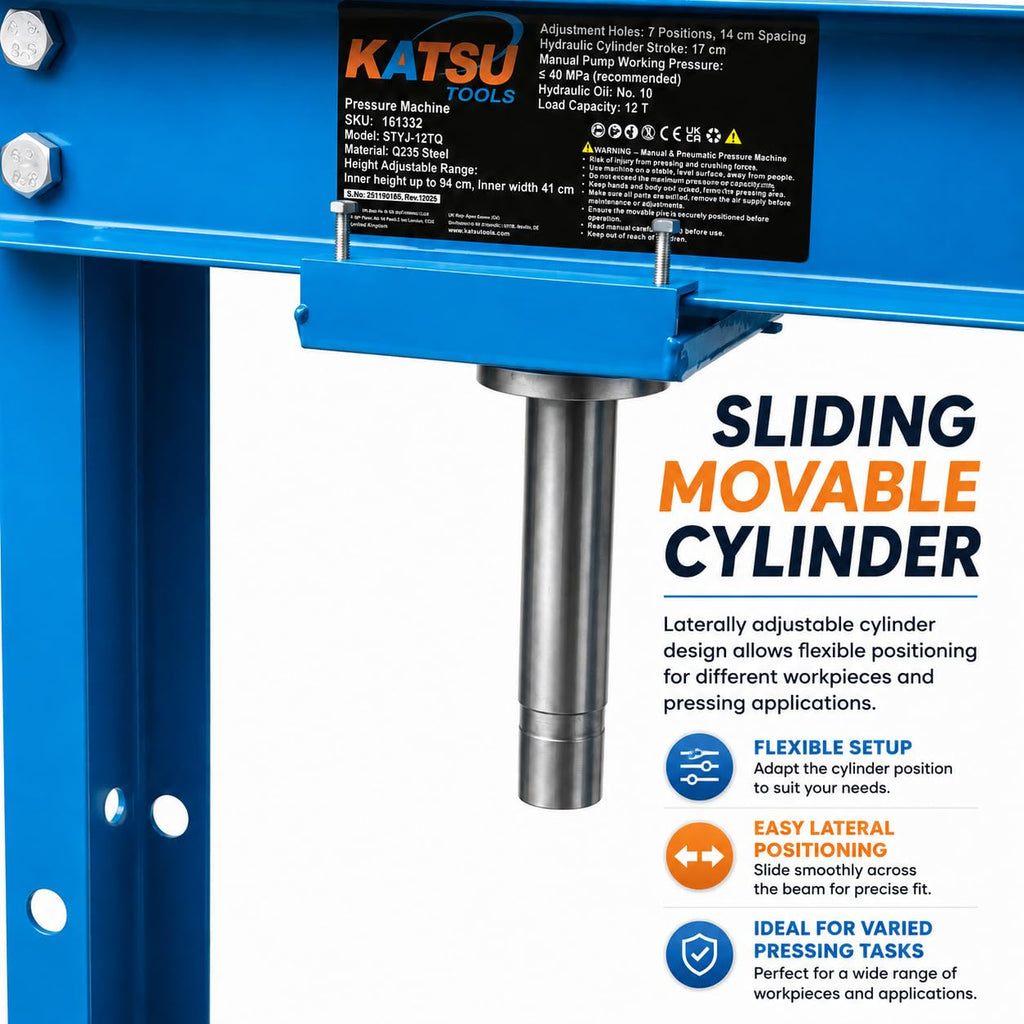

- Movable Cylinder & Adjustable Working Height – Laterally movable cylinder and adjustable working height for flexible setup.

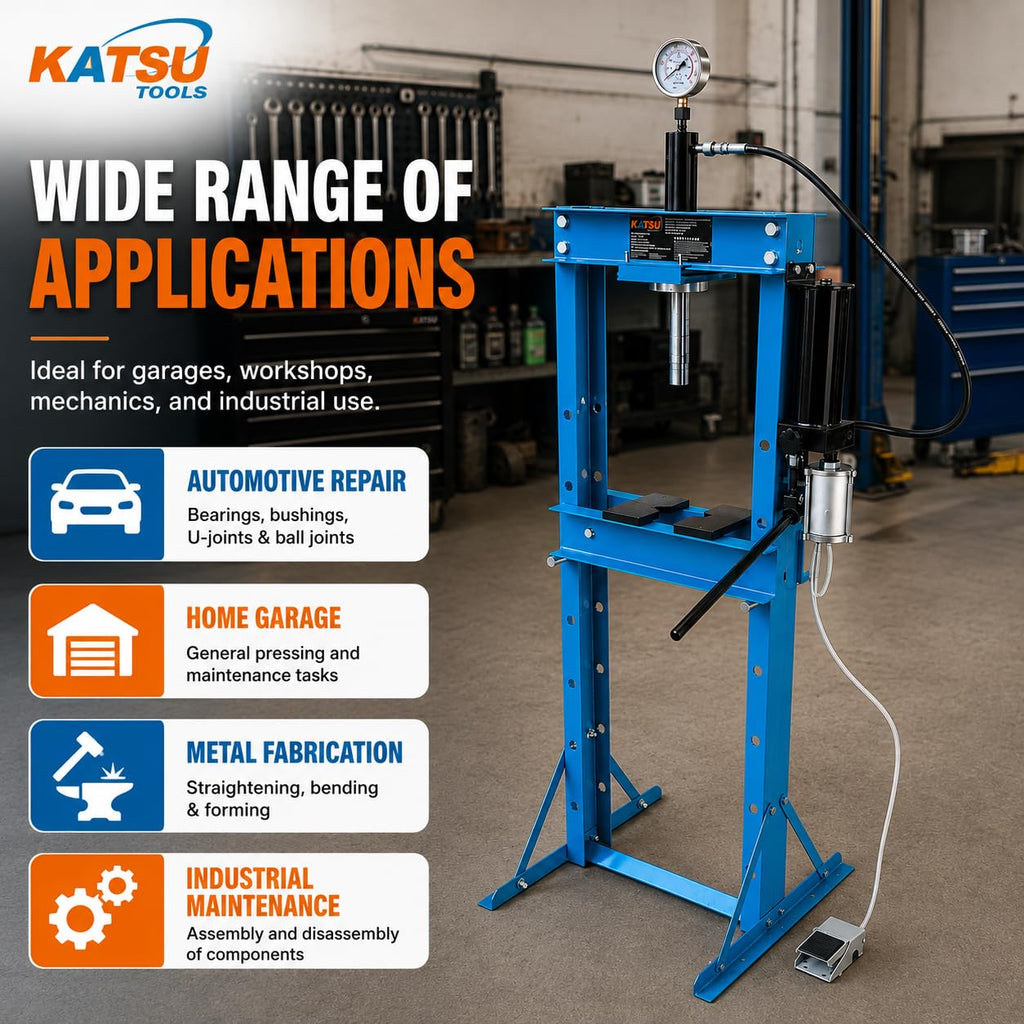

- Wide Range of Applications – Ideal for home garages, workshops, mechanics and industrial pressing tasks.
⚙ Key Specifications

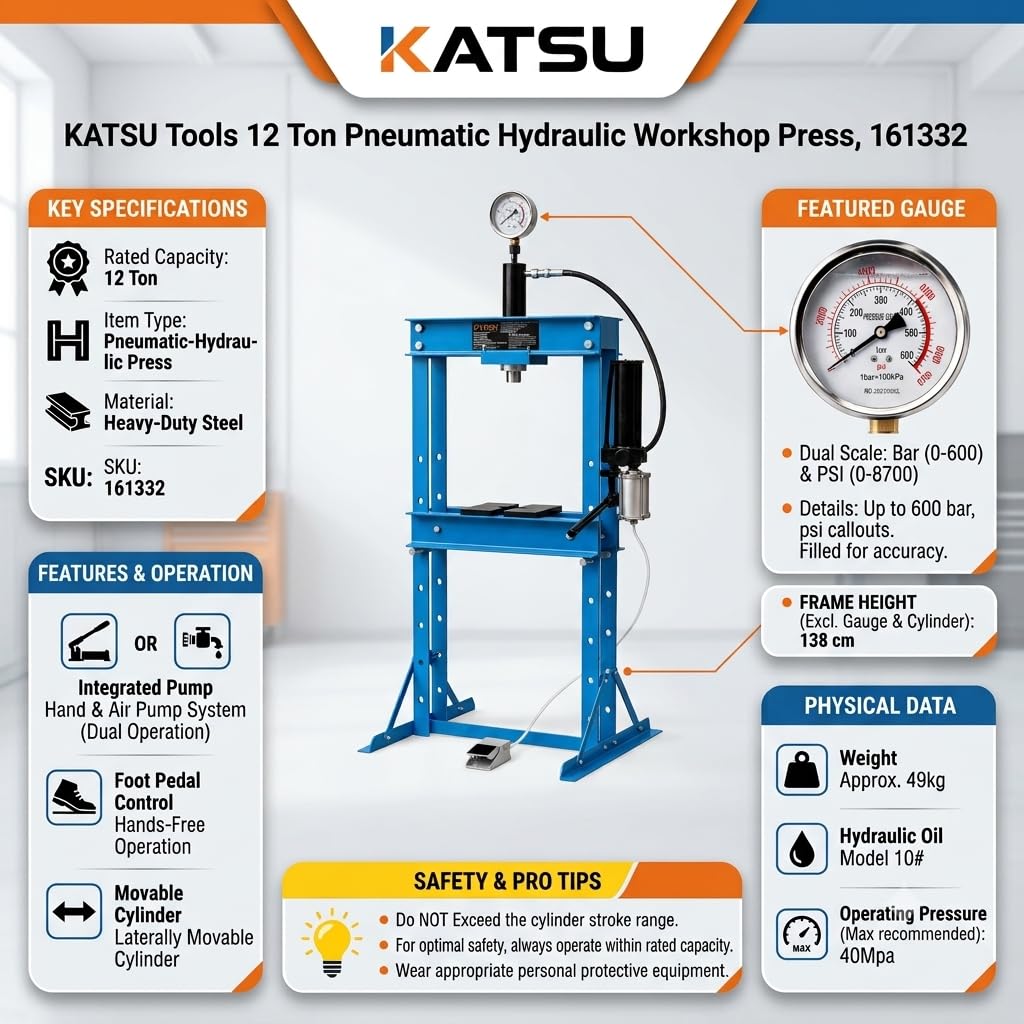

- Item Type: Pneumatic-Hydraulic Press
- Rated Capacity: 12 Ton
- Material: Steel
- Working Width: 410mm
- Adjustable Work Table Height: 0-940mm
- Hydraulic Cylinder Stroke: 170mm
- Max Pump Operating Pressure (Recommended): 40Mpa
- Hydraulic Oil Model: 10#
- Product Weight: Approx. 49kg
- Product Dimensions (Assembled & Excluding the Size of Gauge and Cylinder): 58 x 58 x 138 cm
🎯 Ideal For
- Wide Range of Applications – Ideal for home garages, workshops, mechanics and industrial pressing tasks.
📦 What’s Included
- KATSU Tools 12 Ton Pneumatic Hydraulic Workshop Press
