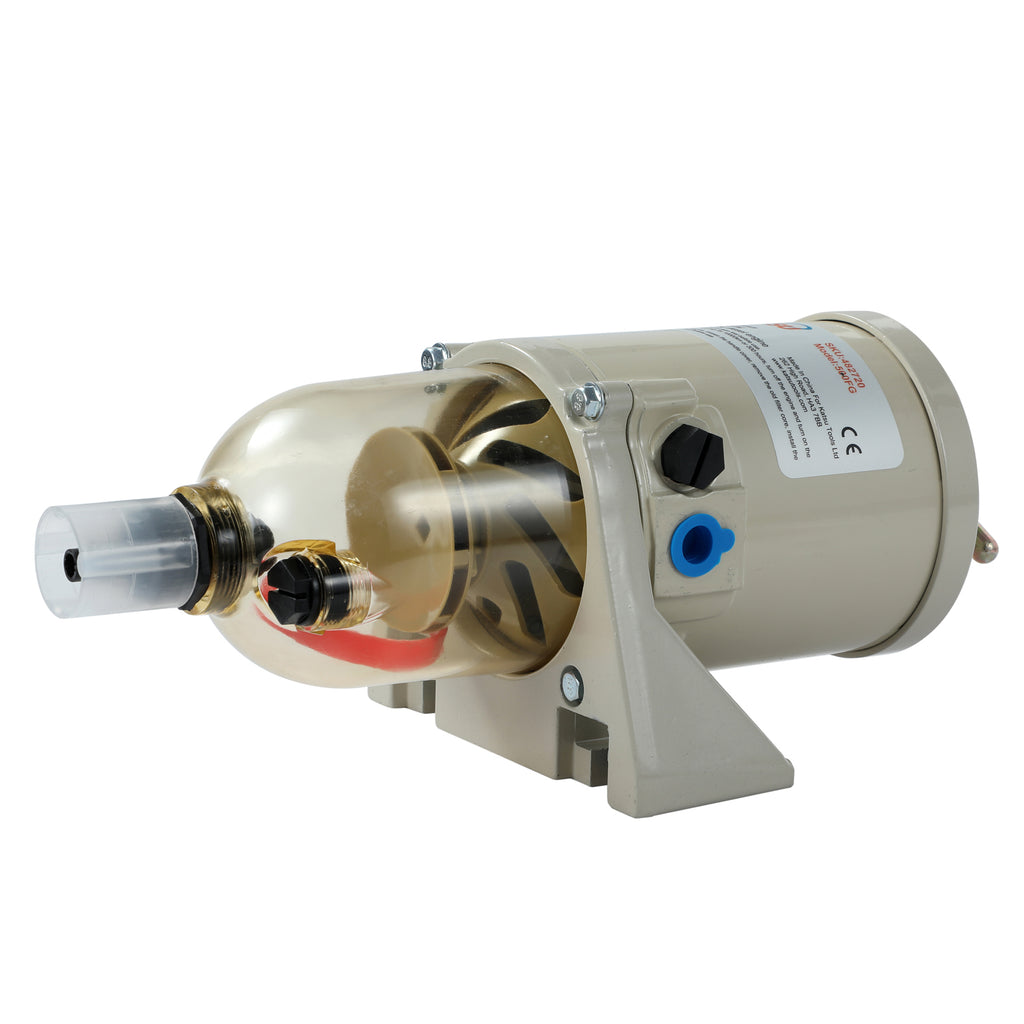

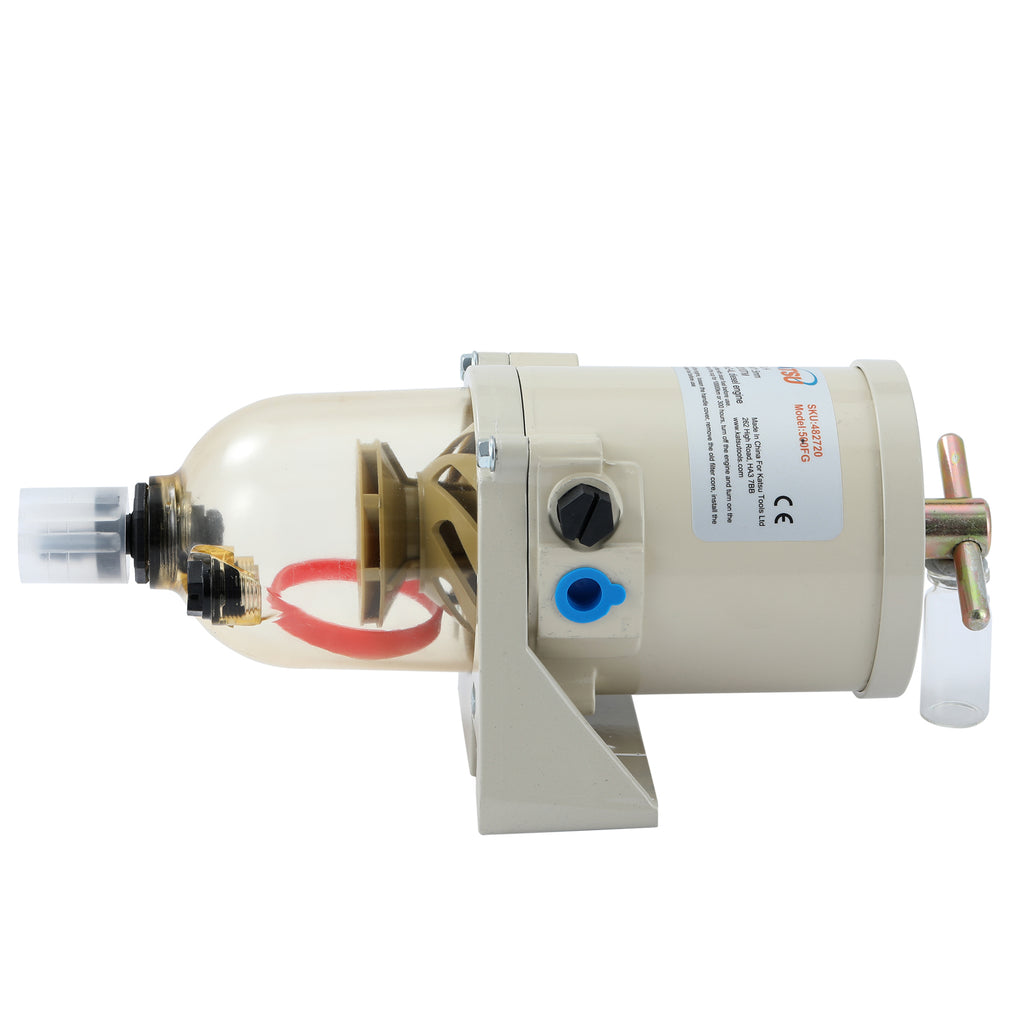

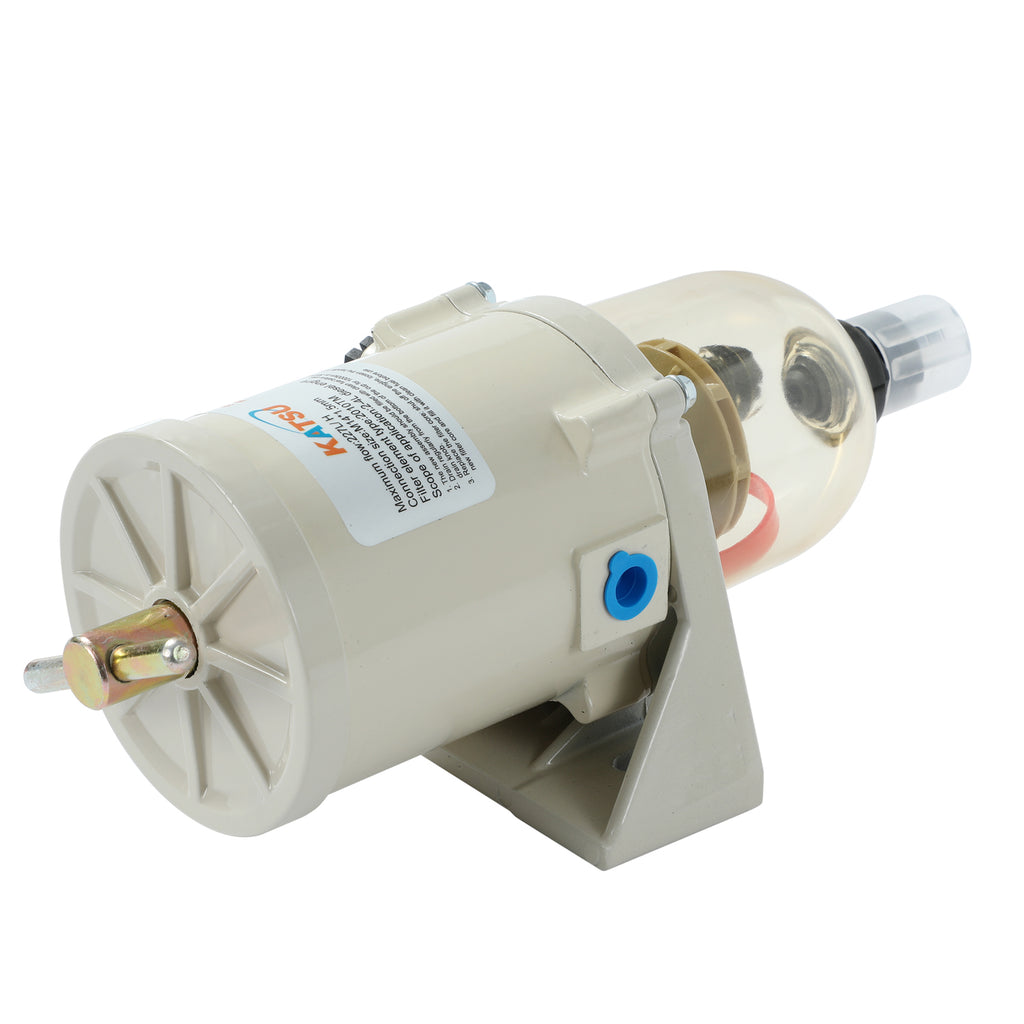

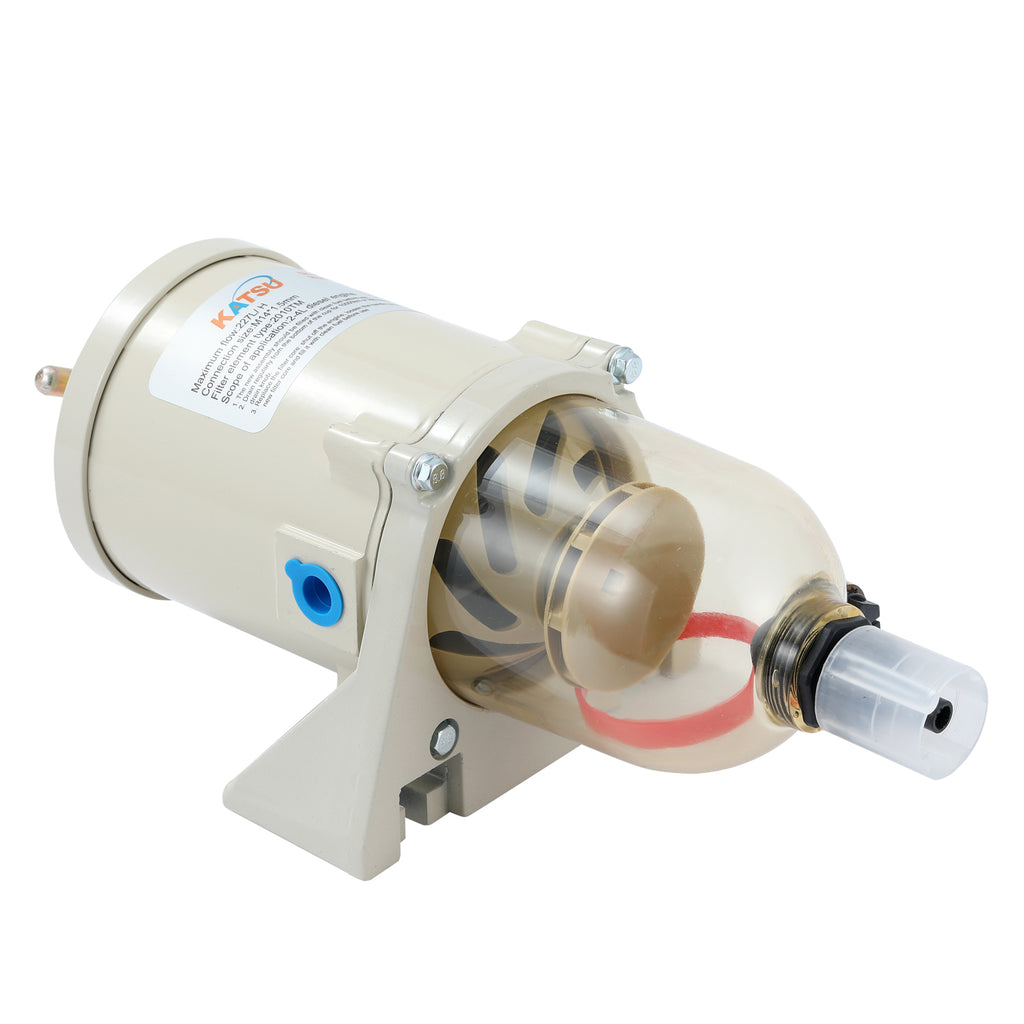

482720 Racor Type Diesel Filter FG500
Filter element: Diameter: 80mm Height: 78mm

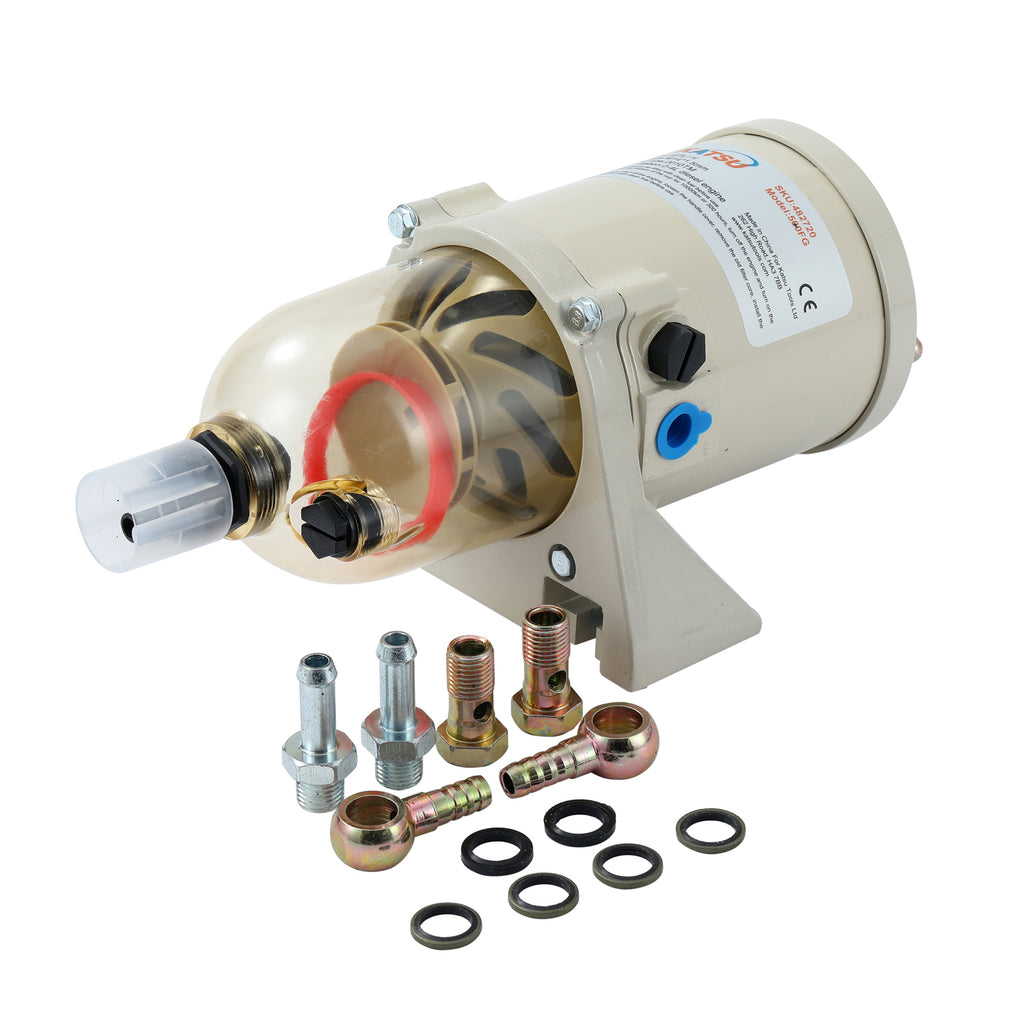

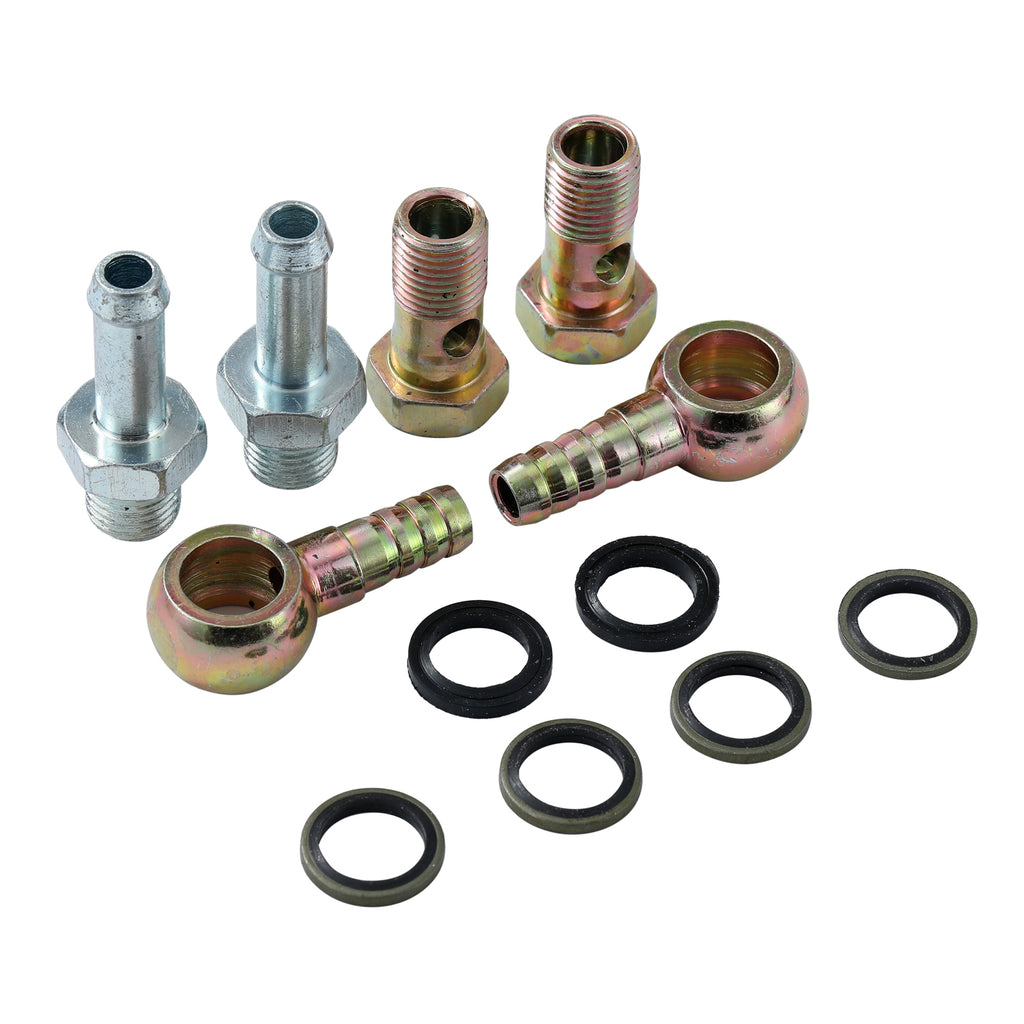

Inlet and outlet threads: M14*1.5mm(the M14 bolts are supplied).
Filter filtration capacity: 30 microns.
Max flow: 60 gallon/h(227L/h).
Oil pipe connector: 10mm(suitable internal dia. 10mm diesel pipe)
Connector installation: the end marked with "IN" is inlet, the end marked with "OUT" is outlet.
Application: Suitable for <340HP motor
Replacement filter element available in our store, please click the image below:
