4 Ton Snatch Block, solid construction and easy-to-use pivot design. Designed to double the pulling power of your winch, reducing current draw and loading on your winch motor, bearings and gearbox.
⭐ Key Features

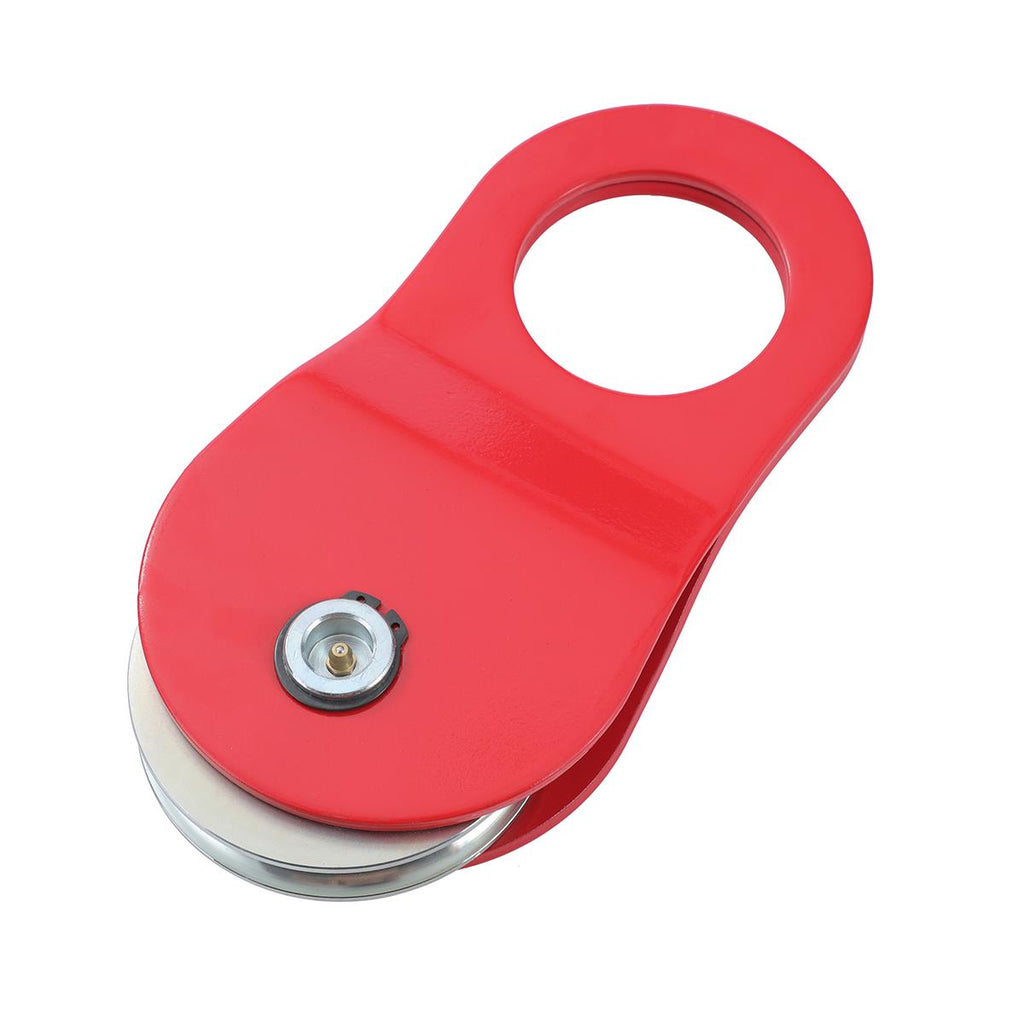

- Comes completely with a grease nipple allowing continued free running of the pulley wheel.

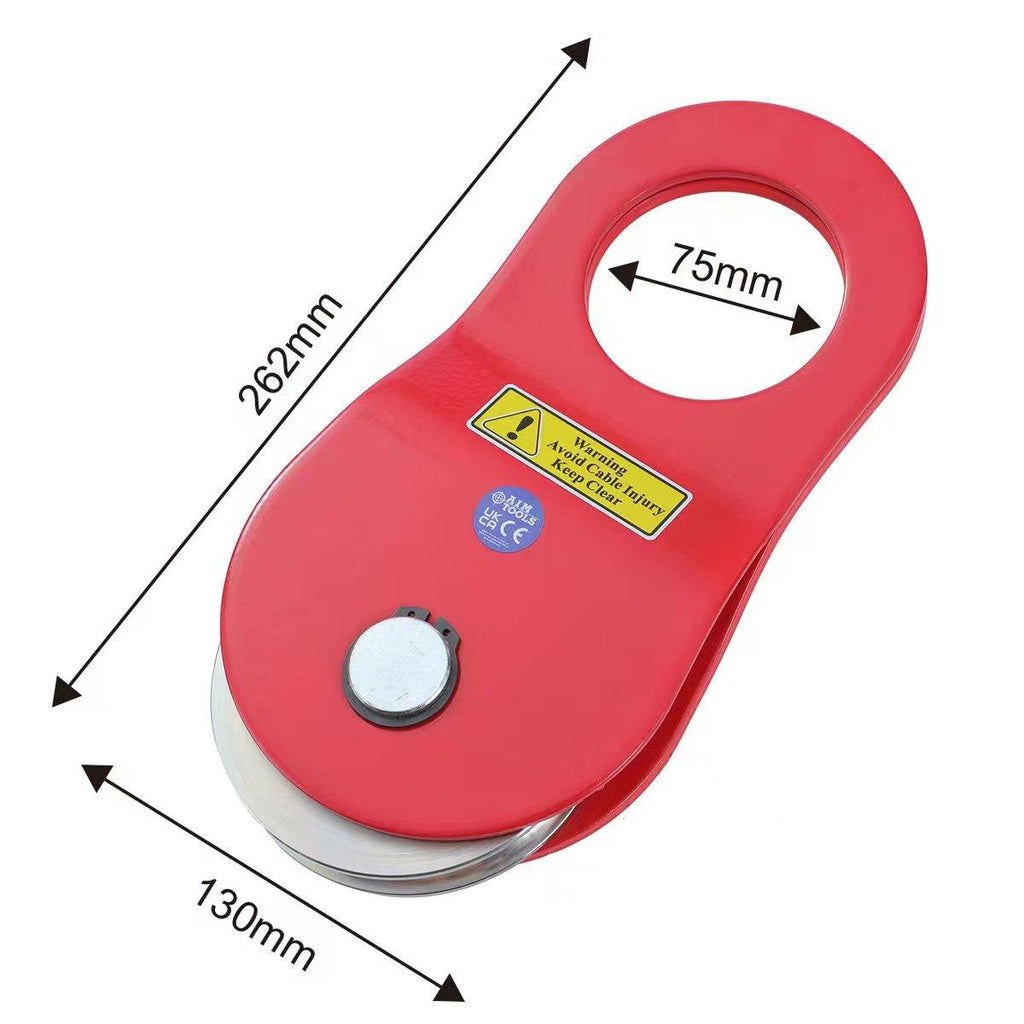

- Approx.262mm Long x 130mm Wide x 75mm diameter hole, for use with the cable / ropes diameter up to 16mm.
- An essential tool for use with your quad/ATV/Argo winch. 4 Ton, 8 Ton and 10 Ton are available in our store.
⚙ Key Specifications
| Body Material |
Powder-coated iron |
| Pulley Material |
45# Steel |
| Maximum Loading Capacity |
10 Ton |
| Breaking Strength |
13 Ton |
| Hole Diameter |
Approx.75mm |
| Rope Diameter |
15mm |
| Dimensions |
Approx.262 x 130 x 48 mm |
| Unit Weight |
3.7 kg |
⚠ Important
- Only suitable for pulling, not for lifting, and please do not use at full capacity due to the risk of breaking.
