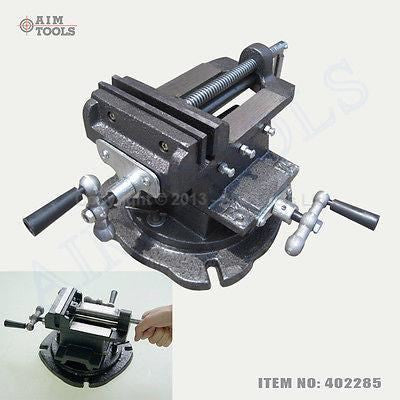

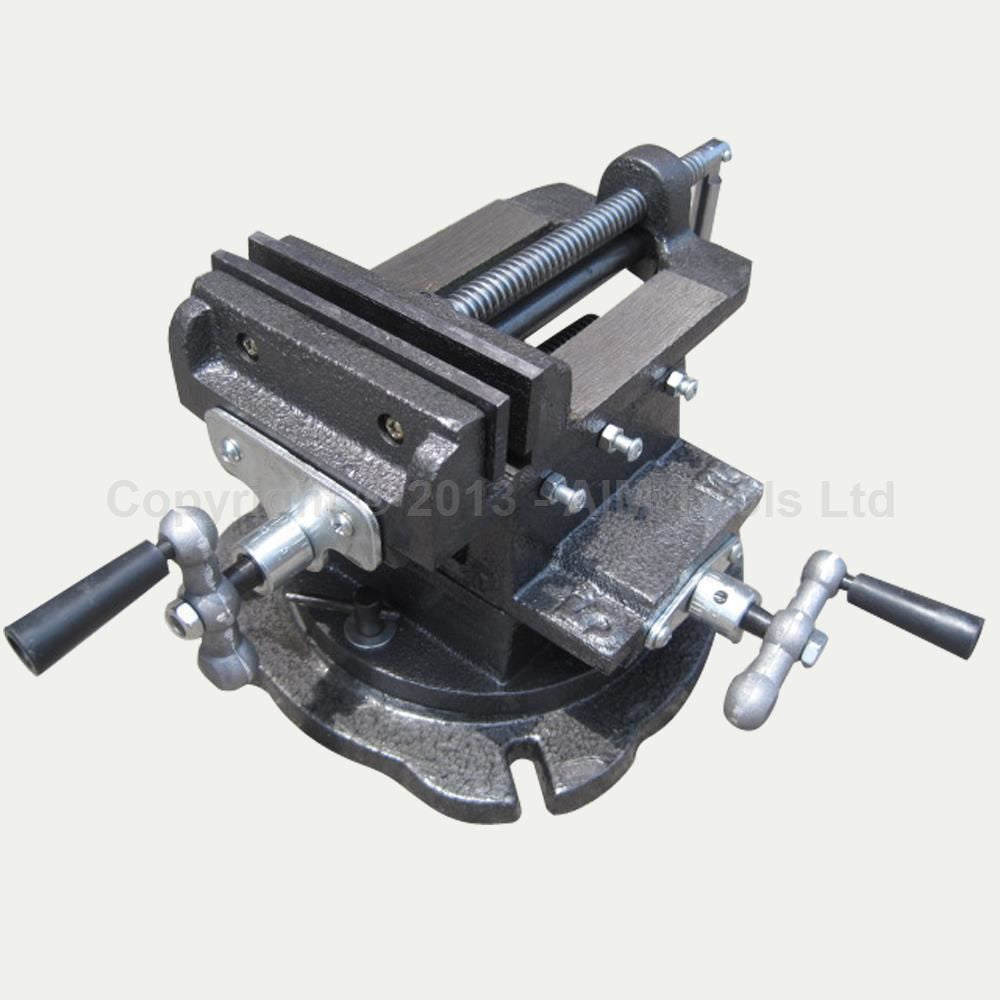

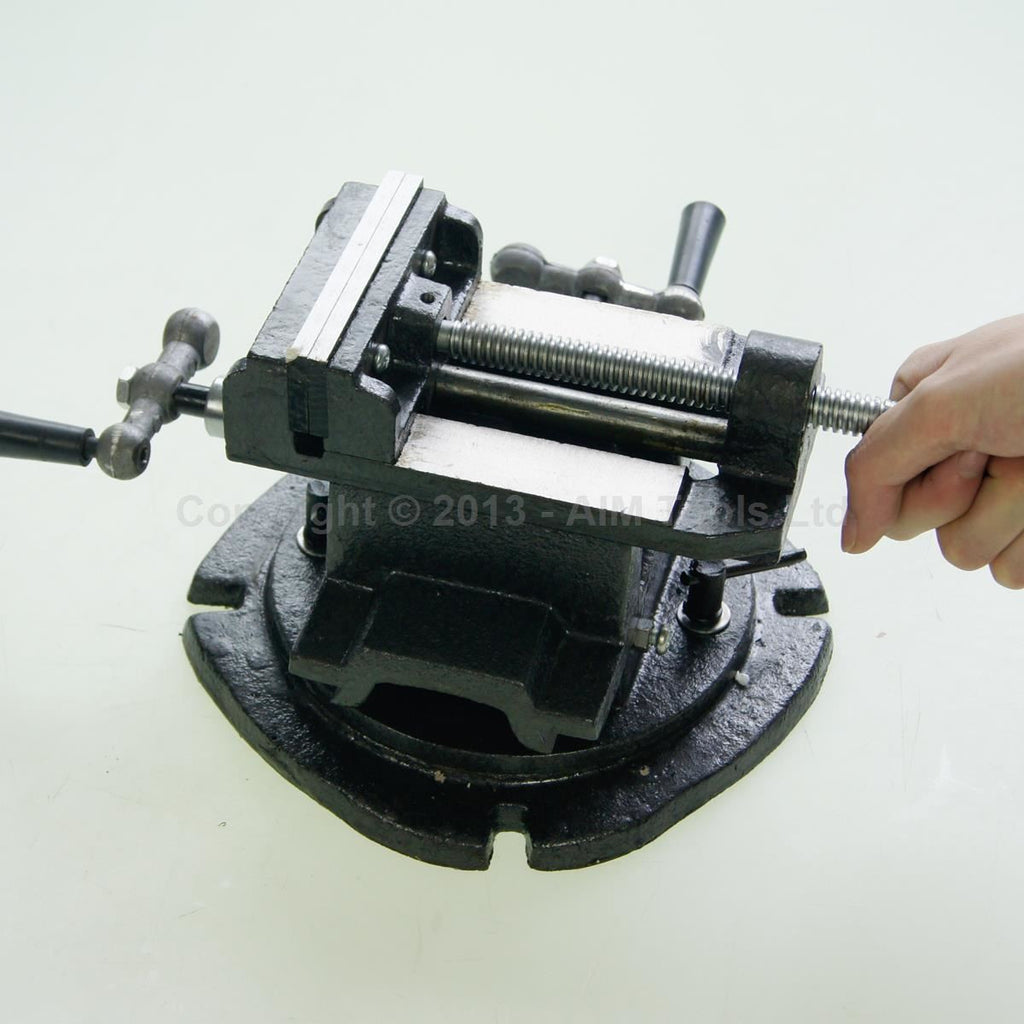

3 sizes are available: 3", 4", 5"
- Made from cast iron.

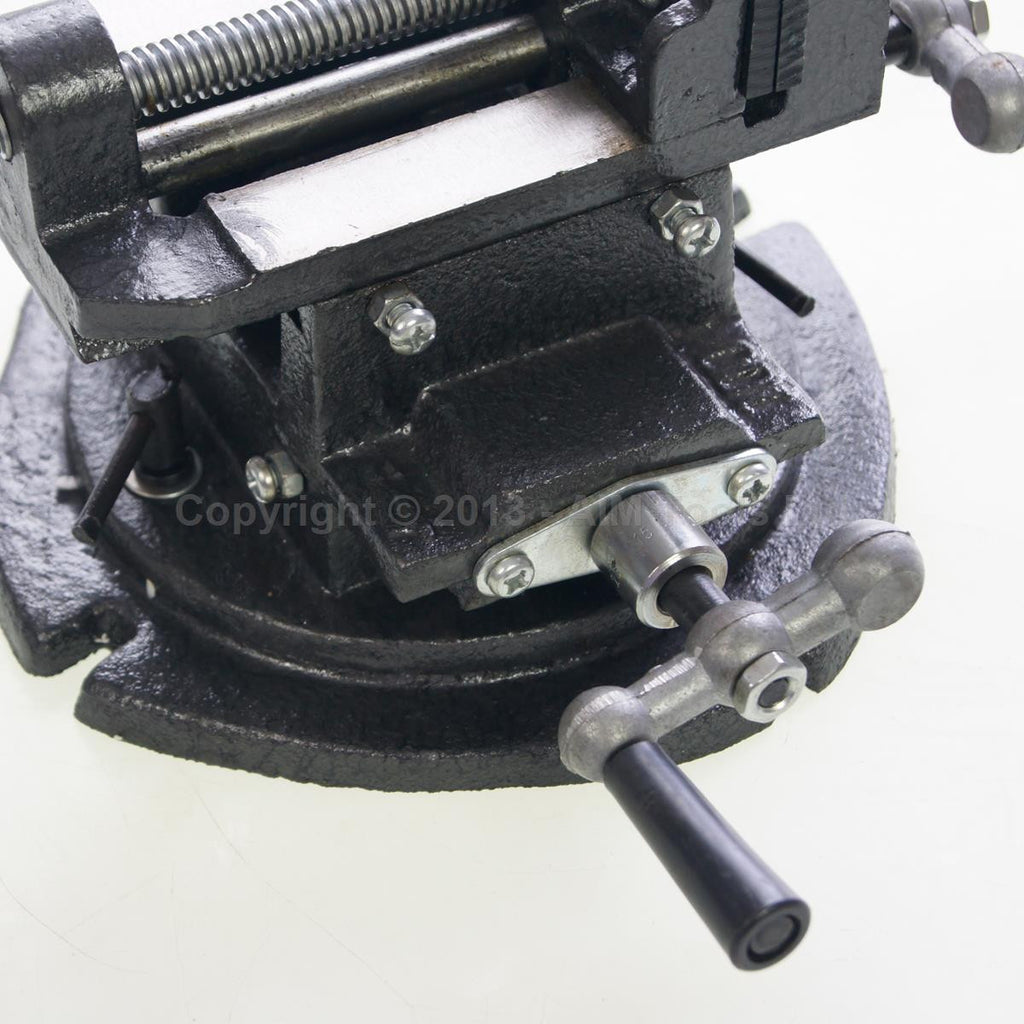

- 360 Degrees with the swivel base.
Specification 3":
Jaw width :80mm
Jaw height:30mm
Max.Jaw opening :63mm
Installation pitch: 165*165mm
The width of the installation pitch:8mm
Total height:140mm. |
Specification 4":
Jaw width :100mm
Jaw height:34mm
Max.Jaw opening :91mm
Installation pitch:200*200 mm
The width of the installation pitch:9mm
Total height:145mm |
Specification 5":
Jaw width :125mm
Jaw height:38mm
Max.Jaw opening :135mm
Installation pitch:200*200 mm
The width of the installation pitch:9mm
Total height:172mm. |
