Accurately Measures: AC/DC voltage, AC current, resistance, Capacitance, diode and continuity buzzer tests.

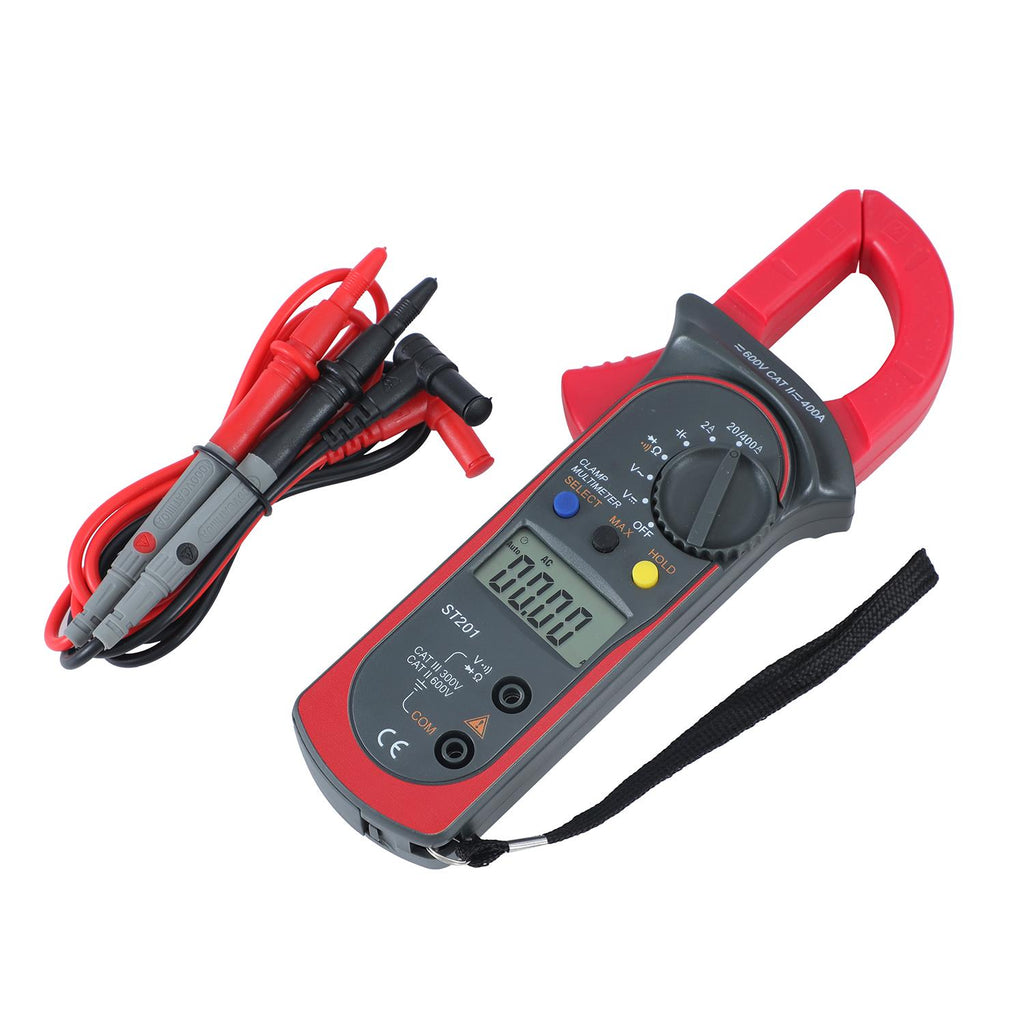

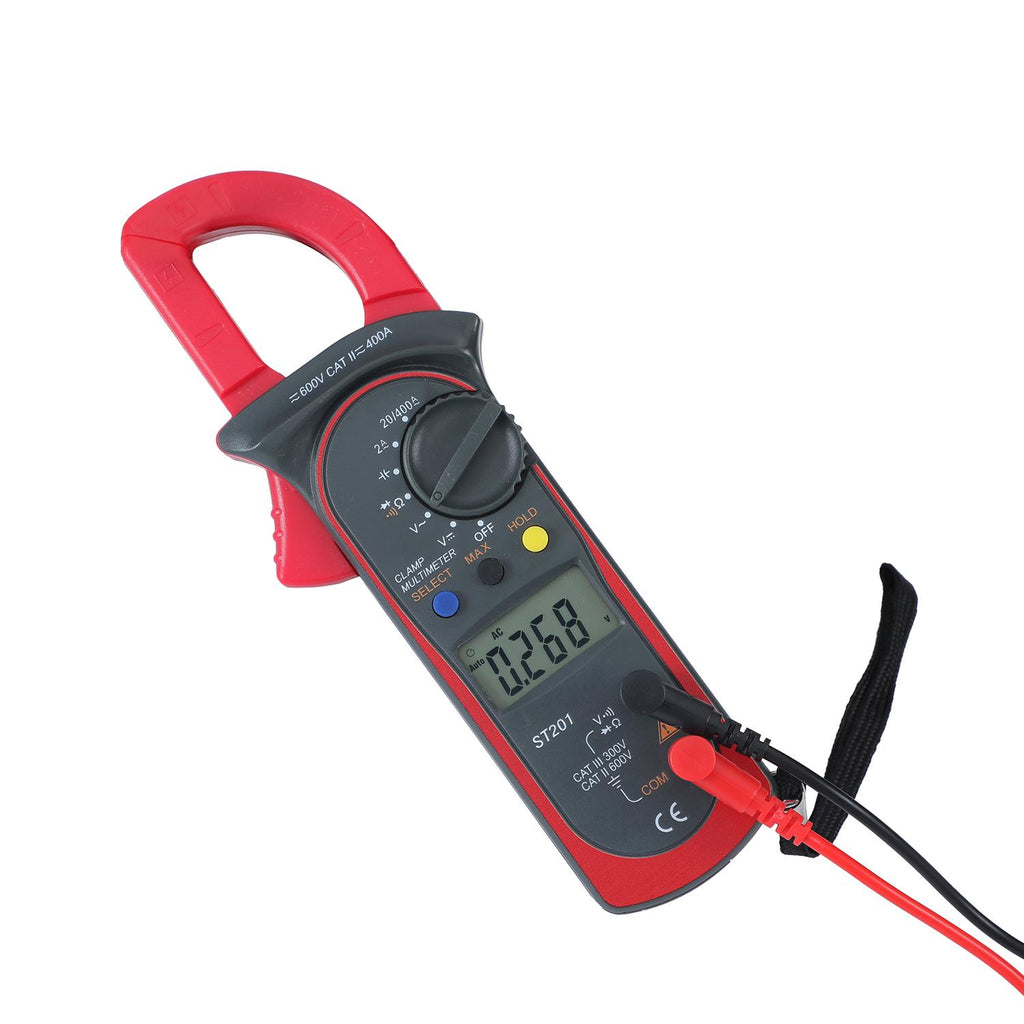

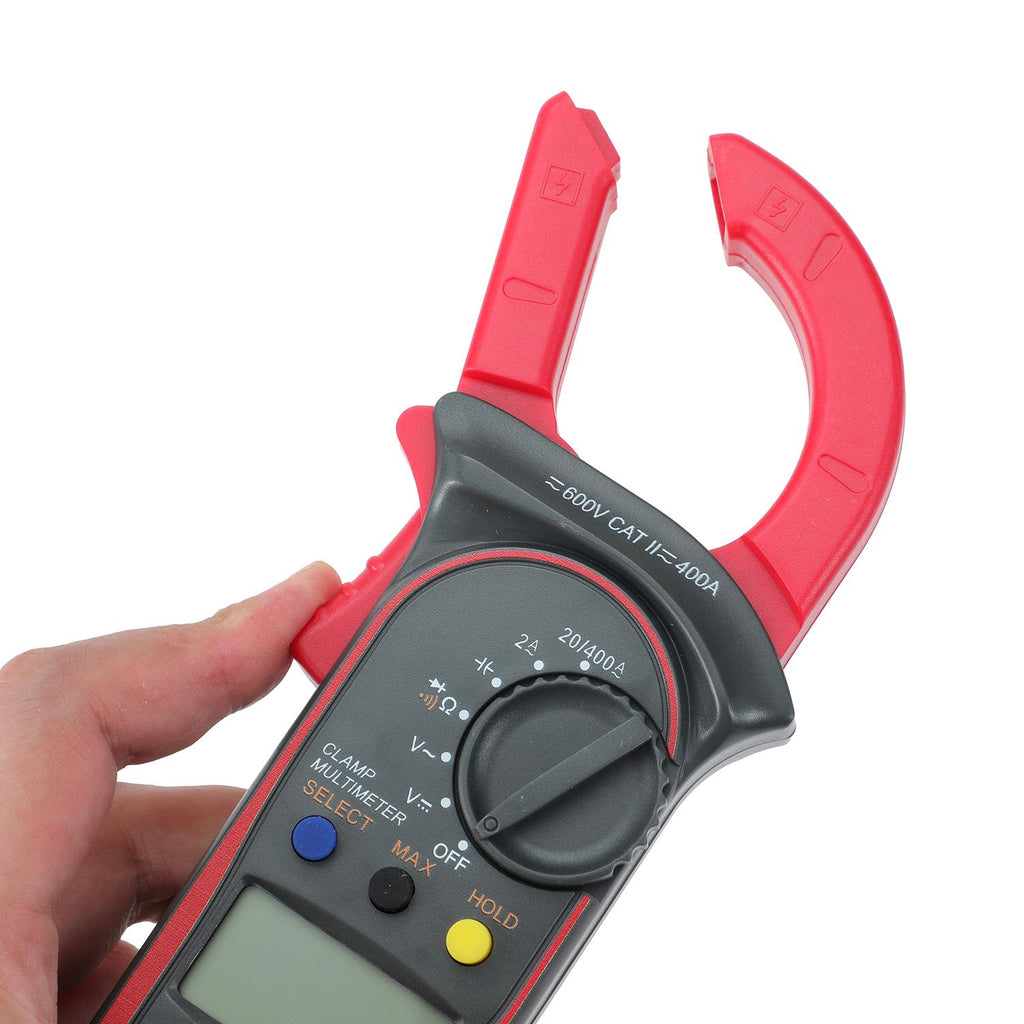

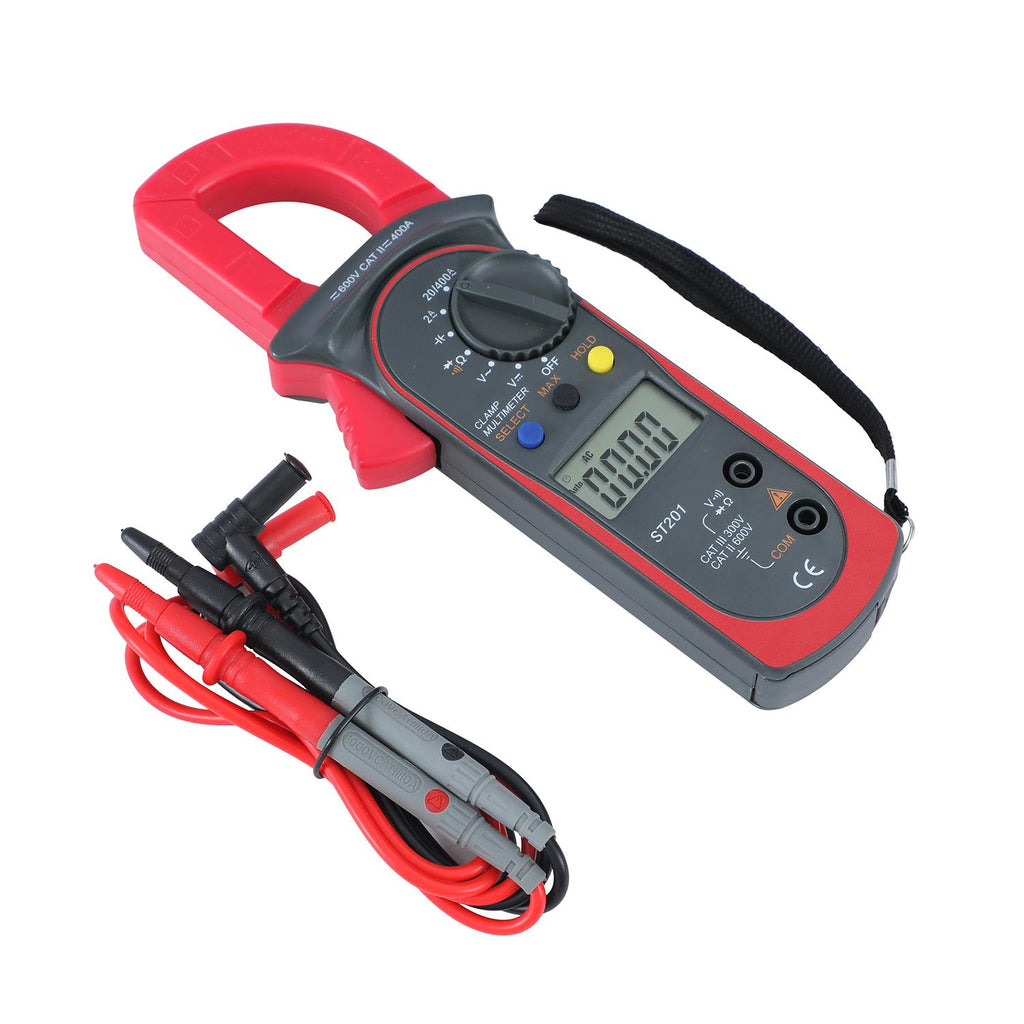

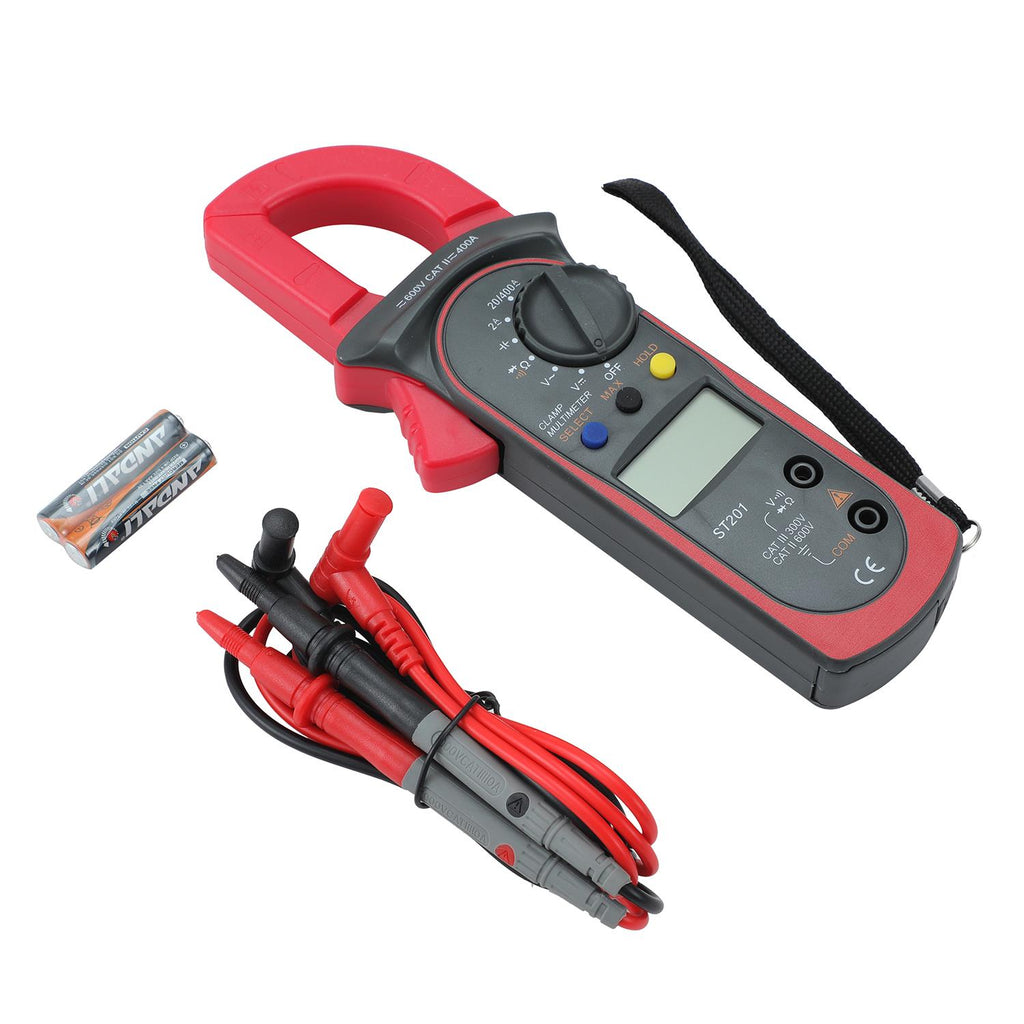

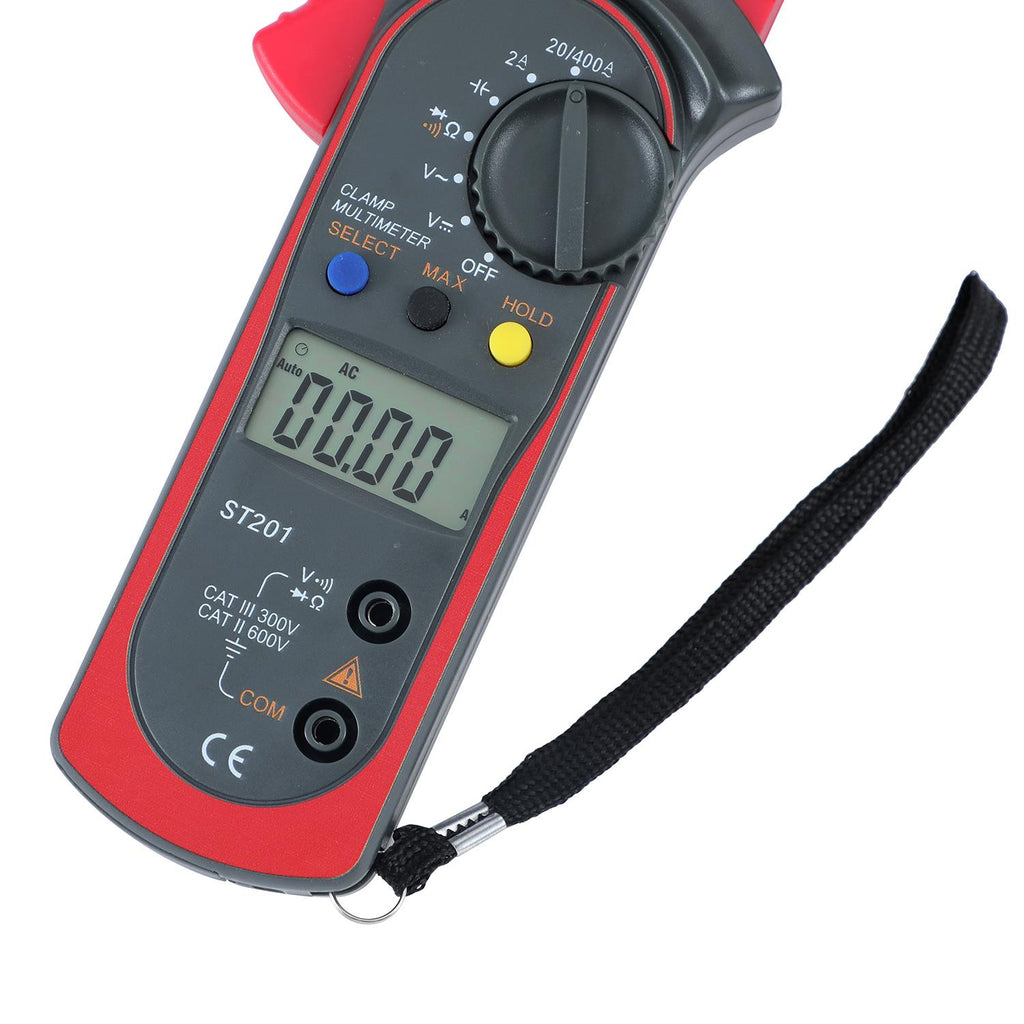

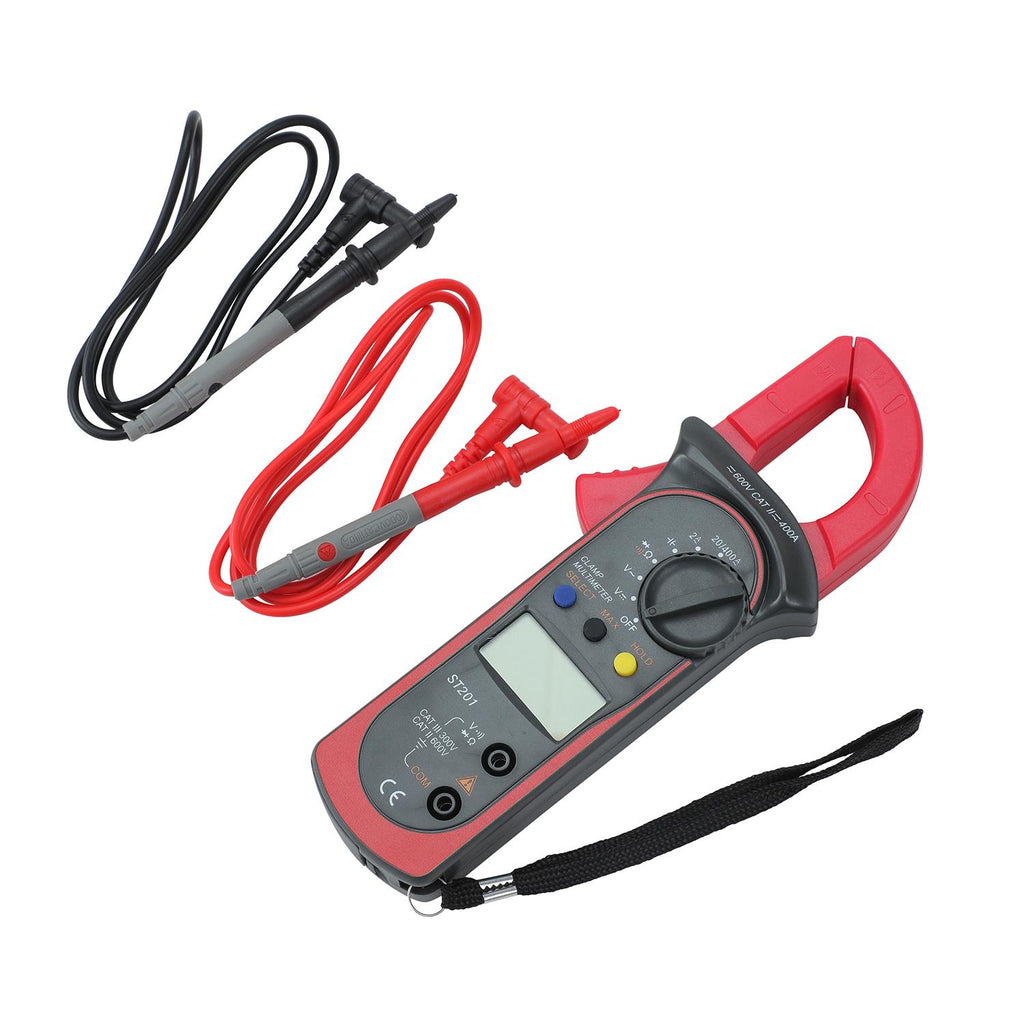

The Clamp measures the AC current in a conductor up to 23mm without interrupting the circuit. Additional Features: Data hold, max reading, and an easy-to-read large LCD.
Automatically enters sleep mode after 15 minutes of inactivity for energy conservation.
Stable performances, high reliability, clear reading and overload protection.
NOTE: This meter cannot test DC Current; Ensure your multimeter is set to the correct setting before testingSpecifications:
DCV: 200m-2000m-20-200-500V ±1.0%
ACV: 200-500V ±2.2%
DCA: 200u-200m-10A ±2.5%
Resistance: 200-2000-20k-200k-20MΩ ±1.5%
LCD Size: 48x17mm
Max Display: 1999
Low Battery Indication: yes
Overload Protection: yes
Diode Test: yes
Continuity Buzzer Test: yes
Battery Test: 1.5V/9V/12V
Data Hold: yes
Power Supply: 1x9V 6F22 battery ( included )
Product Size: 132x76x36mm
Product Weight: about 170g
This Multimeter is designed to troubleshoot a variety of automotive and household electrical problems safely and accurately.
As a general measurement tool with high accuracy, this multimeter can solve automotive and household electrical problems, widely used in school, laboratory, factory, radio technology and other social areas.
1 x DT33B Digital Multimeter

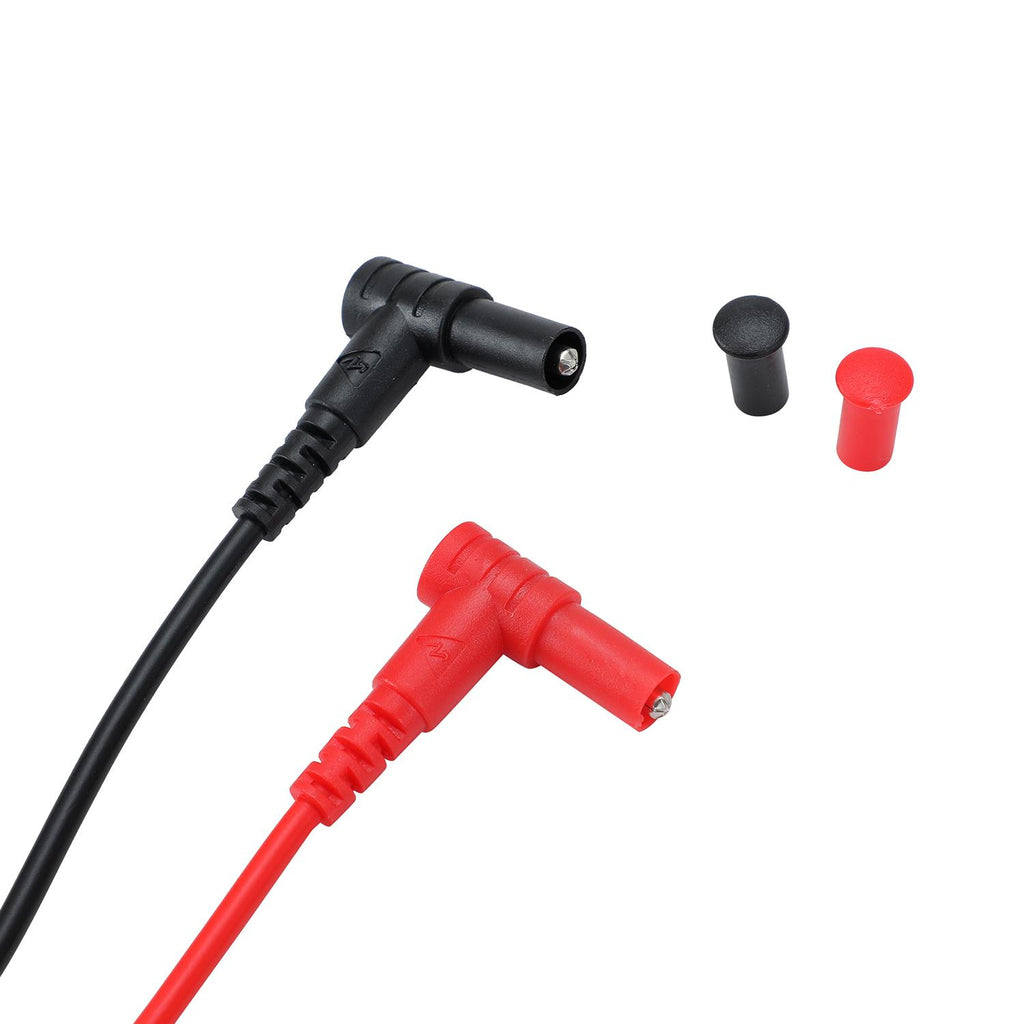

2 x Test Leads
1 x Holster
1 x User Manual
