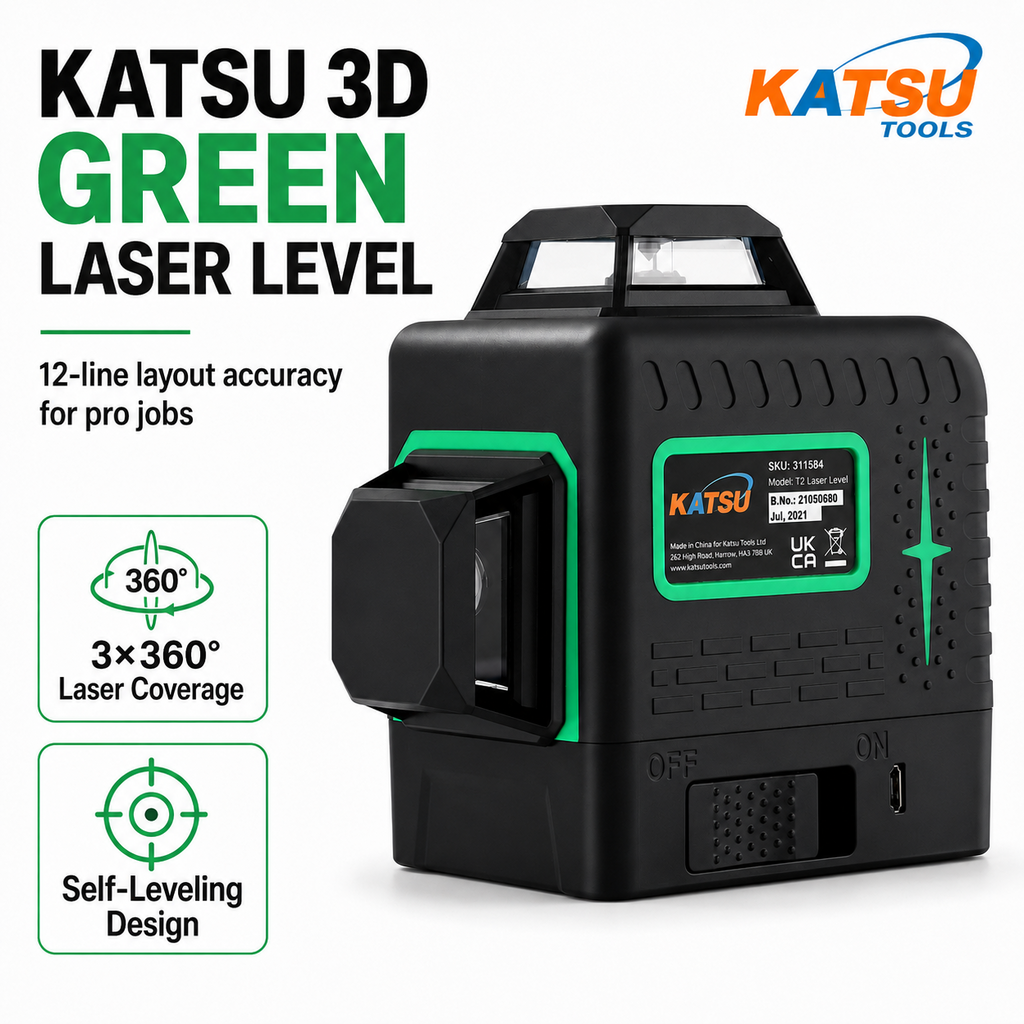

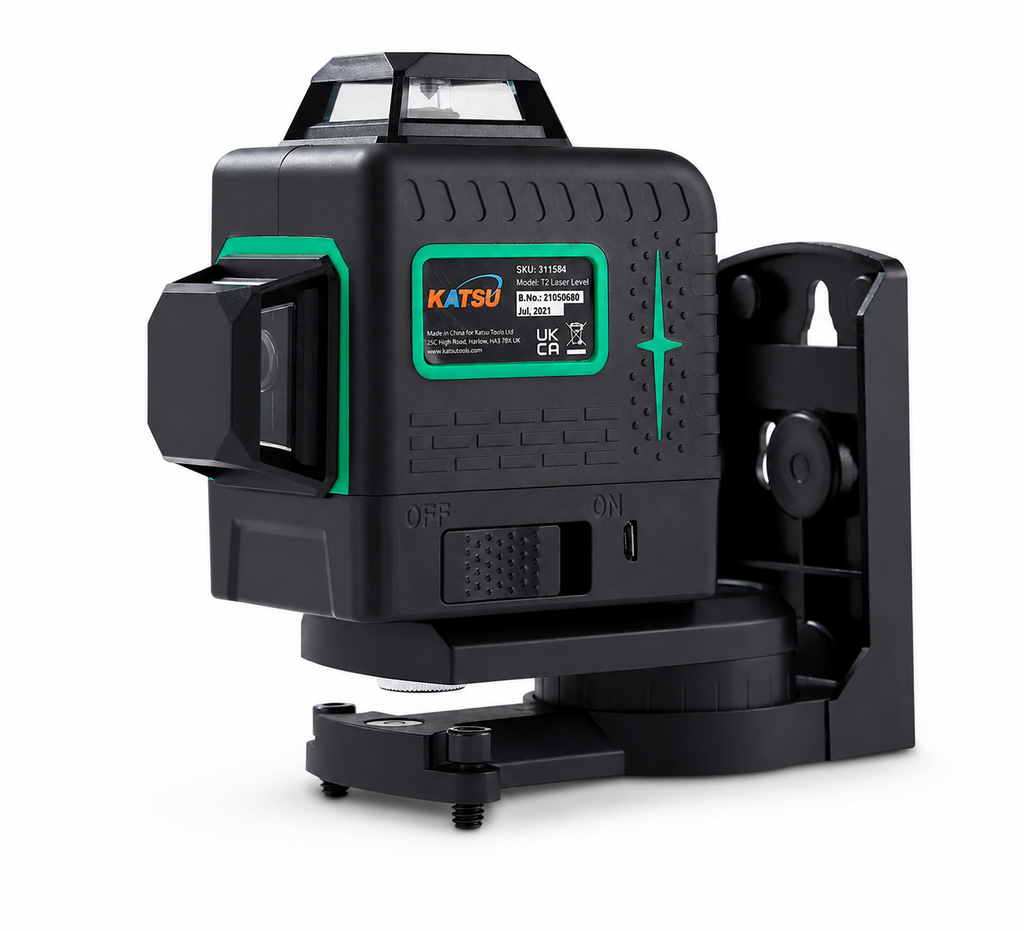

KATSU Tools 3D Laser Level 12 Lines, 3x360 Degree Green Cross Line Horizontal Vertical Self-Leveling Tiling Floor Layout Laser Tool with Pulse Mode
Product Overview
The KATSU Tools 3D 12-Line Laser Level provides an incredibly bright, full-room 3x360° green cross-line coverage for precision tiling, flooring layouts, drywalling, and structural alignment. Projects 532nm Class 2 green laser lines that are highly visible up to 15 meters indoors and extend out to a 30-meter total measuring range. Featuring a rapid self-leveling time under 4 seconds, manual override for angled sloped lines, and a dedicated outdoor pulse mode, this tool is built for both indoor detailing and outdoor construction. Powered by durable, easy-exchangeable Li-ion batteries (2X supplied inside), it offers an extended 5-7 hour runtime under extreme workshop conditions.
Features
-
3x360° Full-Room 12-Line Layout: Outputs 4 horizontal and 8 vertical green lines simultaneously or independently, creating a comprehensive 3D grid layout across floors, walls, and ceilings.
-
Rapid <4s Self-Leveling & Manual Tilt Mode: Automatically levels itself within seconds when placed on uneven surfaces. Features a manual override function allowing you to lock the pendulum to project angled layout lines for staircases and handrails.
-

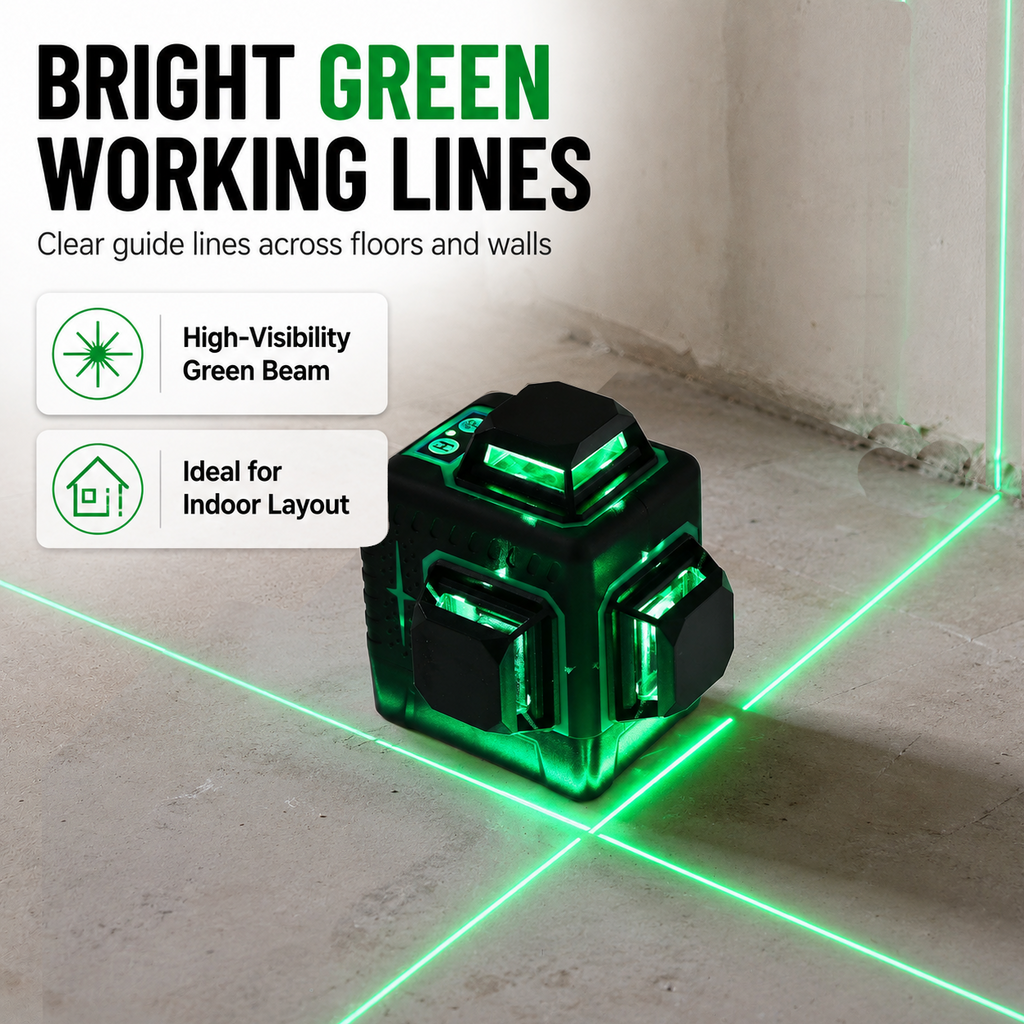

High-Visibility Green Laser & Pulse Mode: Equipped with an ultra-bright 532nm green laser beam visible up to 15 meters indoors. Supports an integrated outdoor pulse mode for extended range when used with a laser receiver.
-

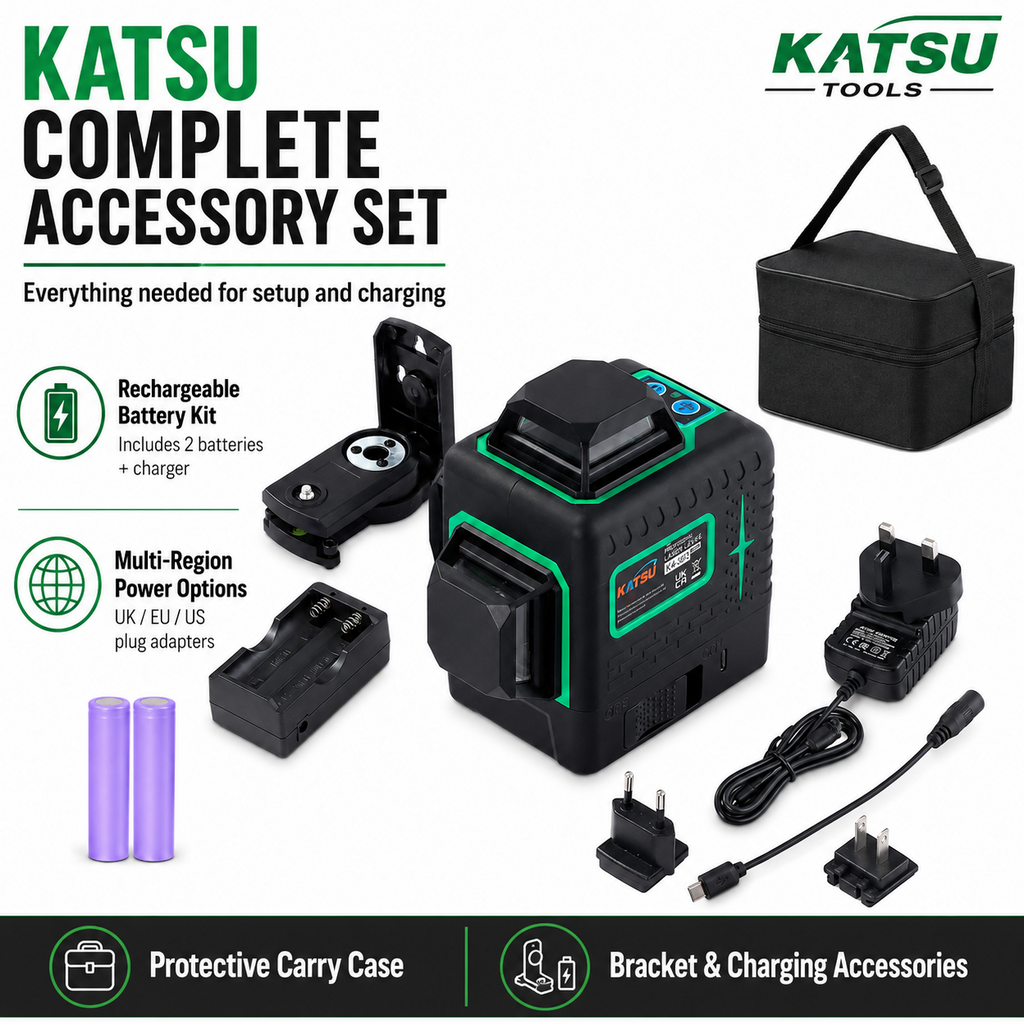

Dual Rechargeable Li-ion Batteries: Supplied with 2 high-capacity rechargeable lithium-ion batteries, ensuring continuous, swappable power for 5 to 7 hours of non-stop onsite operation.
-
Integrated Secure Pendulum Lock: Designed with a heavy-duty mechanical pendulum lock switch that safely immobilizes the delicate internal leveling core to prevent damage during transit.

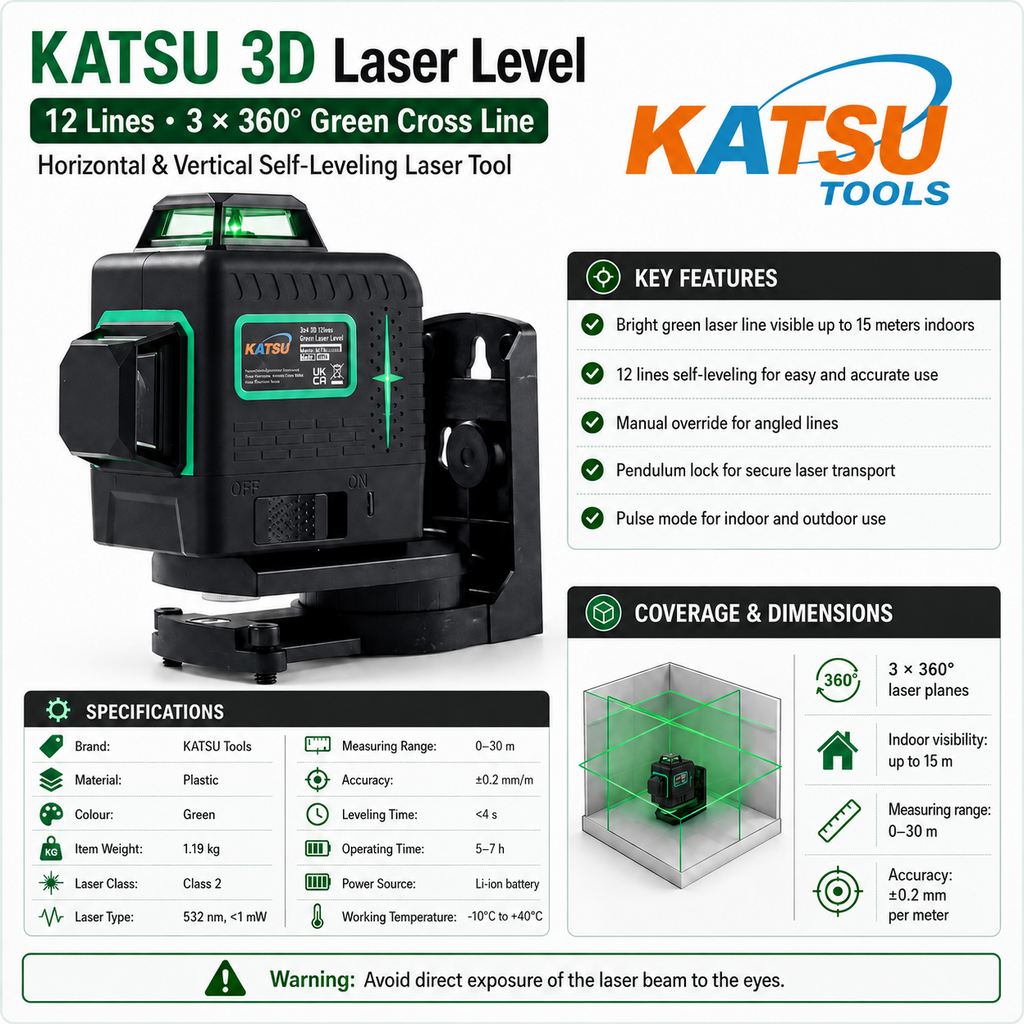

Technical Specifications
-
Brand: KATSU Tools
-
SKU: 311584
-
Laser Classification: Class 2 (Safety Certified)
-
Laser Type & Wavelength: 532 nm, < 1 mW
-
Total Measuring Range Capacity: 0 - 30 meters
-
Indoor Visibility Range: Up to 15 meters
-
Measuring Alignment Accuracy: ±0.2 mm/m
-
Automatic Leveling Settle Time: < 4 seconds
-
Continuous Operating Runtime: 5 - 7 hours
-
Power Source Configuration: Exchangeable Rechargeable Li-ion Battery (2 Batteries Pack)
-
Operational Temperature Threshold: -10°C to +40°C
⚠️ Important Operational Notes & Safety Warnings
-
🚨 STAGE 2 LASER EYE DAMAGE WARNING: This equipment utilizes a Class 2 laser system. Strictly avoid directing the laser beam toward human or animal eyes. Direct exposure to a 532nm beam can cause immediate optical strain or permanent eye damage. Never stare directly into the laser apertures.
-
🚫 Always Lock the Pendulum for Transport: When moving the laser level around the job site or packing it away, always slide the power switch to the fully locked position. Leaving the internal pendulum unlocked during transport can permanently misalign the gravity sensor and destroy the ±0.2 mm/m accuracy.
-
Battery Maintenance Protocol: To prolong the structural life of your 2 Li-ion batteries, charge them fully before first use. If the laser level is going to be stored unused for more than a month, remove the lithium battery pack from the tool chamber to prevent micro-drain or accidental leakage.
