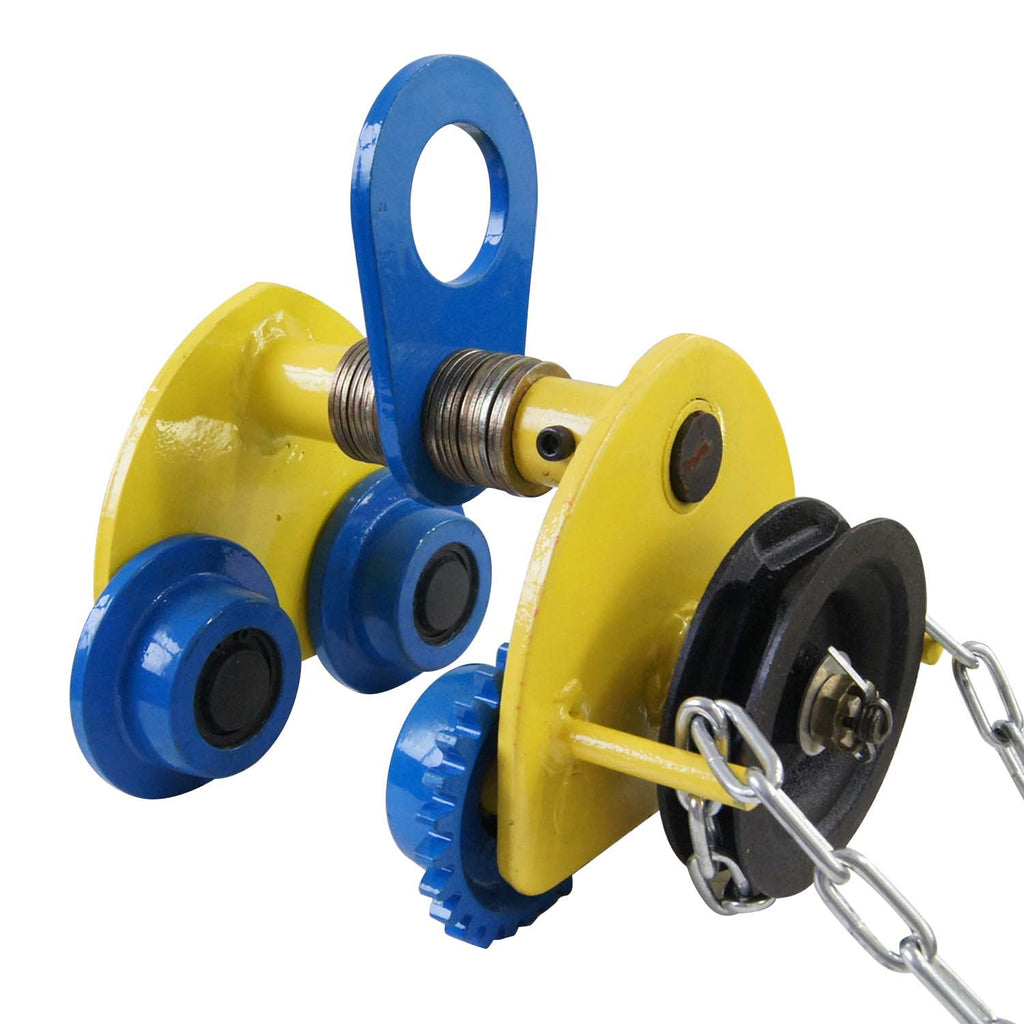

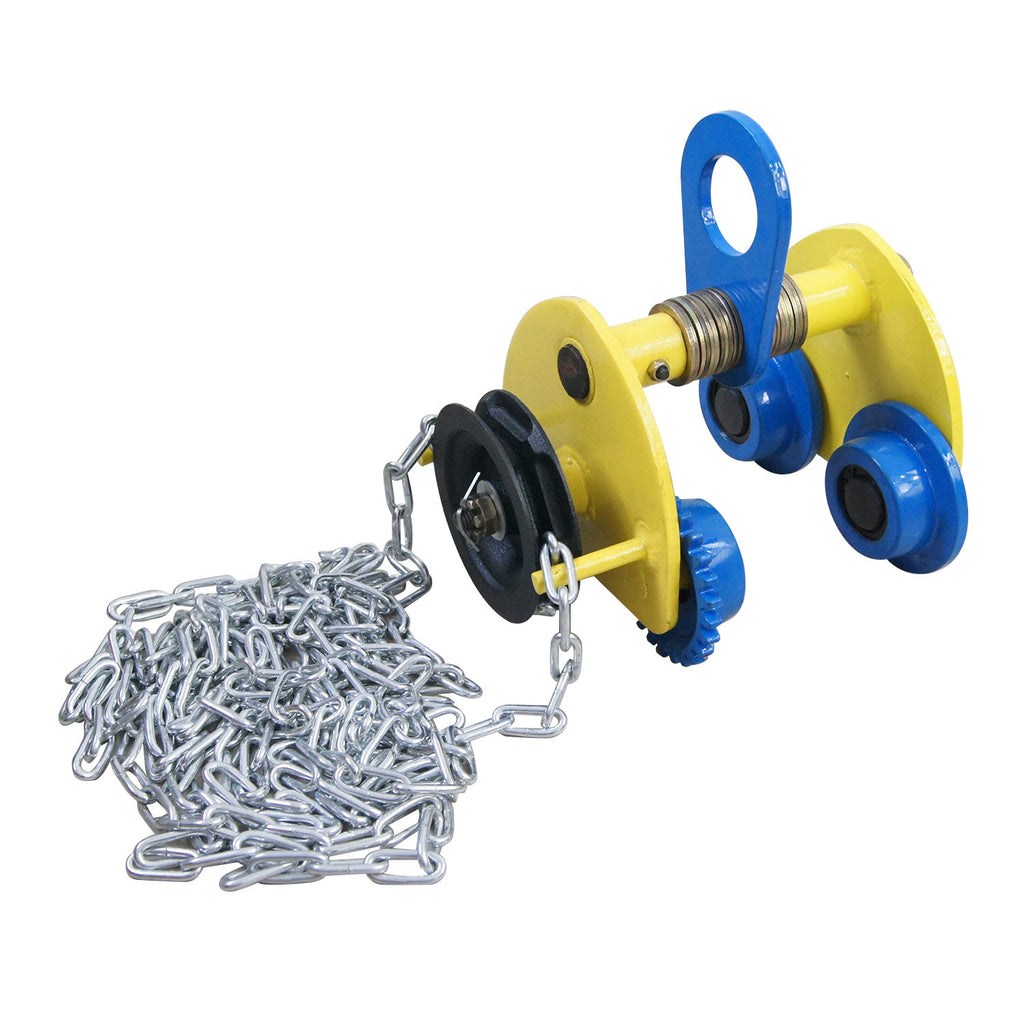

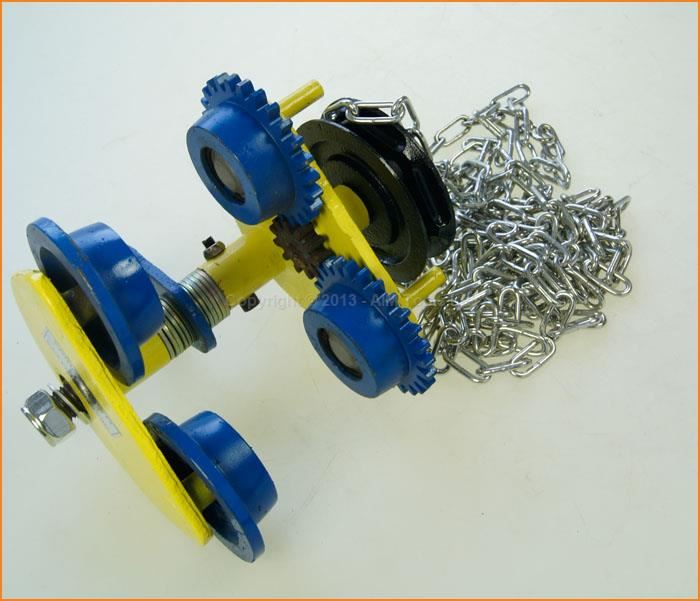

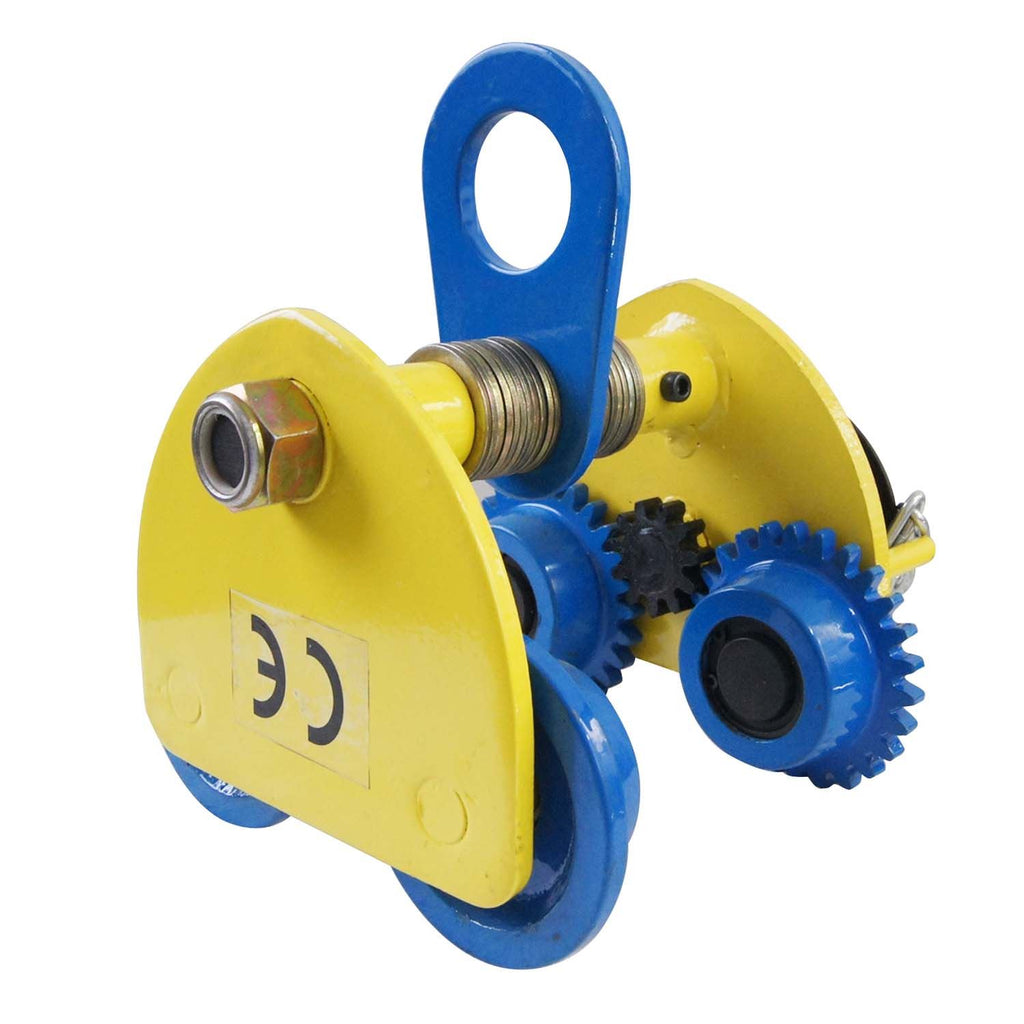

Suitable for use with lever hoists or chain blocks.
Designed for mounting onto an I-beam to allow load to be maneuvered sideways.

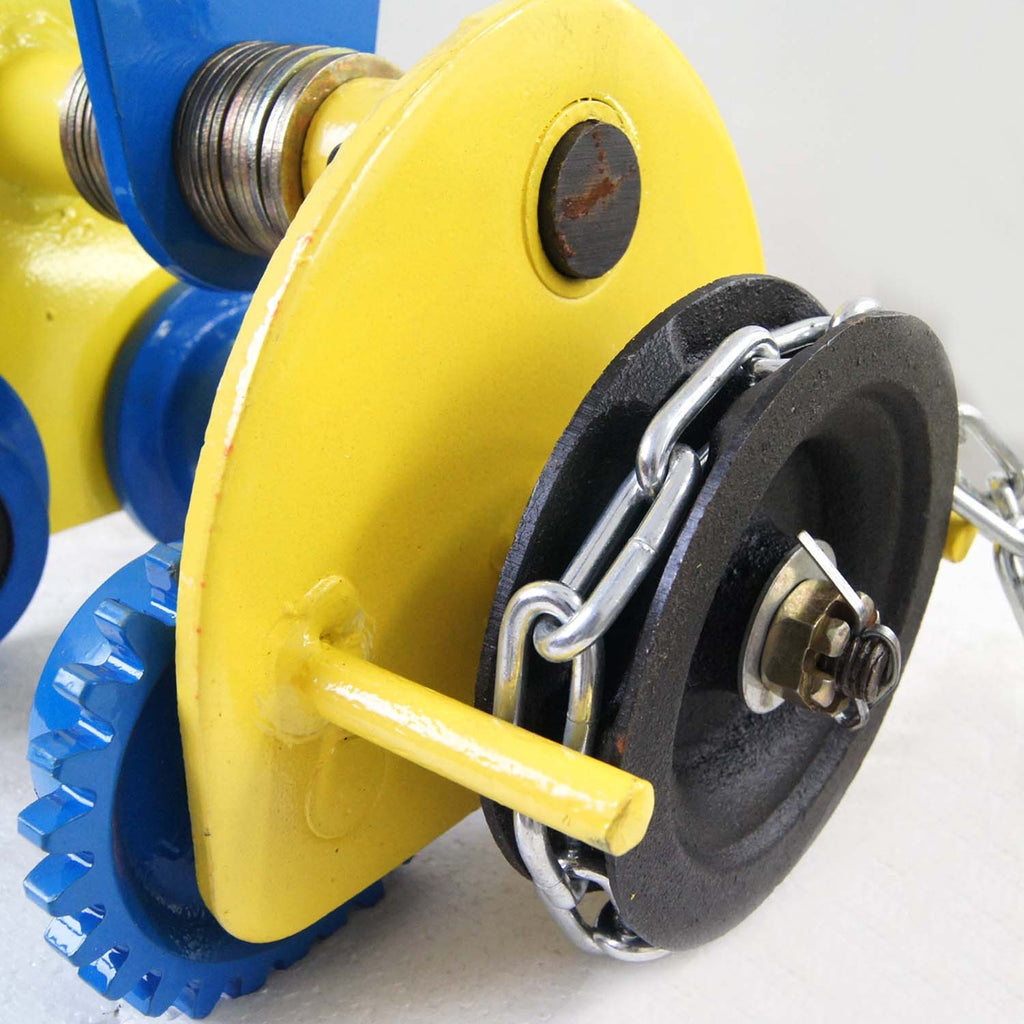

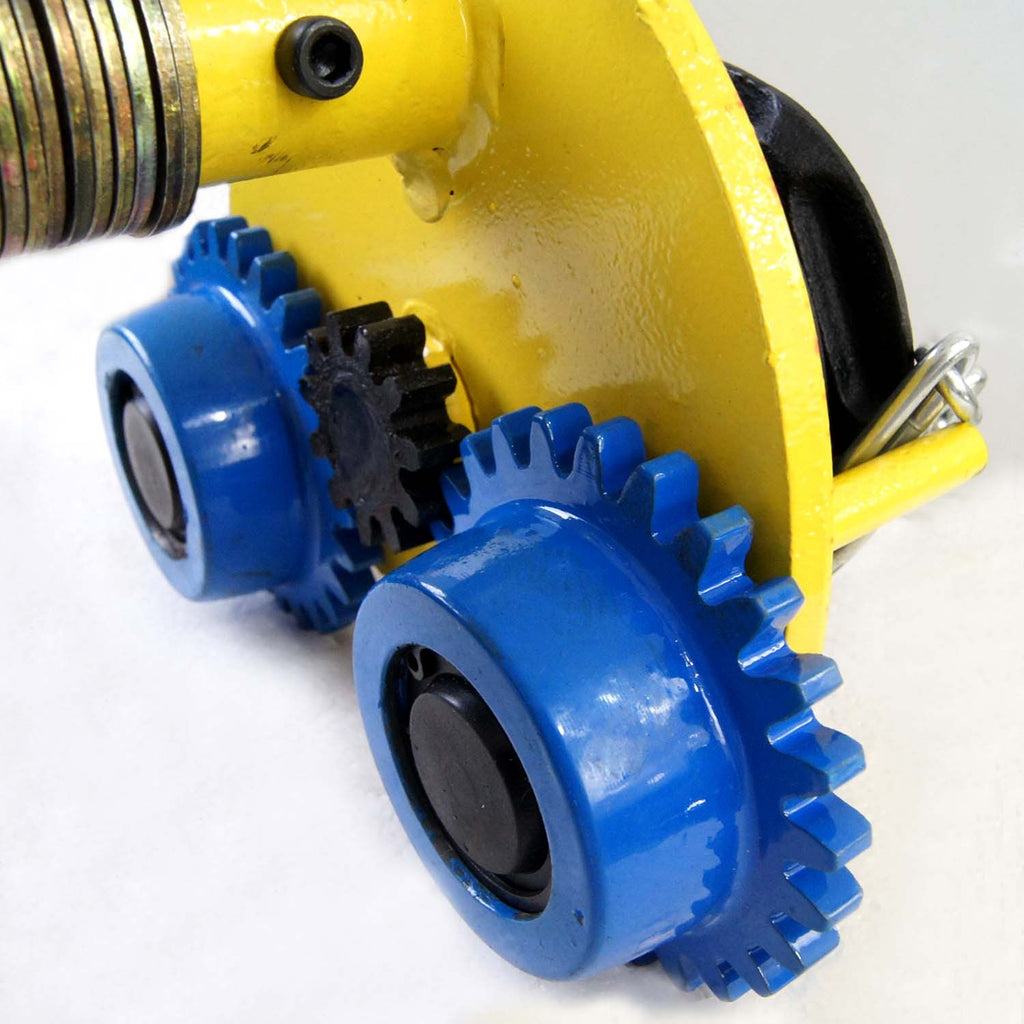

Incorporates wheel guards to prevent contact with other trolleys mounted on same load bearer.

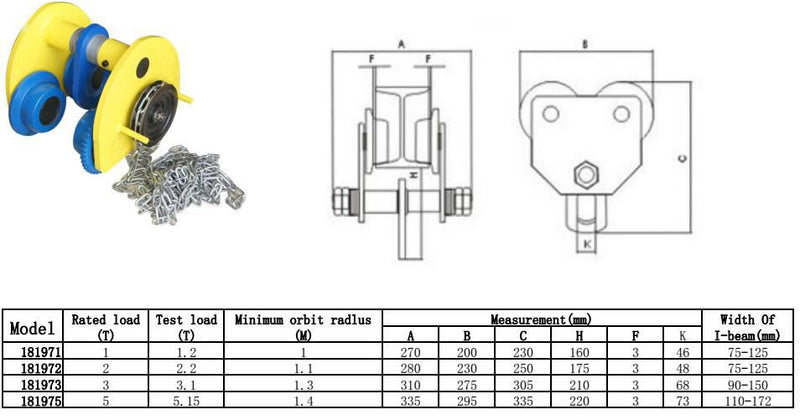

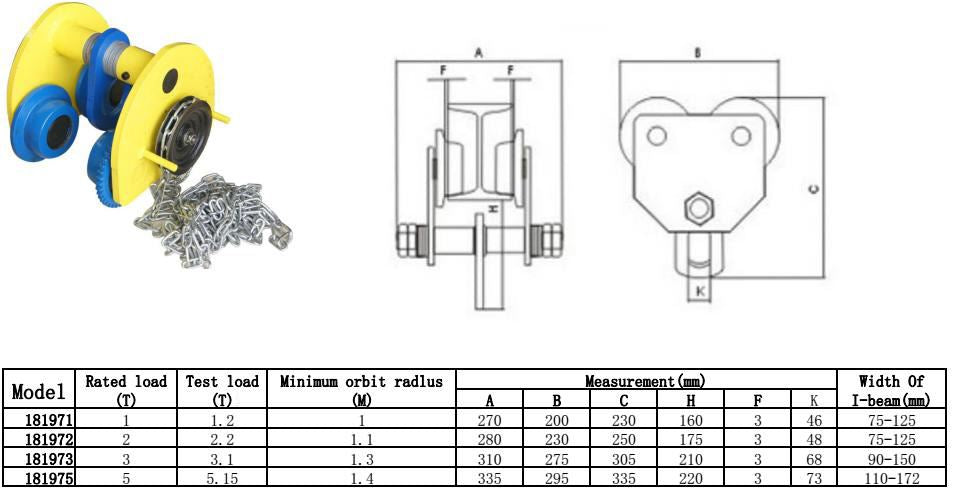

1Ton
- Rated Load :1T
- Test Load: 1.2KN
- Standard Working Height: 3 m
- Min.Orbit Radians: 1.1m
- I-beam: 80-168mm
2Tons
- Rated Load :2T .
- Test Load:2.25KN.
- Standard Working Height :3m.
- Min.Orbit Radiuns:1.1m.
- I-beam:80-168mm.
- Main Sizes:318*273*236mm.
3Tons
- Rated Load :3T .
- Test Load:3.25KN.
- Standard Working Height :3m.
- Min.Orbit Radiuns:1.3m.
- I-beam:88-168mm.
- Main Sizes:340*320*295mm.
5Tons
- Rated Load :5T .
- Test Load:5.25KN.
- Standard Working Height :3m.
- Min.Orbit Radiuns:1.4m.
- I-beam:100-170mm.
