KATSU Tools Electric Hoist Lift Single Fall 250KG (18M) Double Fall 500KG (9M) 230V Overhead Wire Hoist Remote Control Garage Auto Shop Overhead Lift 181316
Product Overview

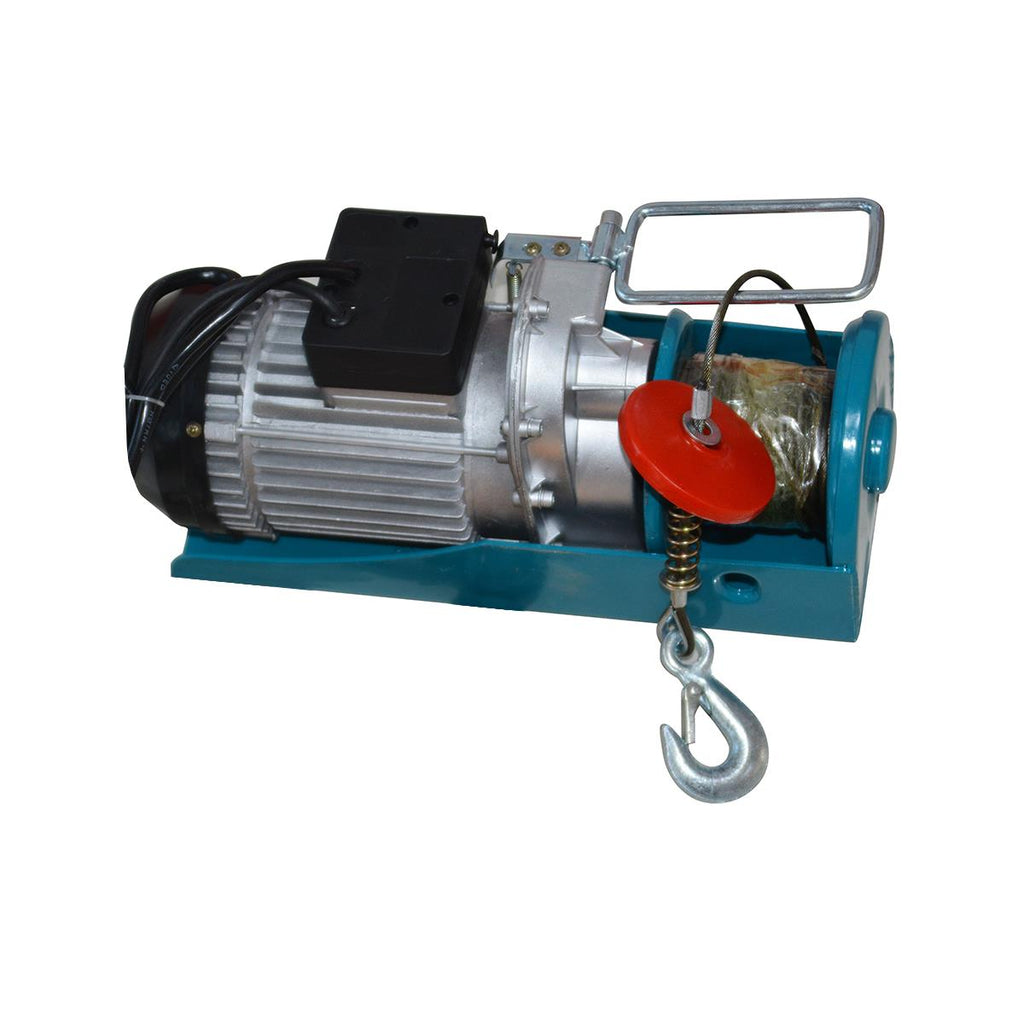

The KATSU Tools 1020W Overhead Electric Wire Hoist (181316) is a high-performance, fully automatic lifting system engineered for lifting heavy loads in automotive repair shops, warehouses, construction sites, and home garages. Powered by a 1020W copper wire motor, it effortlessly lifts up to 250KG on a single line (18M height) and up to 500KG on a double line (9M height) using the included pulley block hook.

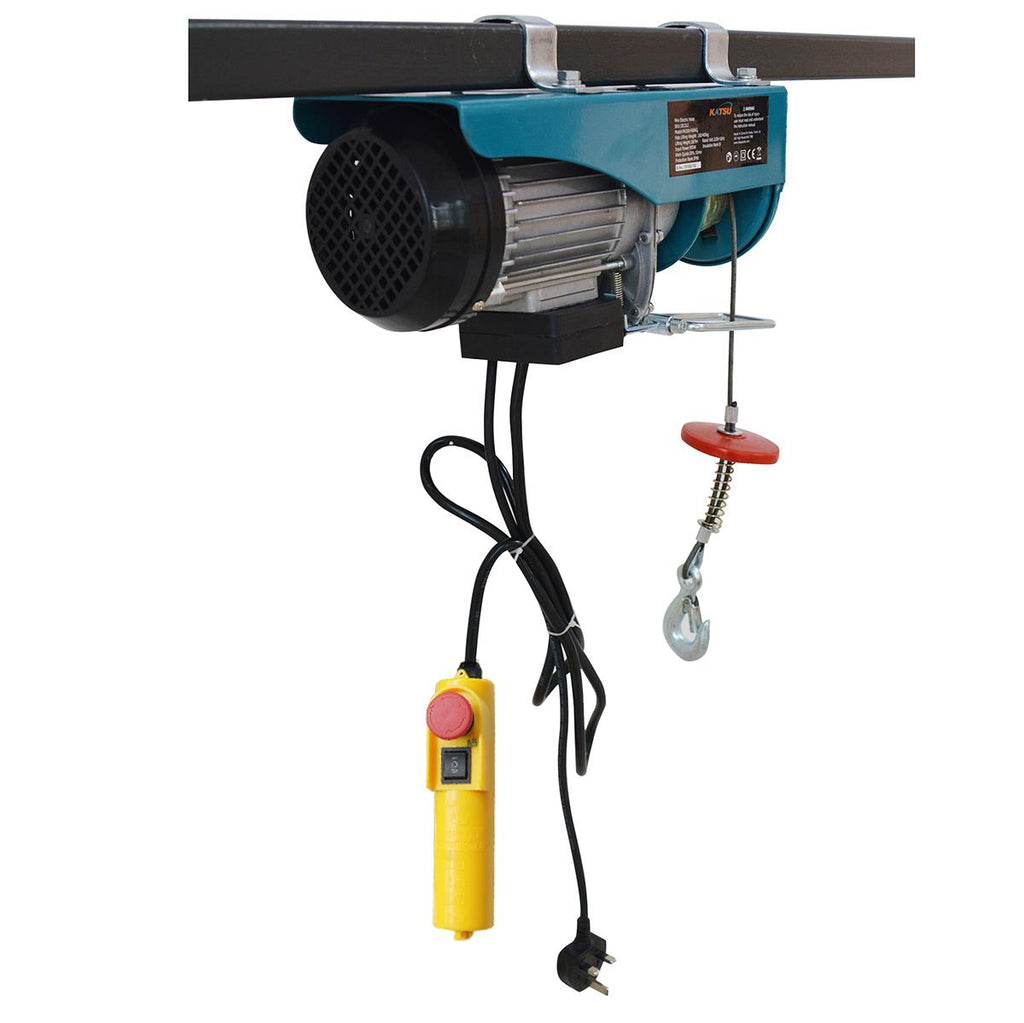

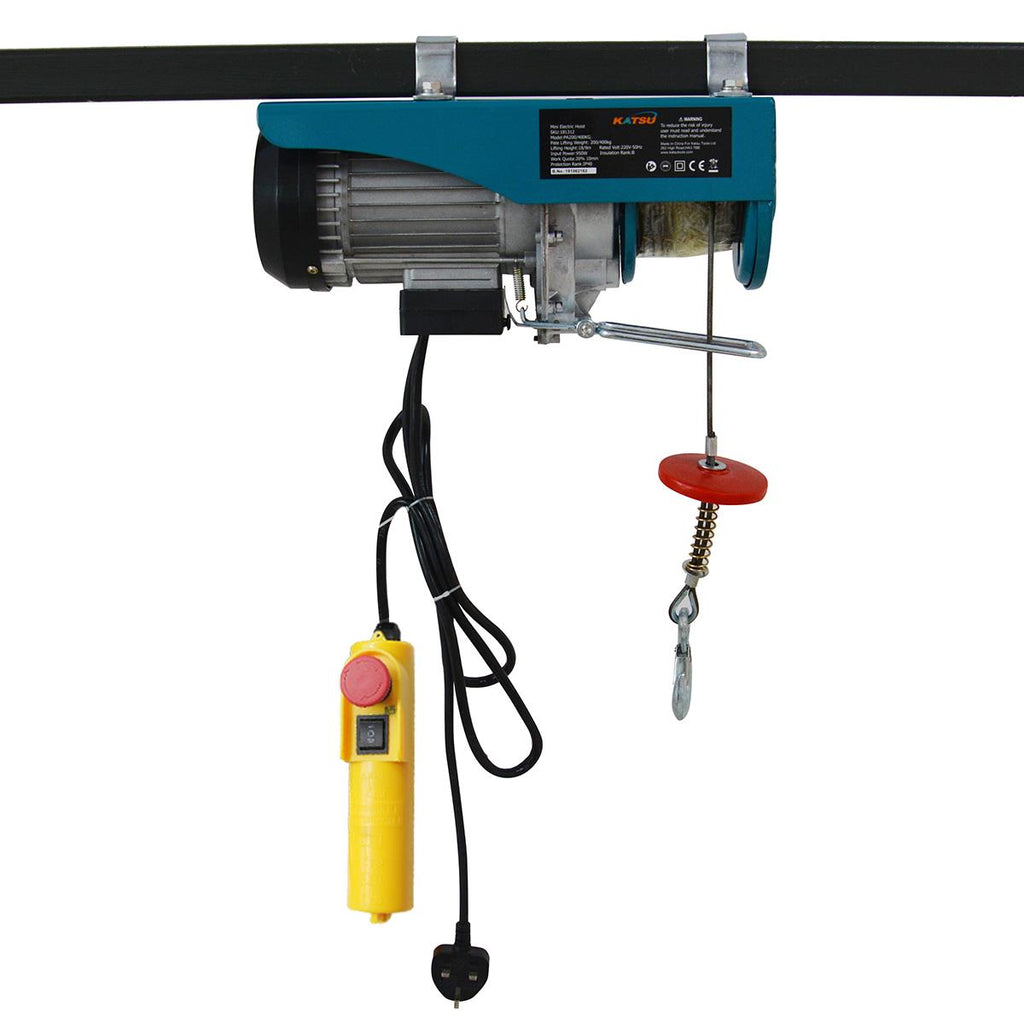

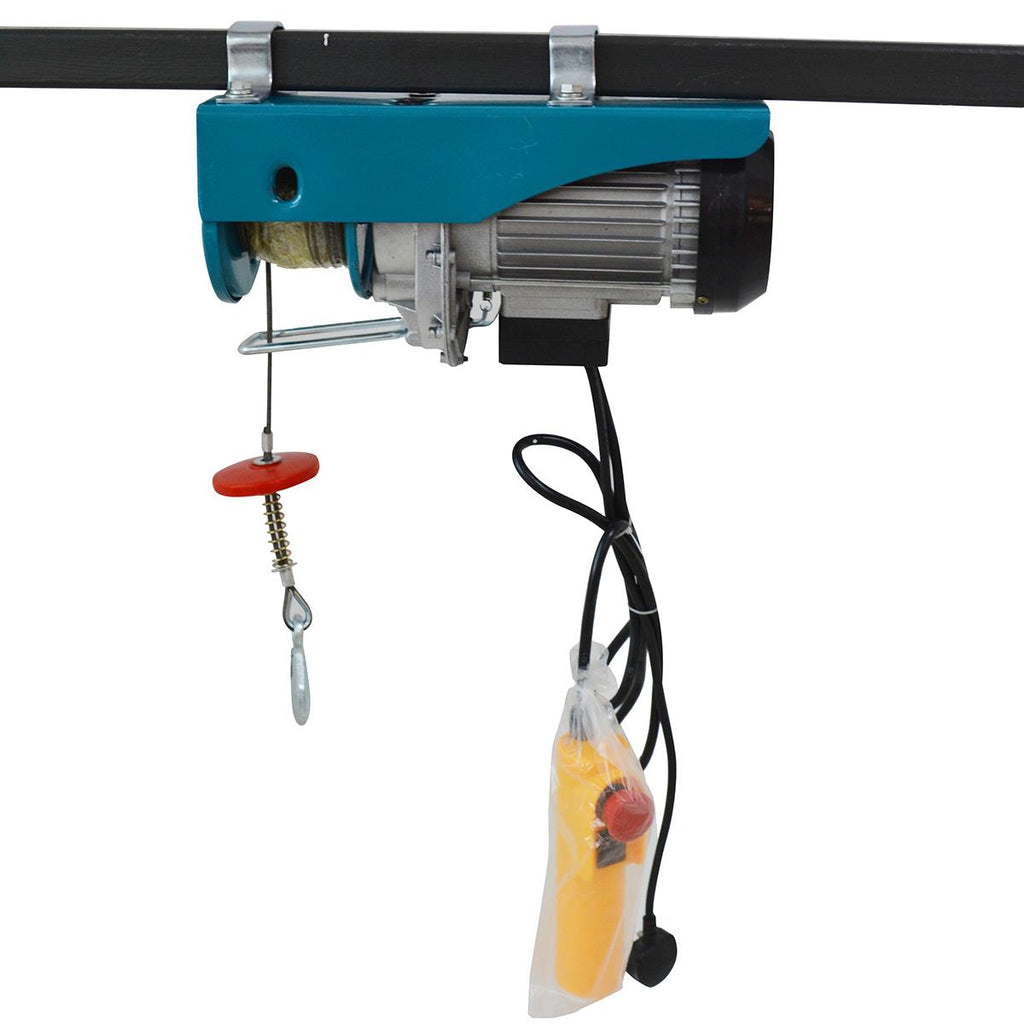

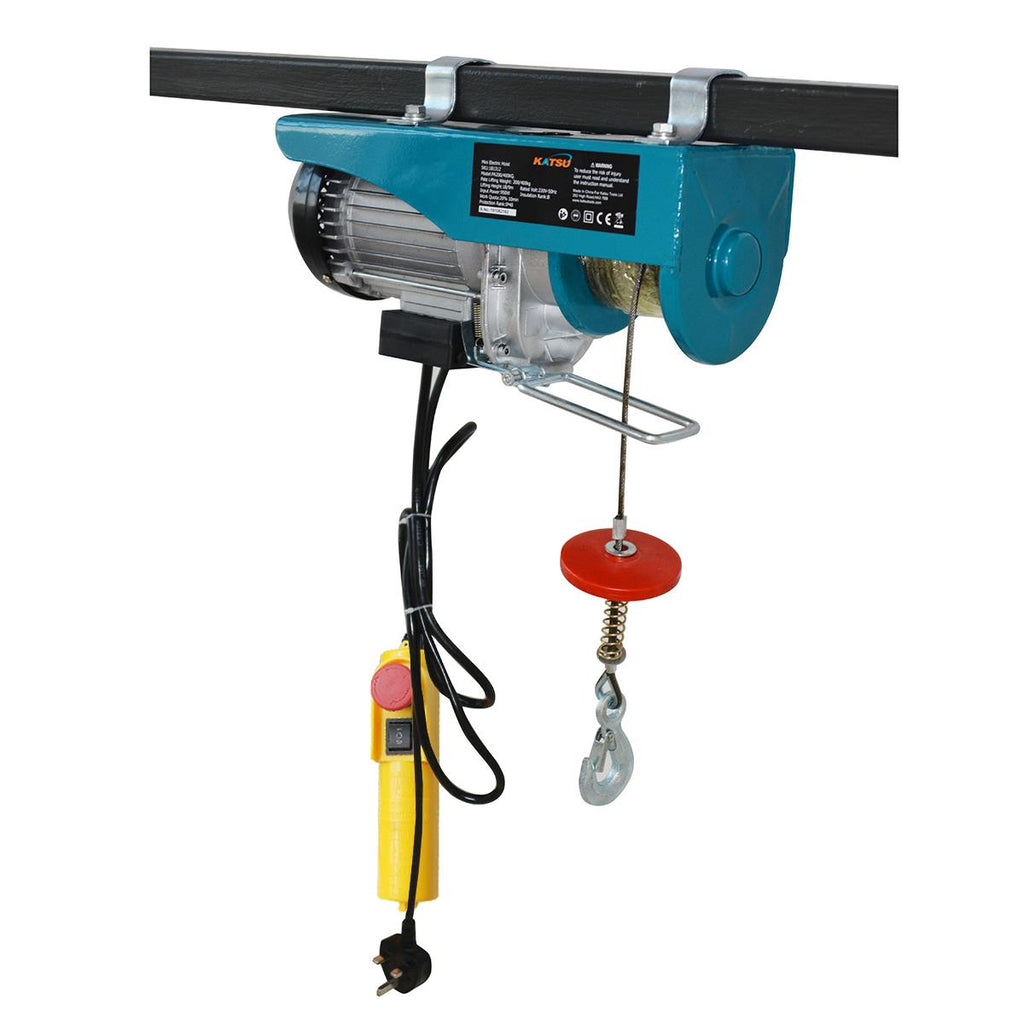

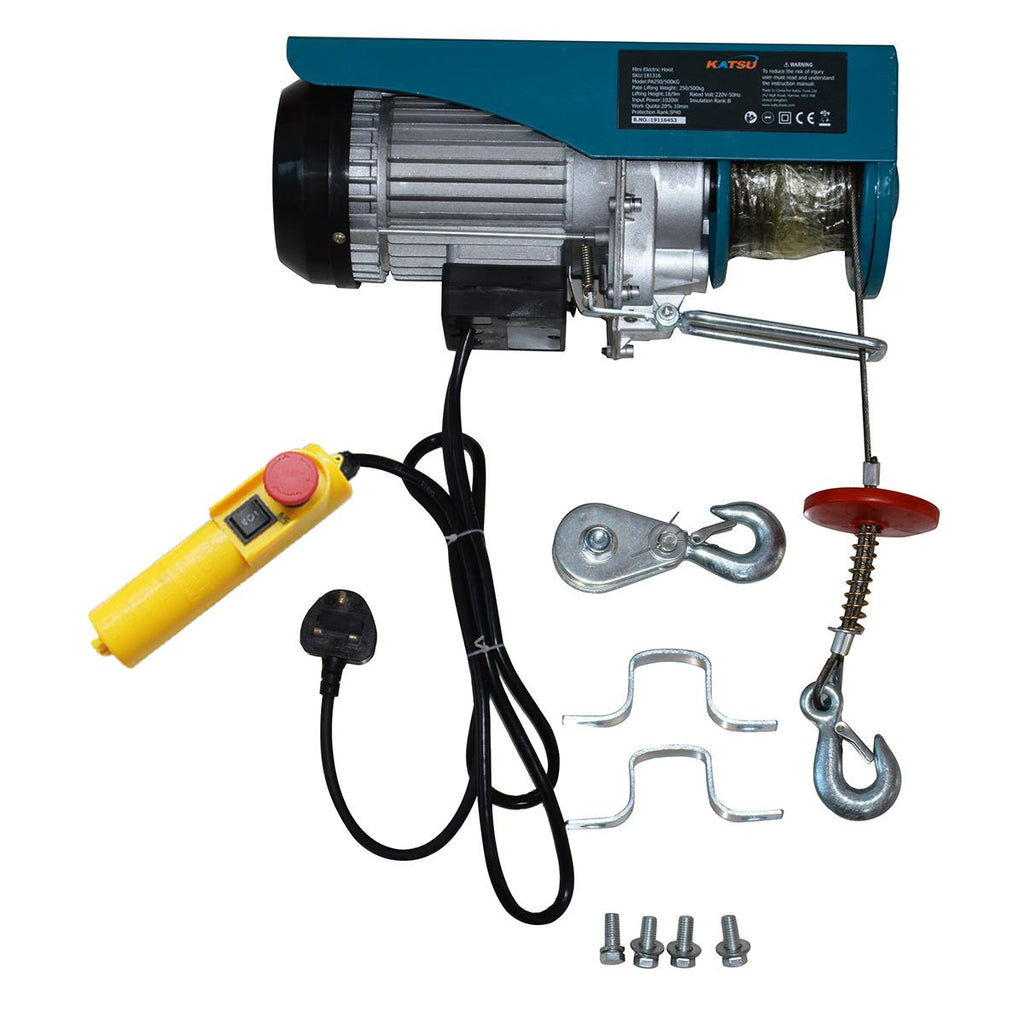

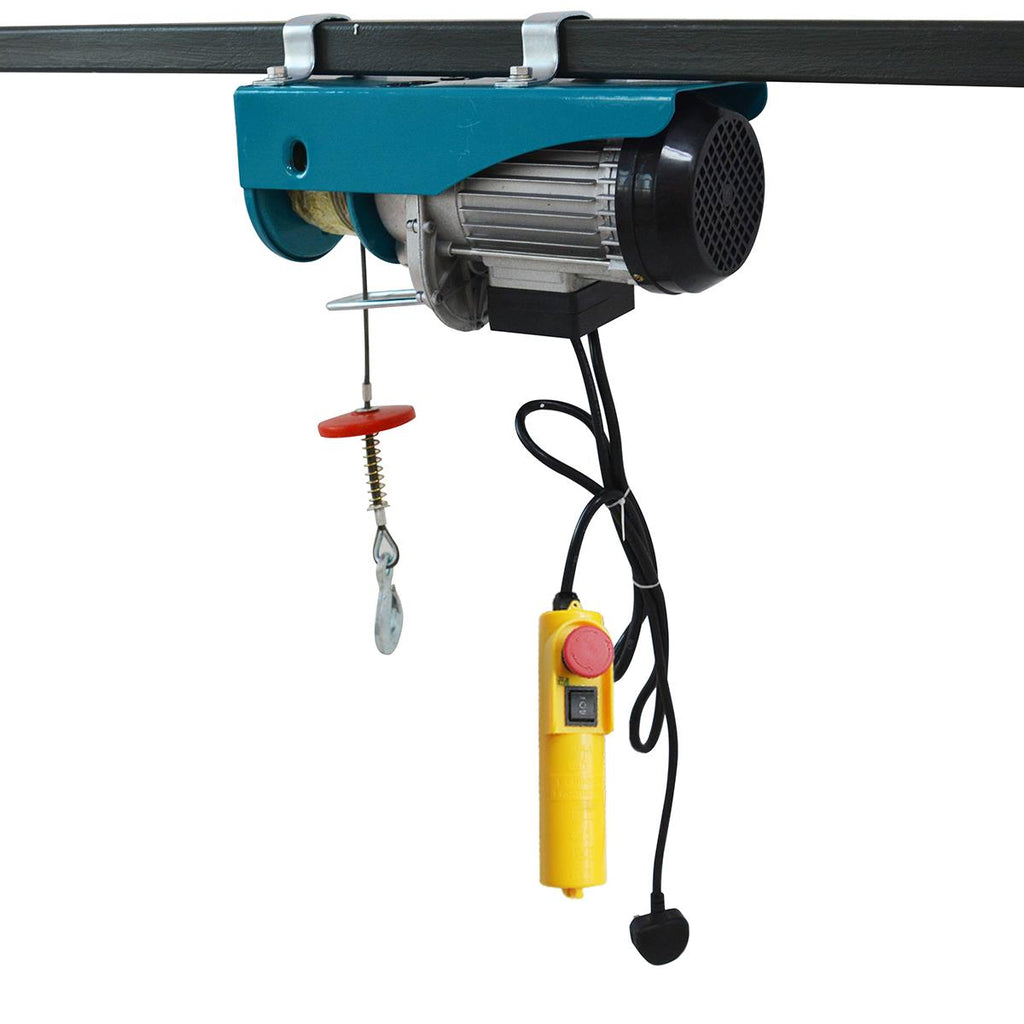

Equipped with an 18-metre anti-twist braided steel cable, a tethered remote control for safe distance operation, and an automatic limit stop mechanism, this electric hoist delivers safe, fast, and smooth overhead lifting (10m/min single fall). Designed to fit standard I-beams or swivel arms (65mm-110mm beam width), it comes complete with mounting brackets, CE safety certification, and a BS-approved UK 3-pin plug.
Features
-
1020W Pure Copper Motor: High-efficiency motor provides strong power and excellent heat dissipation with low energy consumption.
-
Dual Lifting Capacity (250KG / 500KG): Single-line mode lifts up to 250KG (18m height at 10m/min); double-line mode lifts up to 500KG (9m height at 5m/min).
-
Anti-Twist 18M Braided Steel Cable: High-tensile steel wire cable prevents rotation during lifting for enhanced overhead safety.
-

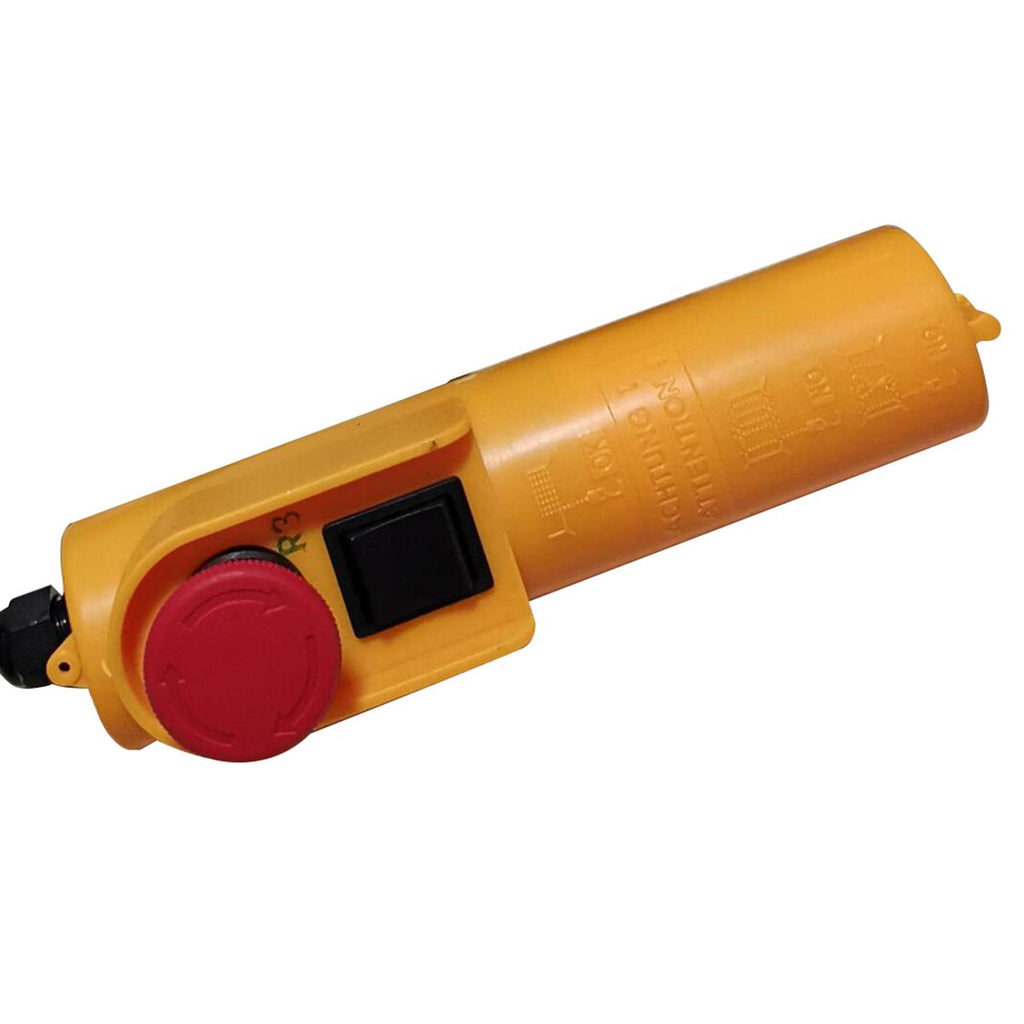

Tethered Remote Control: Ergonomic control pendant allows safe distance operation with power-up, power-down, and emergency stop features.
-
Heavy-Duty Weighted Hooks: Features a weighted drop-forged main hook and a sheaved pulley block hook for dual-line double-capacity lifting.
-
CE Certified: Complies with European safety regulations and comes fitted with a BS-approved UK 3-pin plug.
Technical Specifications
| Specification Parameter | Performance Value |
| Brand | KATSU Tools |
| SKU | 181316 |
| Product Type | Overhead Electric Wire Rope Hoist |
| Motor Rated Power | 1020 W |
| Voltage / Frequency | 230V / 50Hz |
| Single Line Capacity & Height | 250 KG / 18 Metres |
| Double Line Capacity & Height | 500 KG / 9 Metres |
| Lifting Speed (Single Line) | 10 m/min |
| Lifting Speed (Double Line) | 5 m/min |
| Steel Cable Length | 18 Metres (Anti-Reverse Braided Steel) |

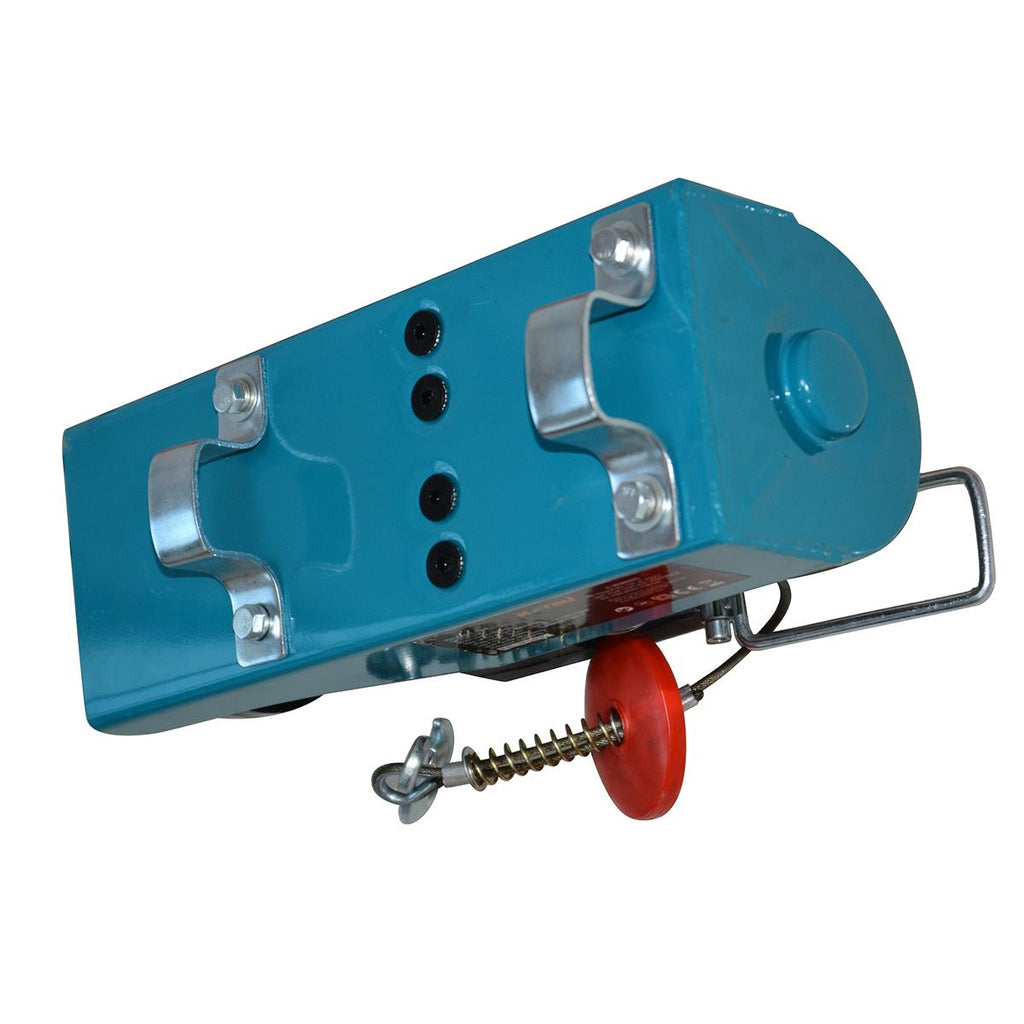

| Applicable Beam Width | 65 mm – 110 mm |
| Remote Cable Length | 1.7 m (Exposed cable: 1.4 m) |
| Dimensions | 45 x 16 x 27 cm |
| Net / Gross Weight | 17.5 kg / 19 kg |
| Safety Certifications | CE Certified with UK 3-Pin Plug |
Ideal Applications
-
Automotive Repair & Garages: Hoisting engines, gearboxes, car axles, and heavy workshop machinery.
-
Warehouse & Workshop Handling: Transporting heavy crates, timber stock, and materials to mezzanine floors or high racks.
-
Construction & House Renovation: Lifting building supplies, cement bags, steel beams, and equipment to upper levels.
Operating & Care Guidelines
-
Strict Vertical Lifting Only: Angled pulling, cable-stayed pulling, or altering the direction of the wire rope during operation is strictly prohibited.
-
Tightly Wound Wire Rope: Ensure the wire rope is wrapped tightly and neatly around the drum before lifting. Loose winding can lead to rope jamming, twisting, or cable snapping.
-
Intermittent Duty Cycle: Allow proper rest intervals for the motor during heavy lifting sessions to prevent thermal overload.
