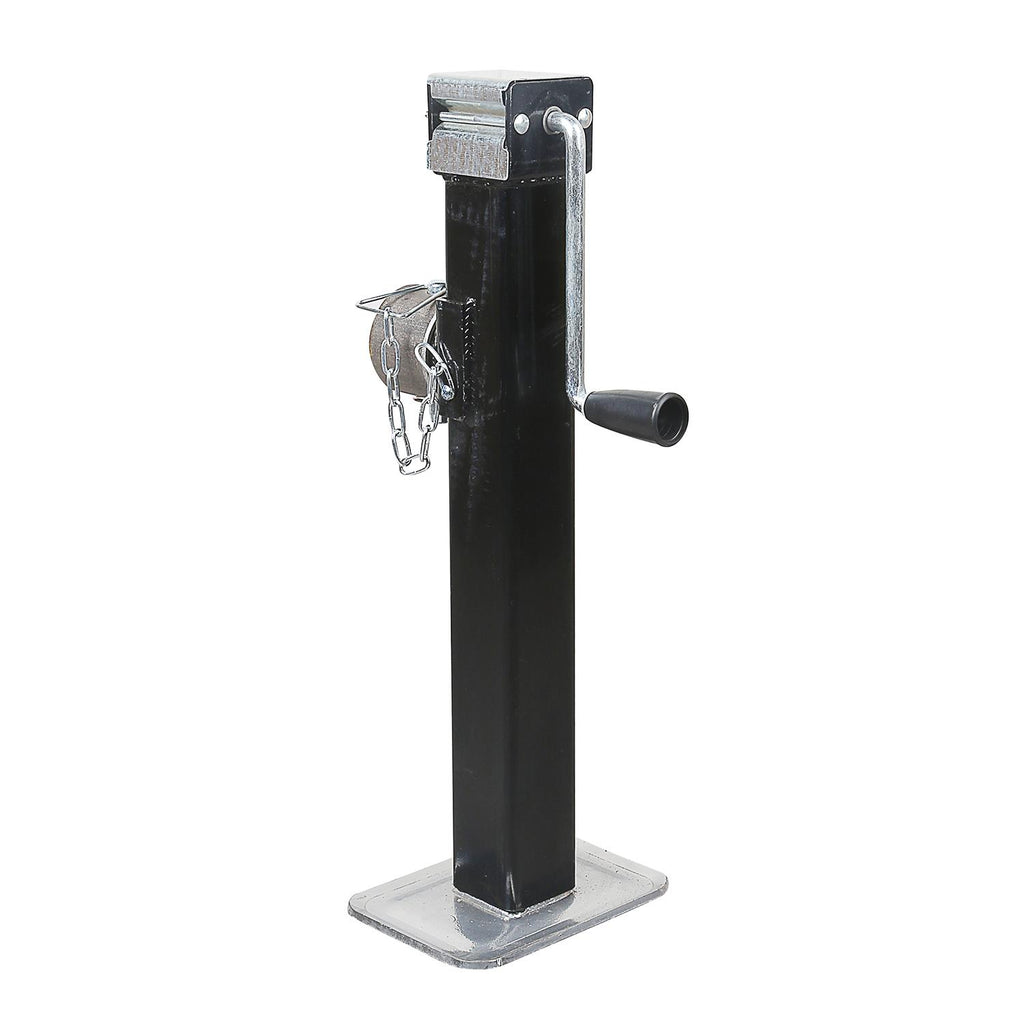

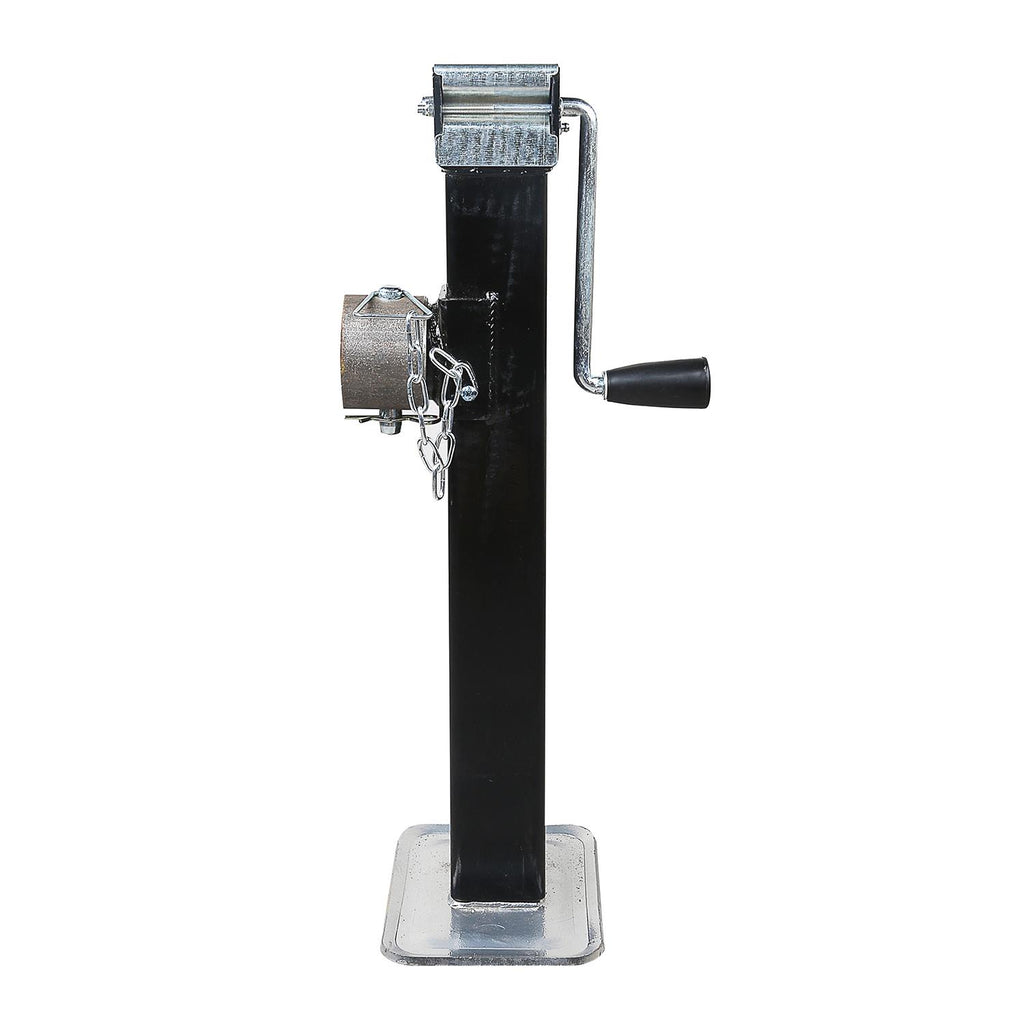

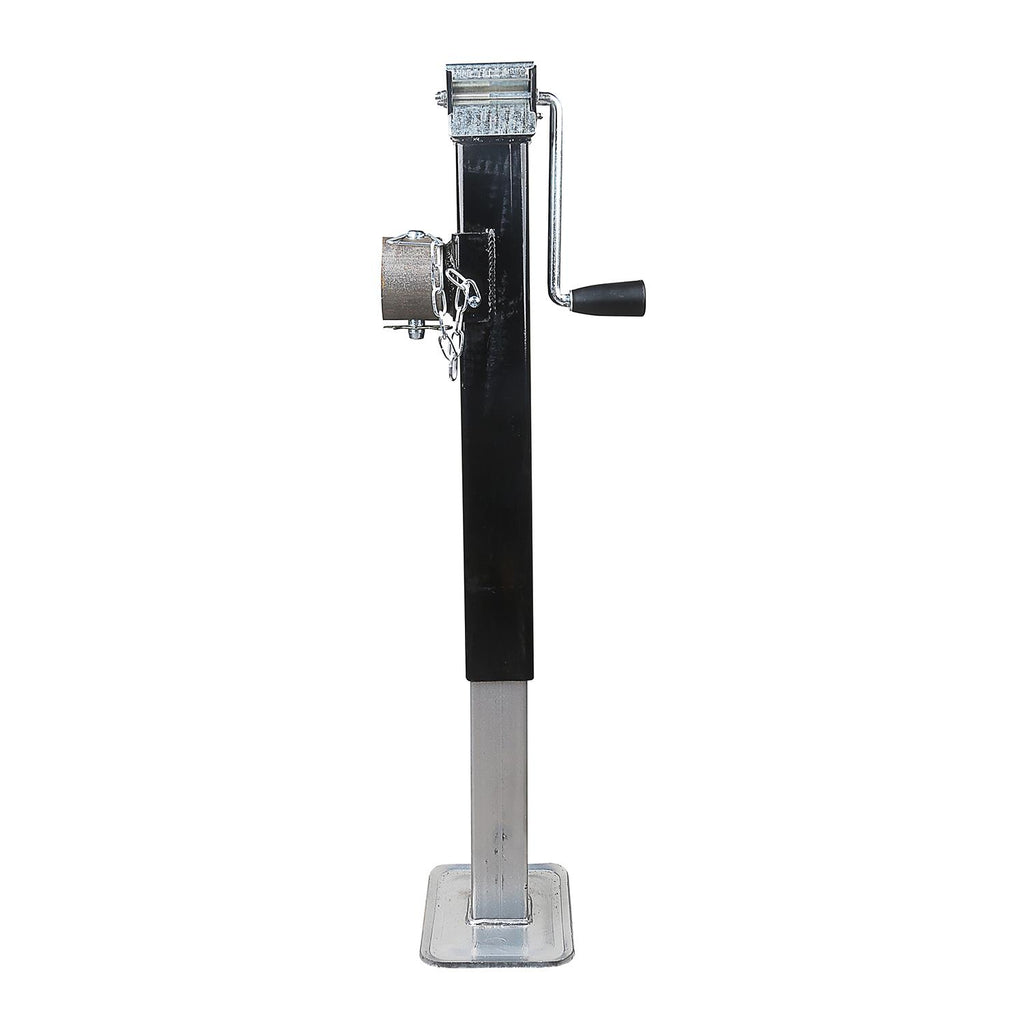

Features:
Swivel design, easy operation, corrosion resistance and secure install.
Widely used with a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer.
Heavy duty steel material and durable black powder coating, great stability and long lasting.
Swivel bracket allows jack to fully swing up.

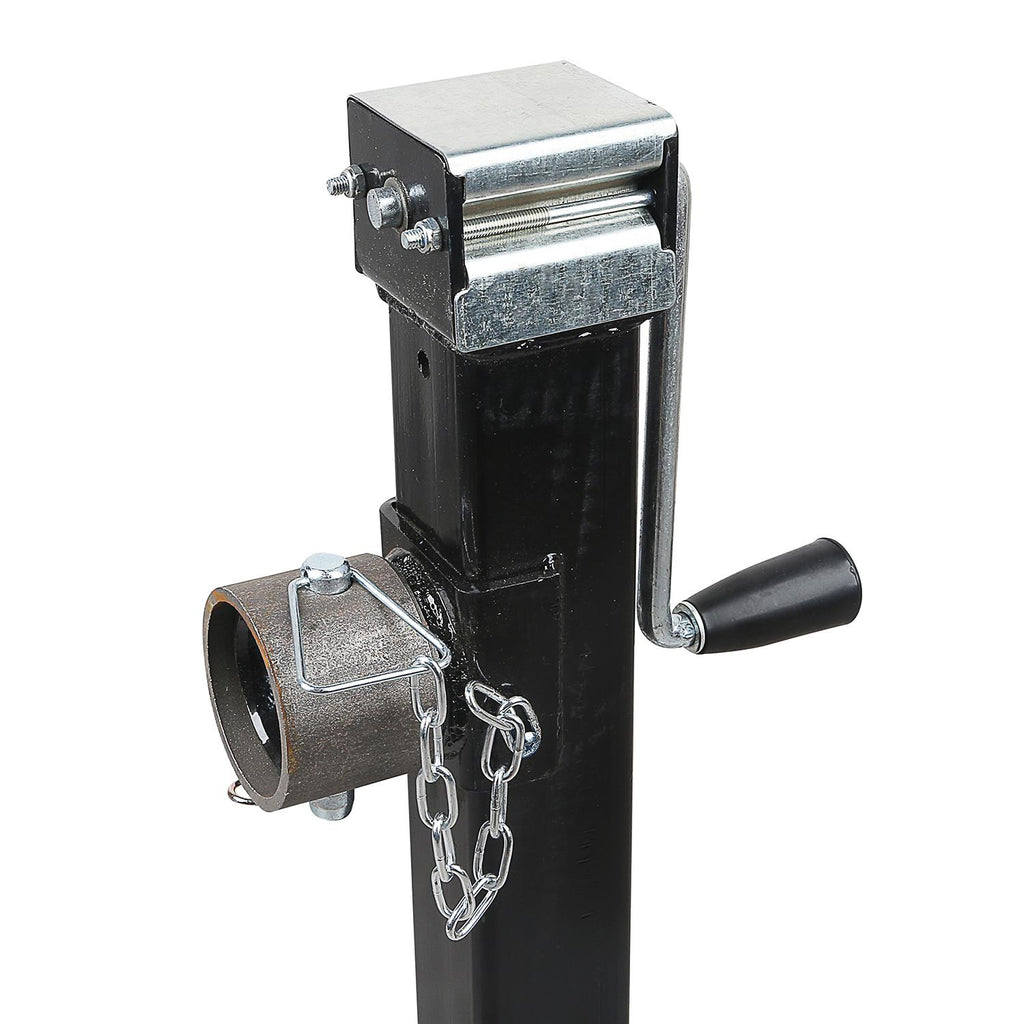

Features a pull pin to securely lock into place.
Designed to mount onto the trailer frame with a weld-on installation.
Side wind handle for greater flexible use and easy operation.
Widely used with a boat trailer, utility trailer, livestock hauler or recreational vehicle trailer.
Specifications:
Material: Steel
Color: Black
Finish: Powder coating
Max. Lift Capacity: 5000lbs
Max. Hold Capacity: 7000lbs
Vertical Travel: 16.5 Inches (420mm)
Minimum Extended Height: 580mm
Maximum Extended Height: 1000mm
Minimum height from bottom to installation center hole: 390mm
Maximum height from bottom to installation center hole: 810mm

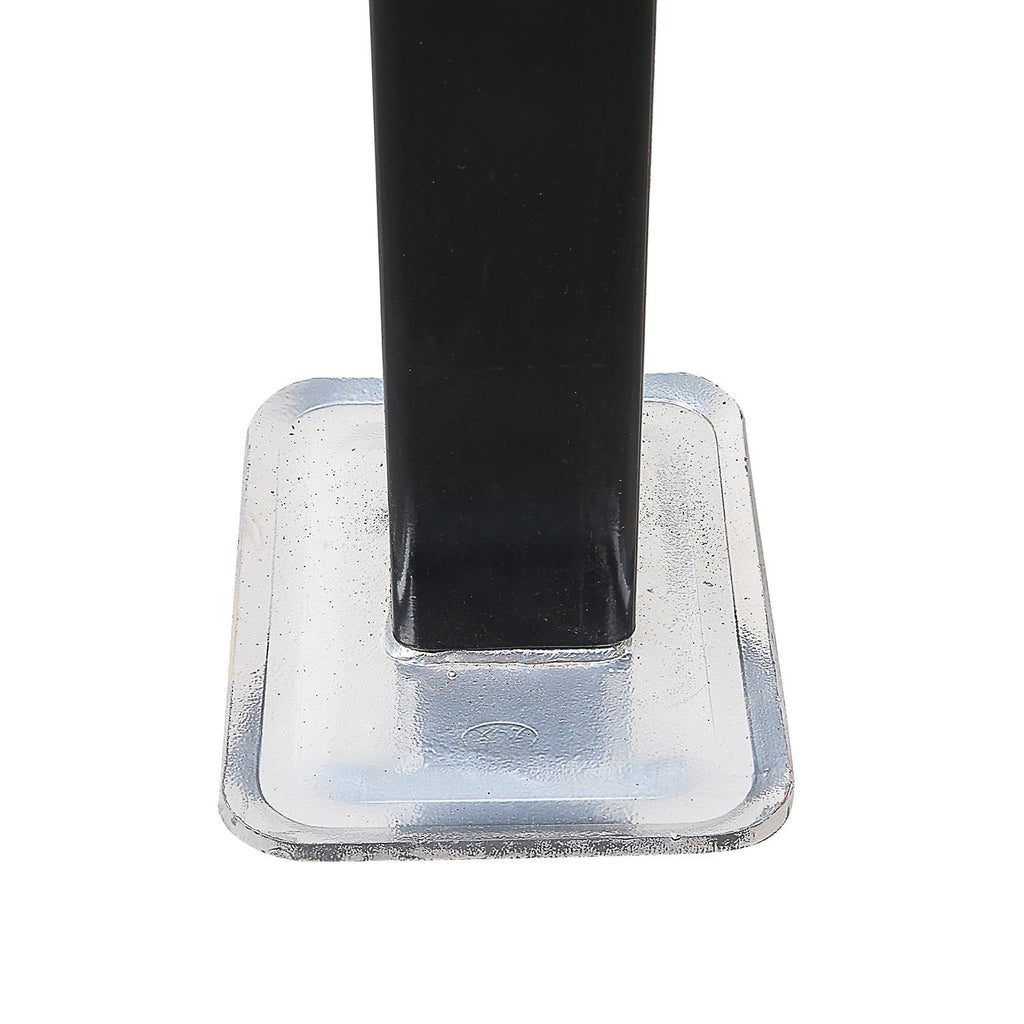

Foot Plate Size: 150mm x 200mm
Outer Tube Size: 65.5 x 65.5 x 3.5 mm
Inner Tube Size: 56.5 x 56.5 x 2.75 mm
Pull-pin Diameter: 16.5mm
Inner Welding Pipe Diameter: 64 x 5 mm
Outer Welding Pipe Diameter: 76 x 5 mm
Weight: 11kg
