KATSU Tools 3000kg Portable Pivot Car Lift Tilting Car Lifter Jack, Lifting Height 175 to 650mm 161143
Product Overview

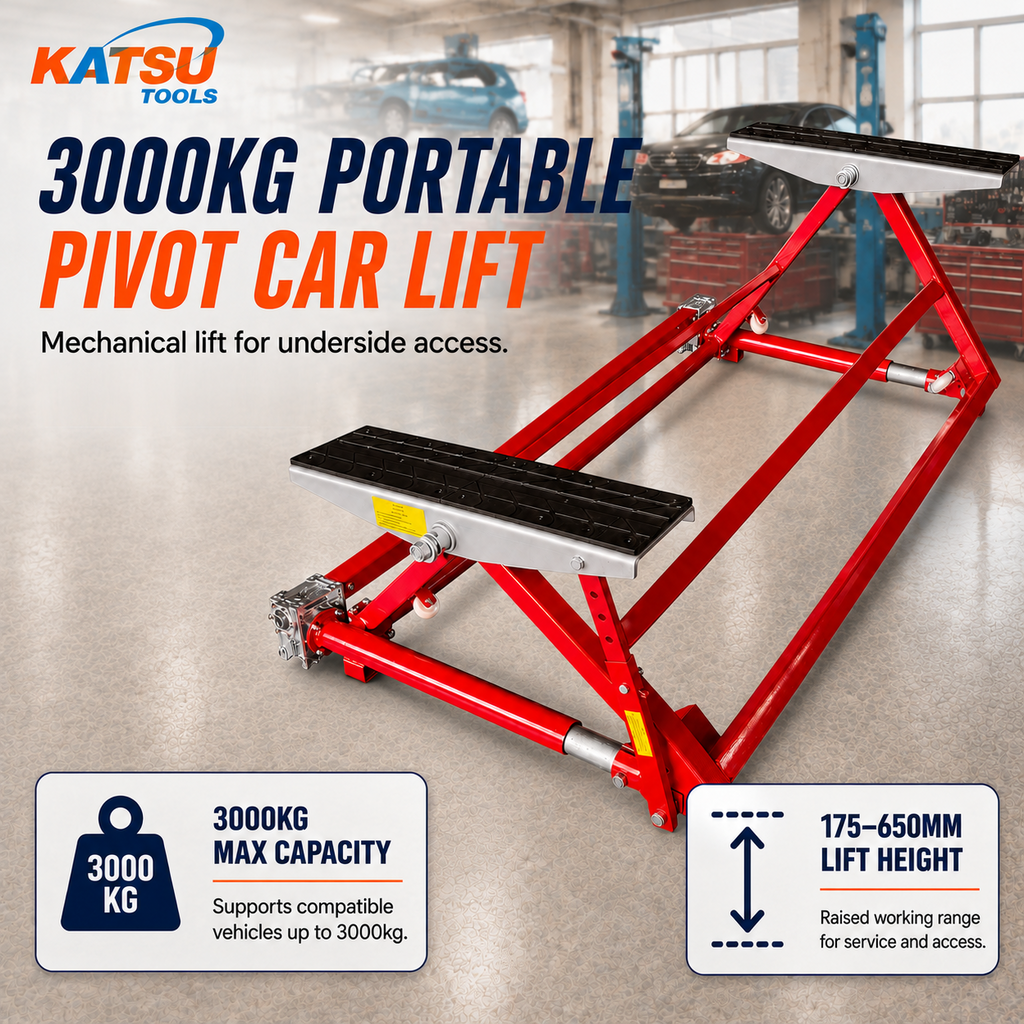

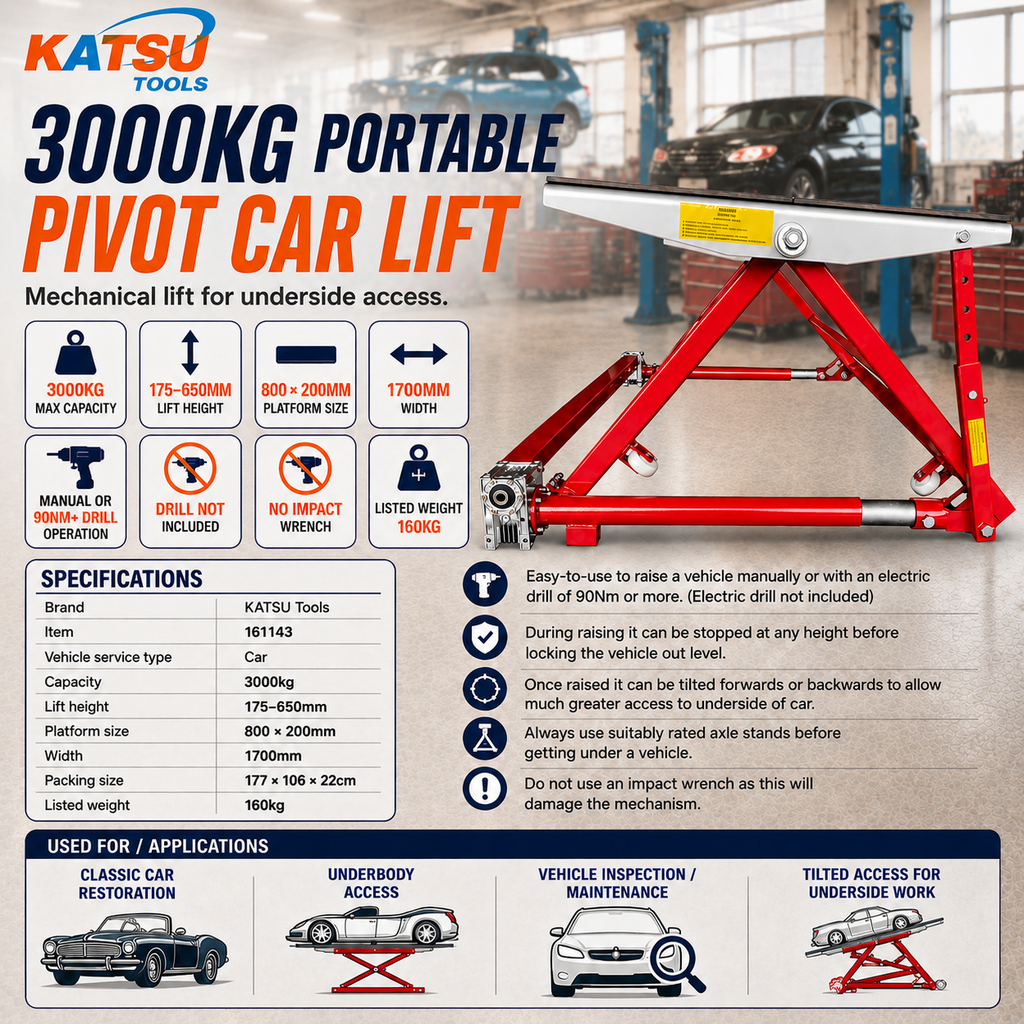

The KATSU Tools 3000kg Portable Pivot Car Lift (161143) is an extra-heavy-duty, portable vehicle lifting and tilting jack solution designed for classic car restoration, home garages, and professional automotive workshops. Delivering a massive maximum lifting capacity of 3000kg (3.0 Tonnes), this lifter provides a wide operational height range from a low profile of 175mm up to 650mm.

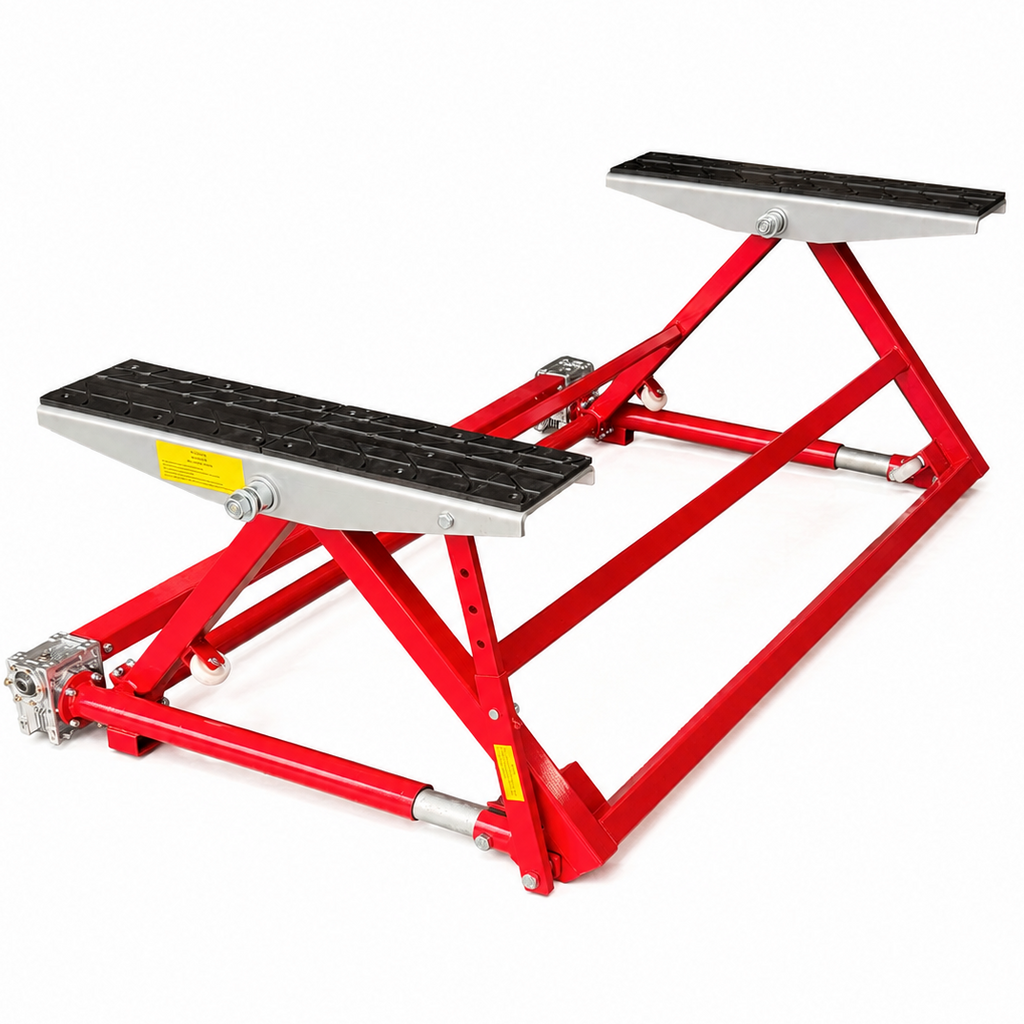

Built with a broad 1700mm overall width and dual 800 x 200mm lifting platforms, it easily accommodates heavier passenger cars, classic vehicles, SUVs, and light commercial vehicles. The mechanism can be operated manually or powered using an electric drill rated at 90Nm or higher. Once elevated, the vehicle can be locked at any height level and tilted forwards or backwards, providing unobstructed access to the underside for chassis repairs, exhaust servicing, and underbody restoration.
Features
-
3000kg Heavy-Duty Lifting Capacity: Safely hoists larger sedans, SUVs, classic automobiles, and light commercial vehicles weighing up to 3.0 Tonnes.
-
1700mm Broad Stance & Wide Platforms: Features a wide 1700mm frame and twin 800 x 200mm platforms for enhanced lifting stability across various vehicle tracks.
-

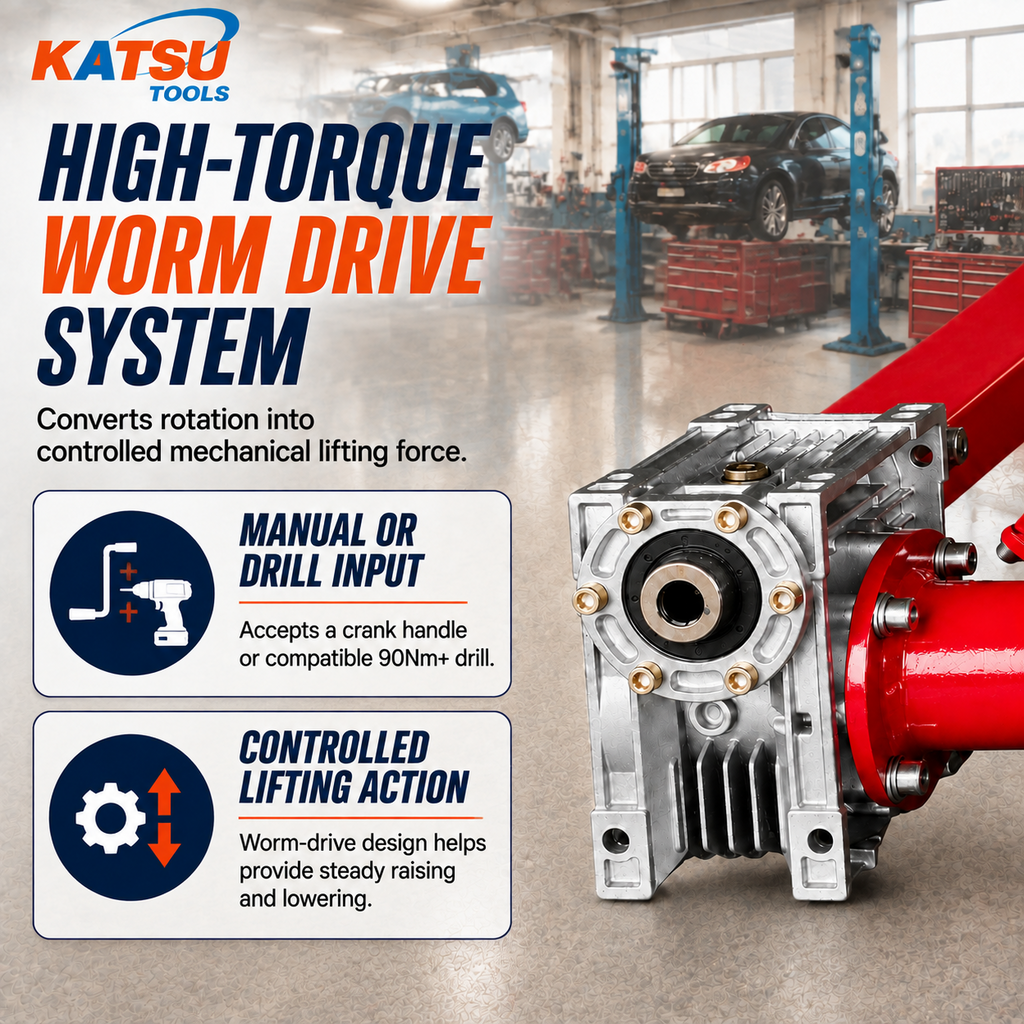

Flexible Dual Operation: Can be raised manually using the hand crank or powered effortlessly using an electric drill rated at 90Nm or above (drill not included).
-

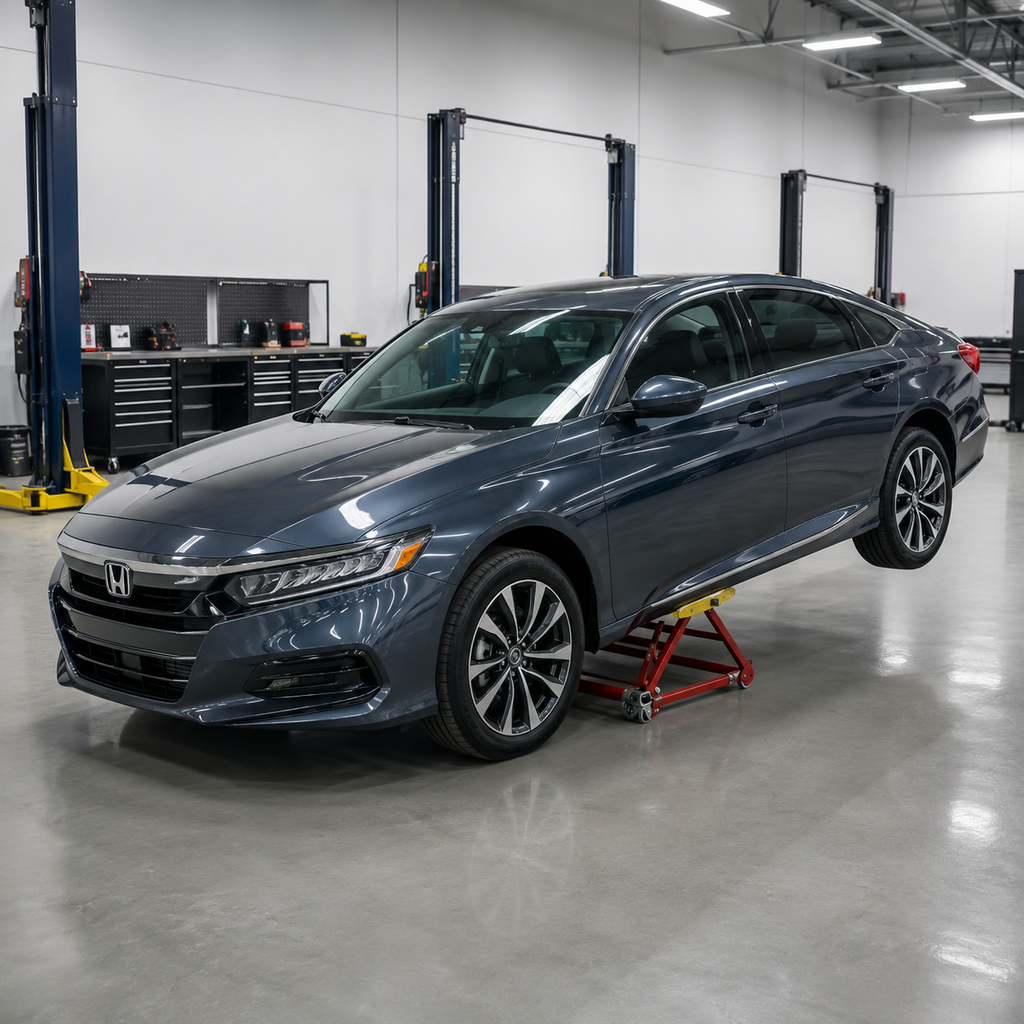

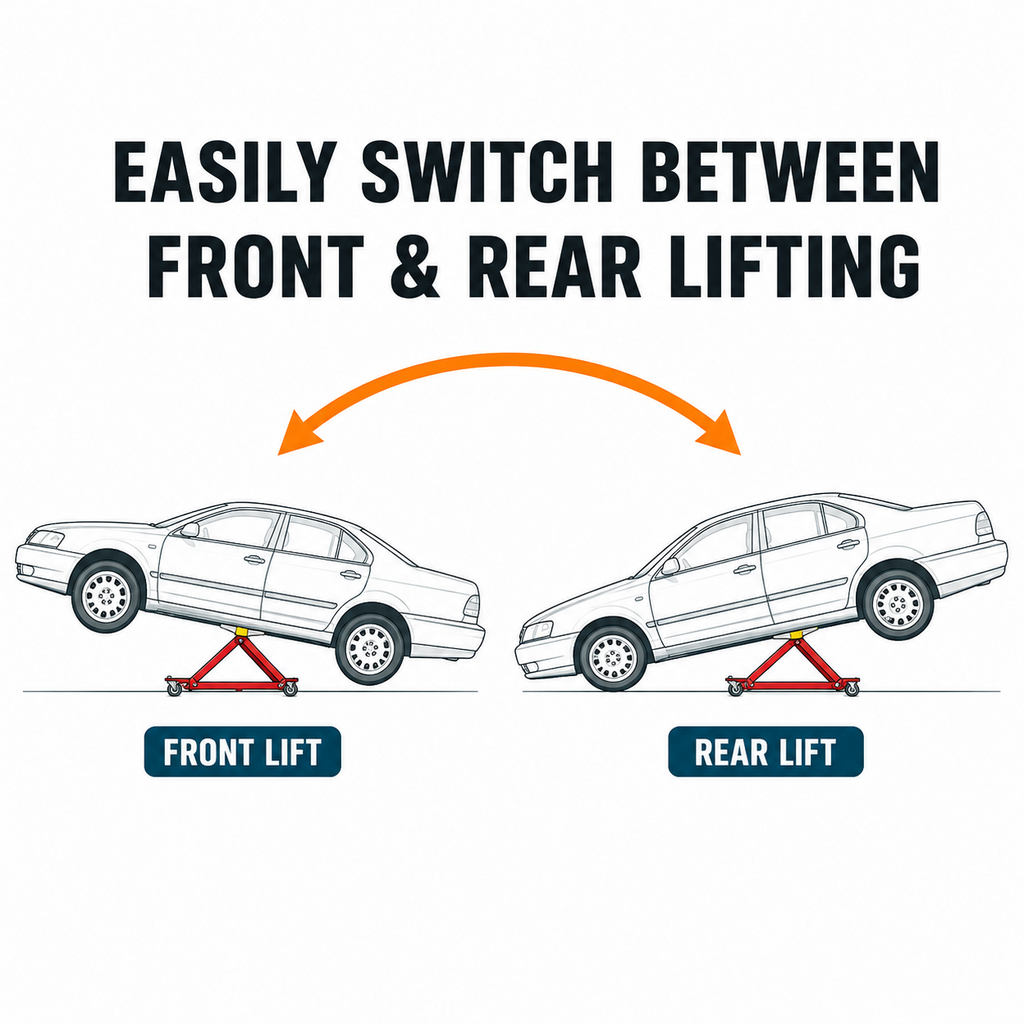

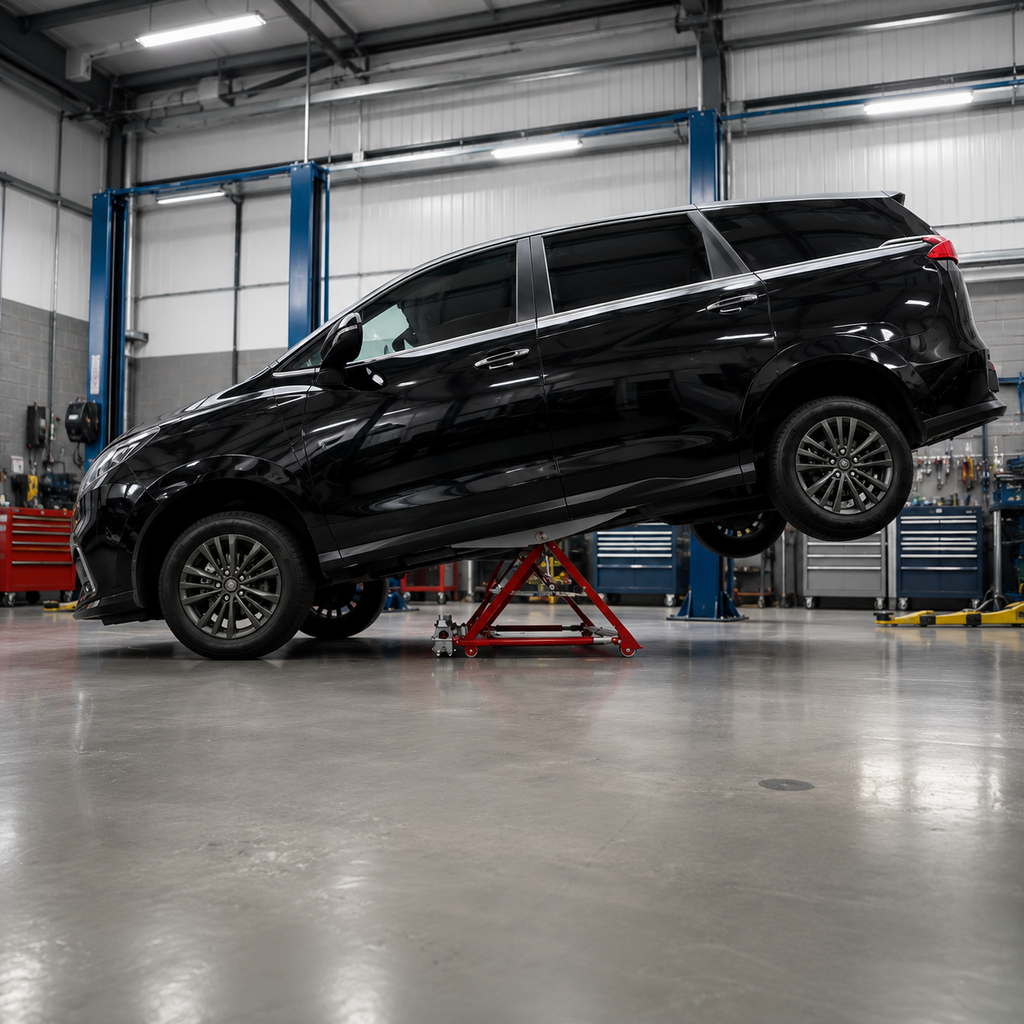

Tilting Function for Underside Access: Once raised to height, the vehicle can be tilted forward or backward to dramatically improve underbody workspace access.
-
Multi-Height Locking Mechanism: Allows safe stopping and locking at various lifting increments before leveling out.
-
Heavy-Duty Wooden Box Packaging: Shipped in a secure wooden crate (160kg total package weight) to protect the precision machinery during transit.
Technical Specifications
| Specification Parameter | Performance Value |
| Brand | KATSU Tools |
| SKU | 161143 |
| Product Type | Portable Pivot Car Lift & Tilting Jack |
| Maximum Lifting Capacity | 3000 kg (3.0 Tonnes) |
| Minimum Lifting Height | 175 mm |
| Maximum Lifting Height | 650 mm |
| Platform Size (Each Side) | 800 x 200 mm |
| Overall Frame Width | 1700 mm |
| Required Electric Drill Torque | 90 Nm or Higher (Electric Drill NOT Included) |
| Tilting Function | Forward & Backward Underbody Tilting |
| Packaging Type | Heavy-Duty Wooden Box |
| Package Dimensions | 177 x 106 x 22 cm |
| Package Weight | 160 kg |
Ideal Applications
-
Classic & Heavy Car Restoration: Ideal for full vehicle restorations, heavy classic cars, SUVs, and passenger vehicles.
-

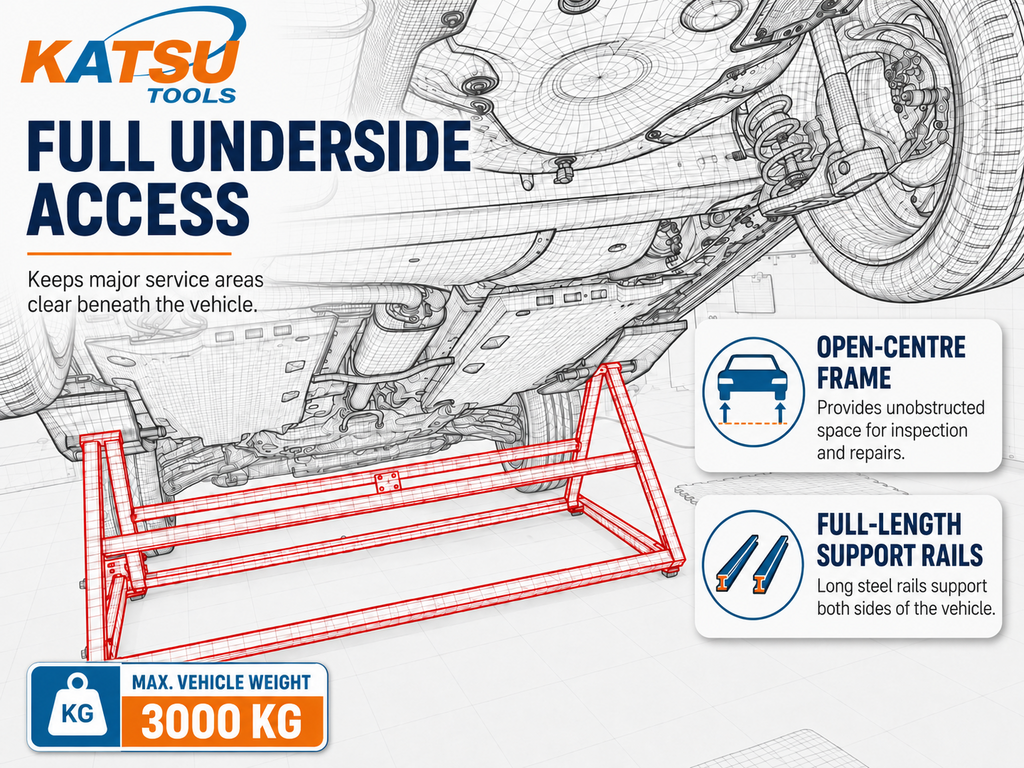

Underbody & Exhaust Maintenance: Tilting vehicle angle for clear access to underside floor pans, exhausts, suspensions, and brake lines.
-
Garage & Workshop Servicing: Compact, portable alternative to bulky stationary two-post or scissor lifts.

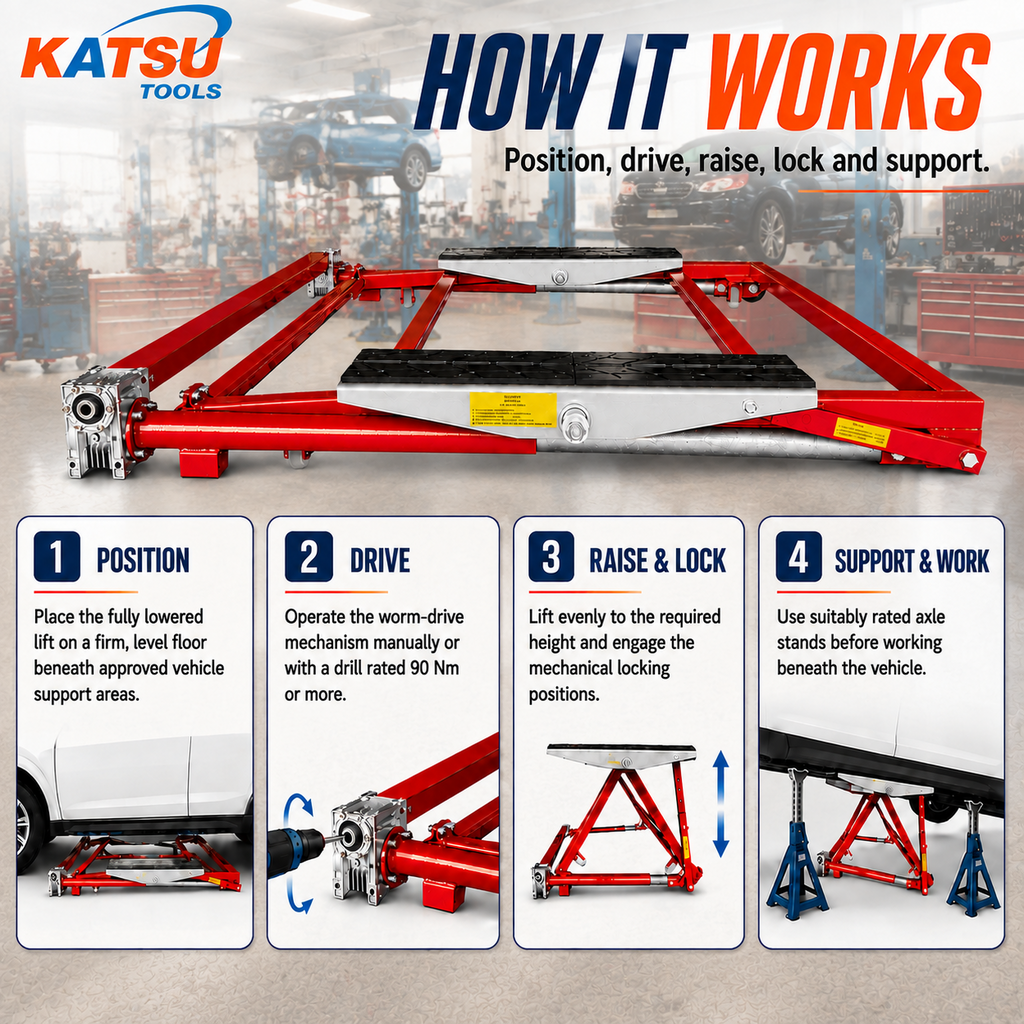

Operating & Care Guidelines
-
CRITICAL SAFETY WARNING — DO NOT USE IMPACT WRENCHES: Never use an impact wrench or pneumatic gun to operate the lifting mechanism, as this will destroy internal gears and leadscrews.
-
Axle Stand Safety Requirement: Always place suitably rated axle stands beneath the vehicle before climbing under for repair or maintenance work.
-
Drill Torque Requirement: When using an electric drill for raising/lowering, ensure it has a minimum torque output of 90Nm.
