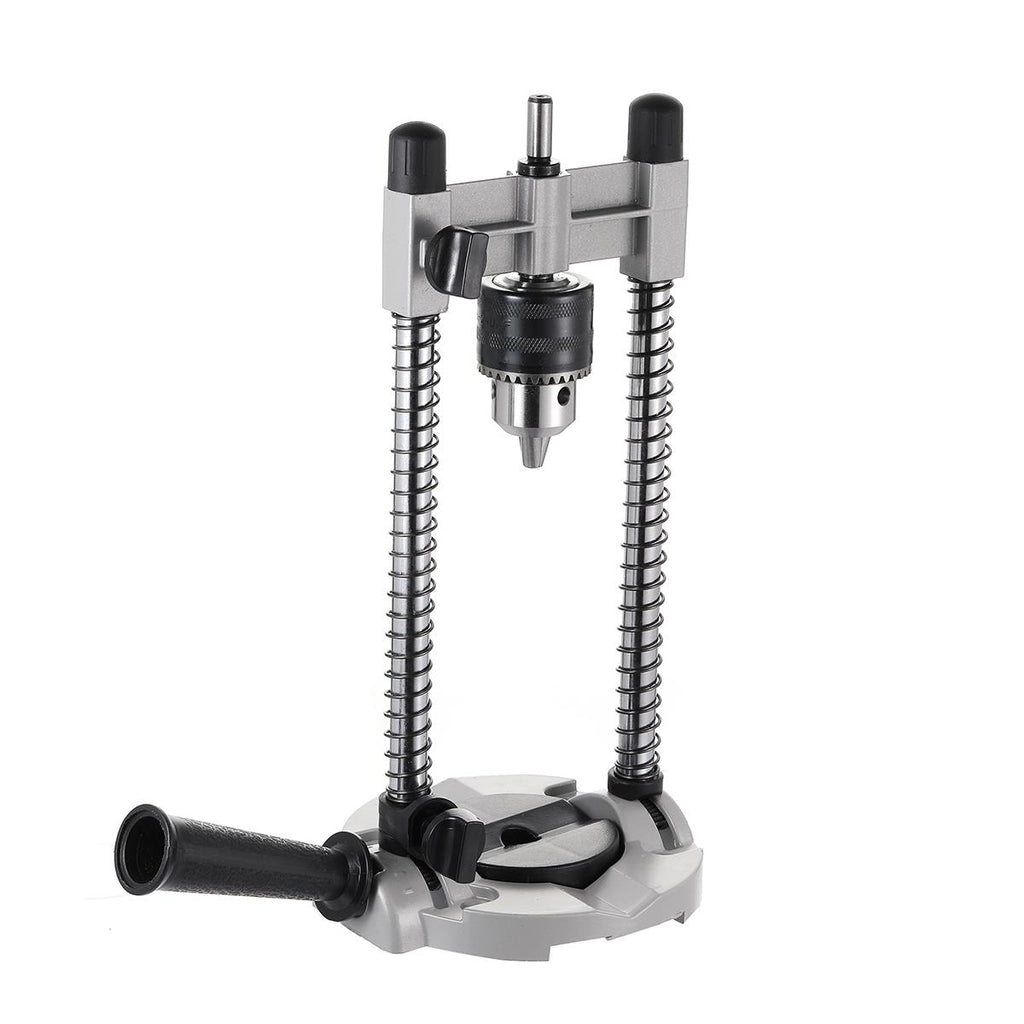

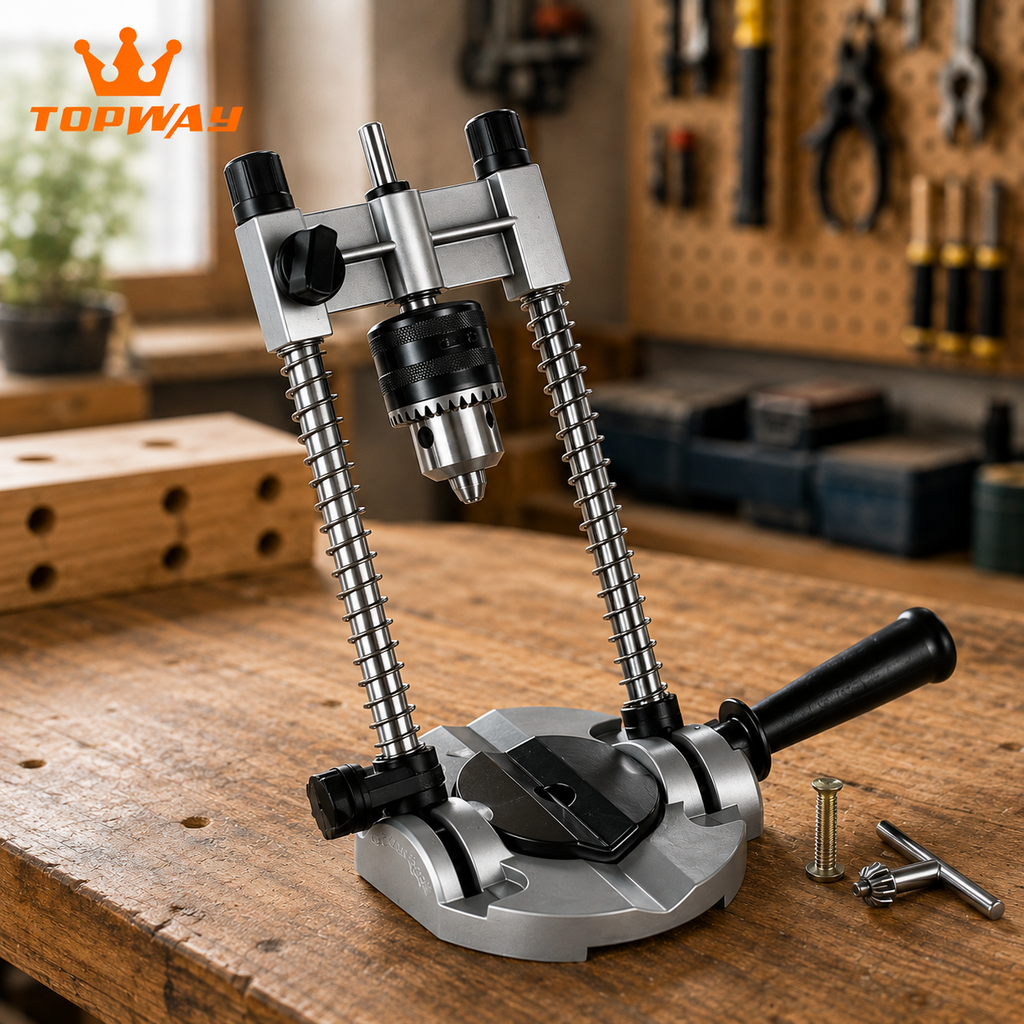

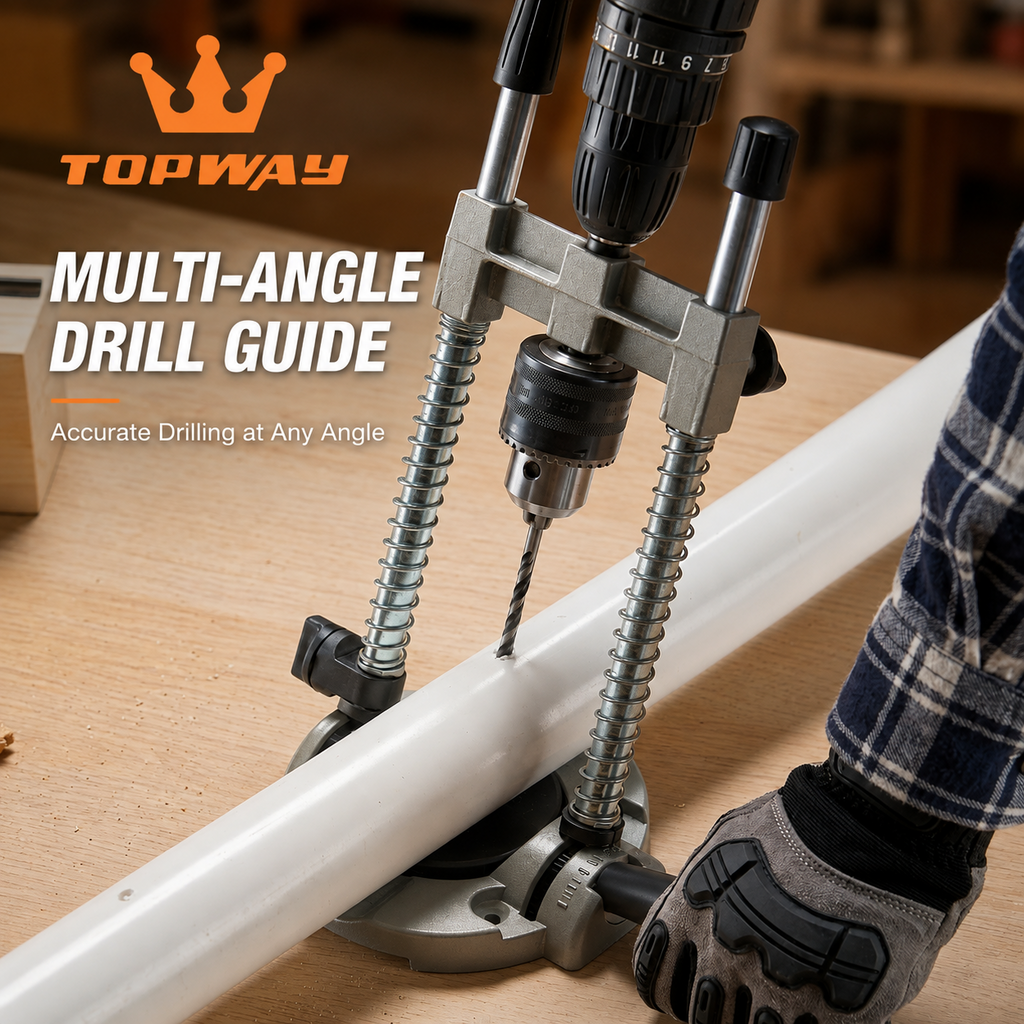

Multi-Angle Drill Guide Attachment is a versatile, portable drill press stand engineered to turn your handheld electric drill into a precise and stable drilling machine.
⭐ Key Features
-

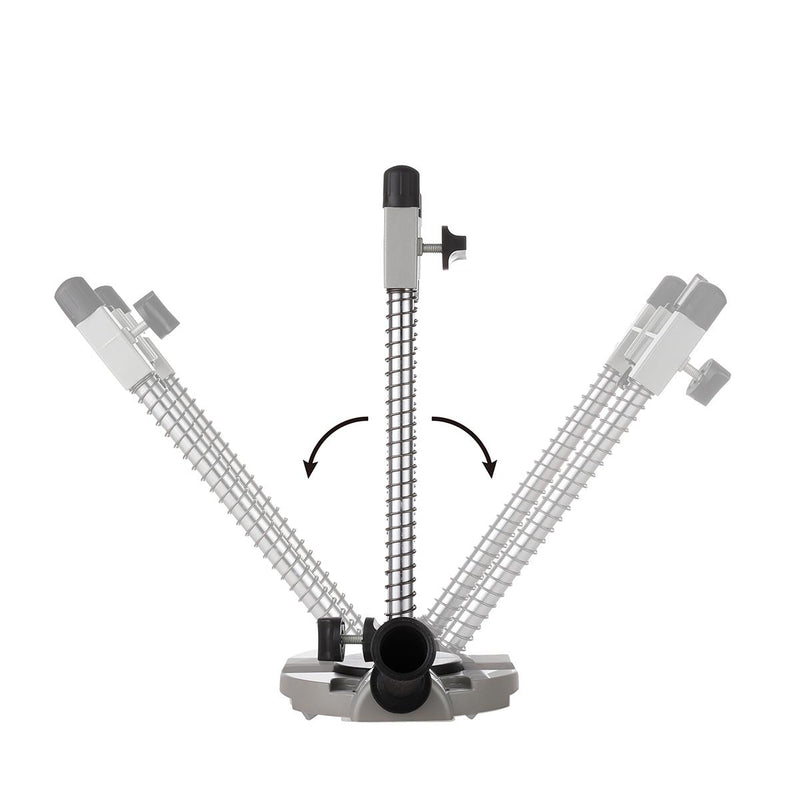

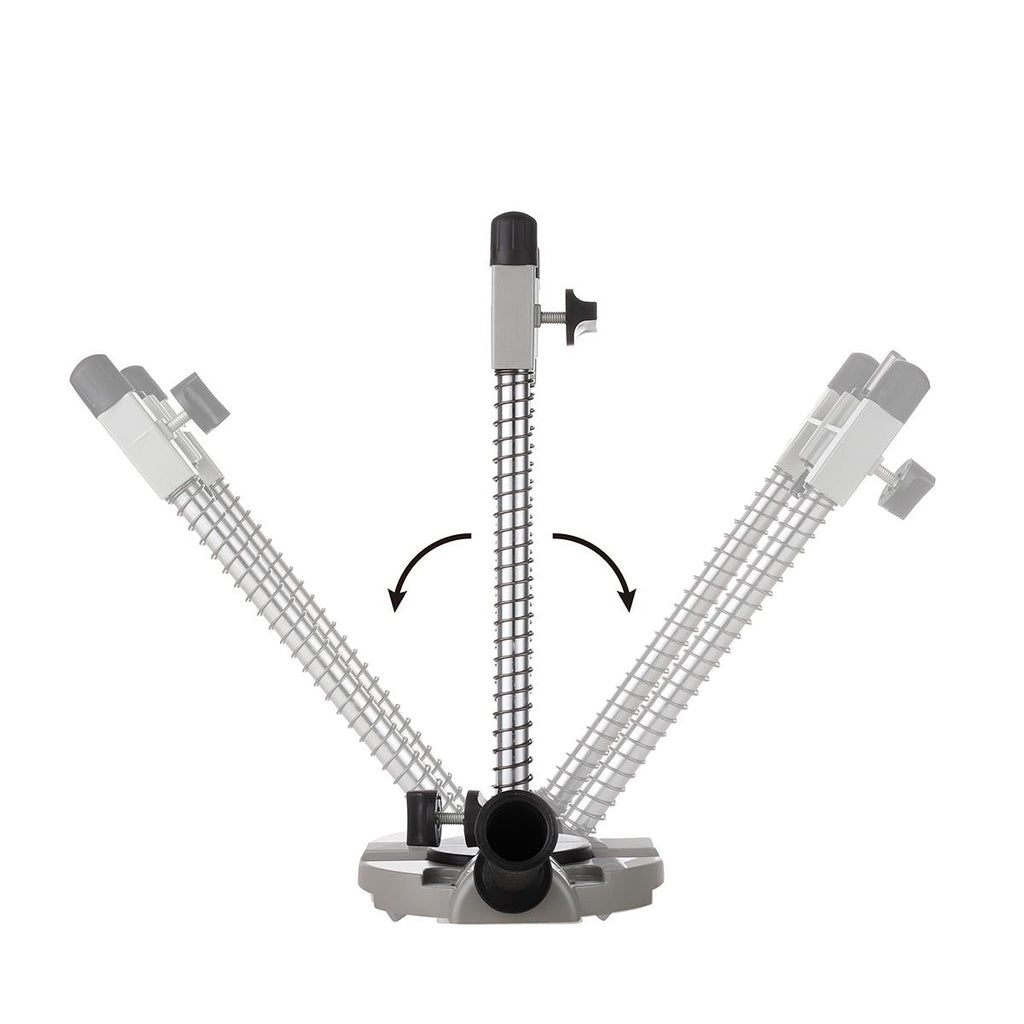

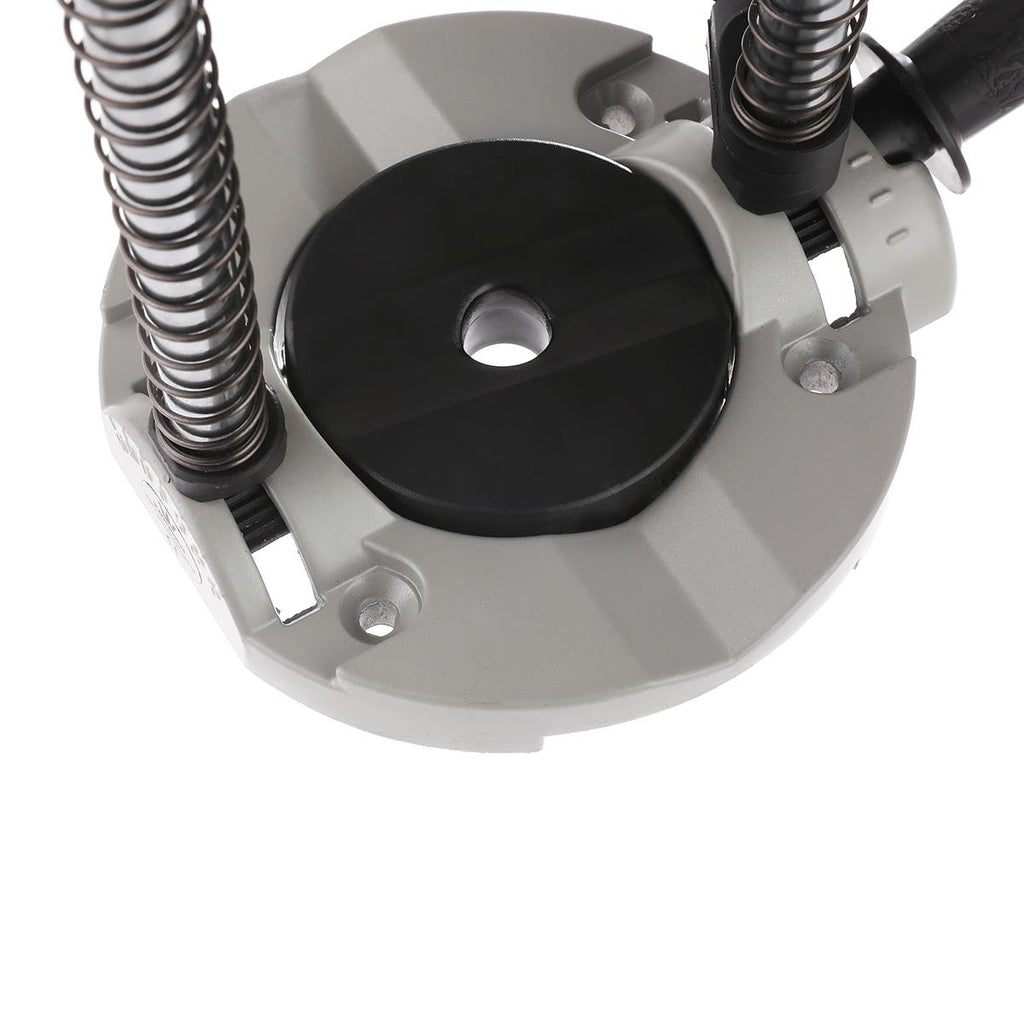

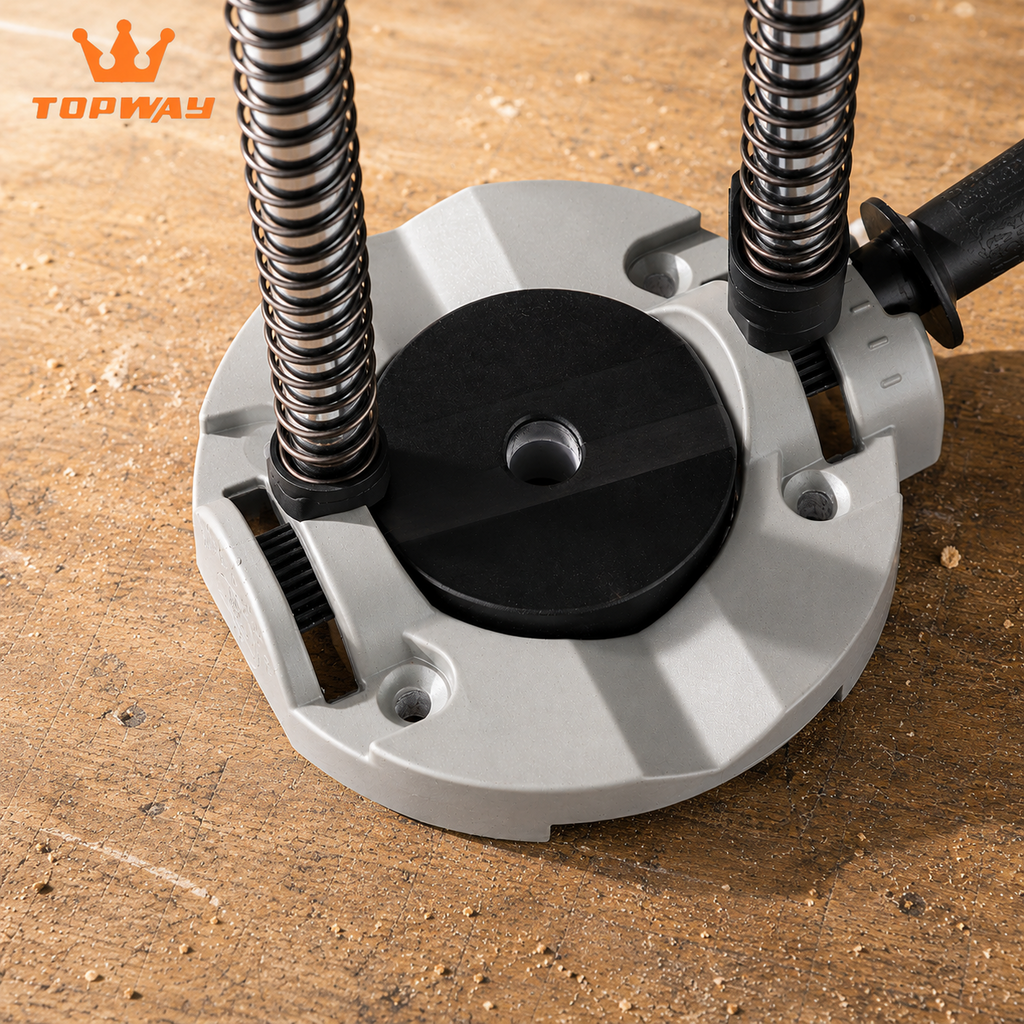

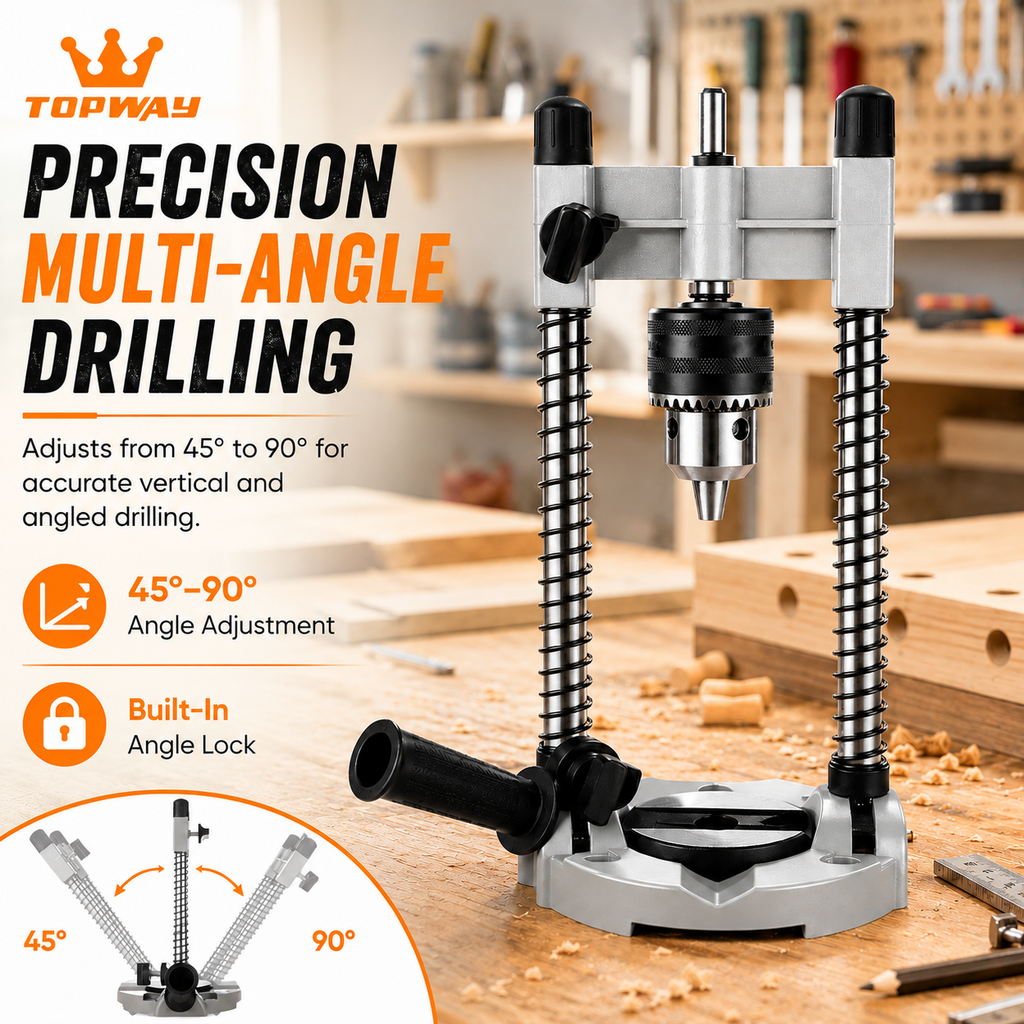

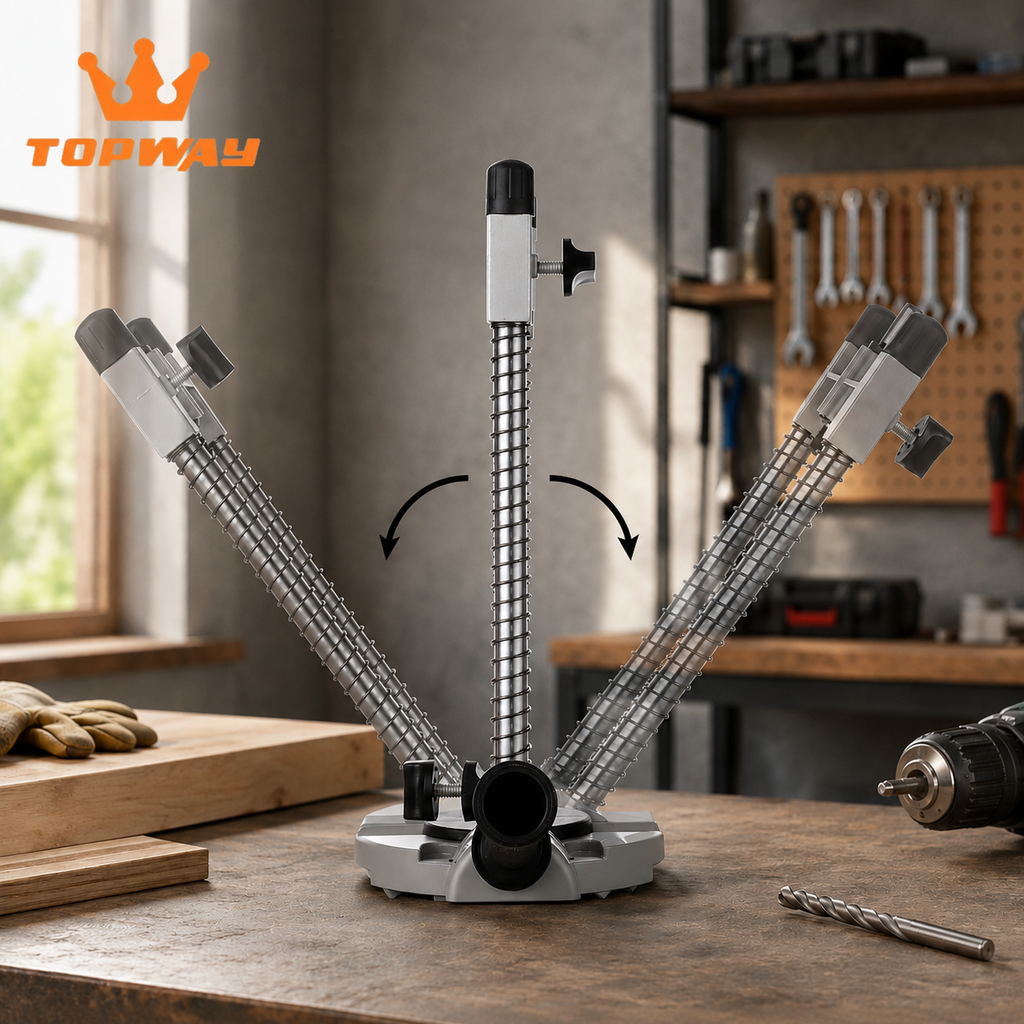

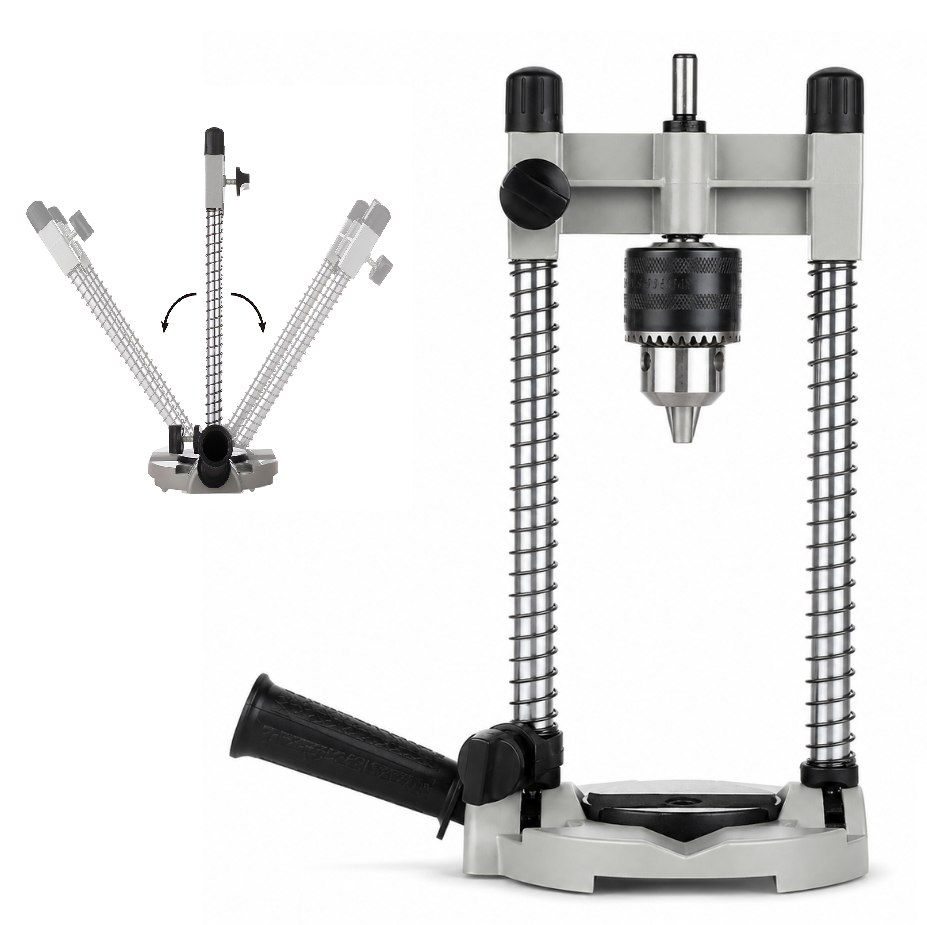

45° to 90° Adjustable Angle Cuts: Features a built-in precision angle readout scale in the aluminum base for accurate angled and slanted drilling.
-

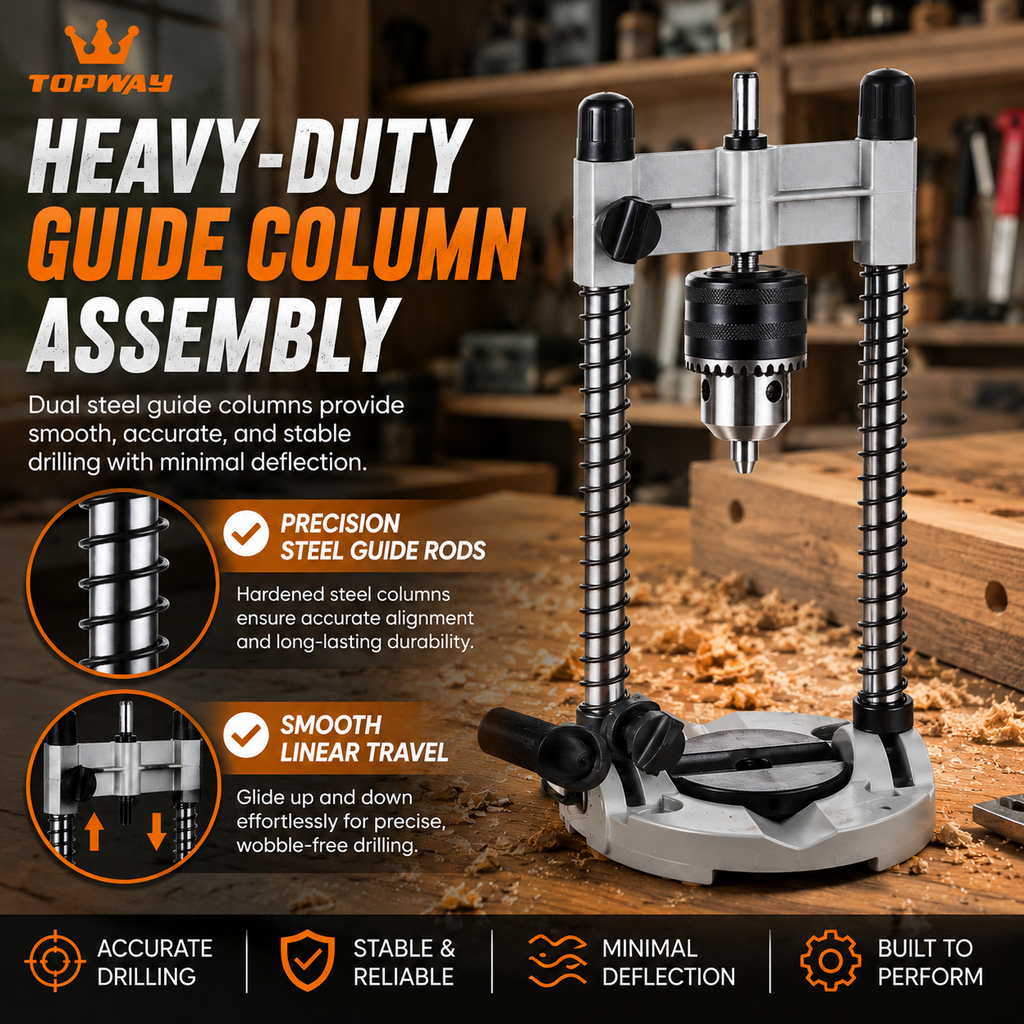

Double Guide Bar System: Smooth steel double guide bars can be easily adjusted for stable horizontal, vertical, and angle drilling up to 45°.
-
150mm Maximum Stroke: High-clearance chuck bridge design allows a long vertical travel stroke of up to 150mm for deep hole drilling.
-

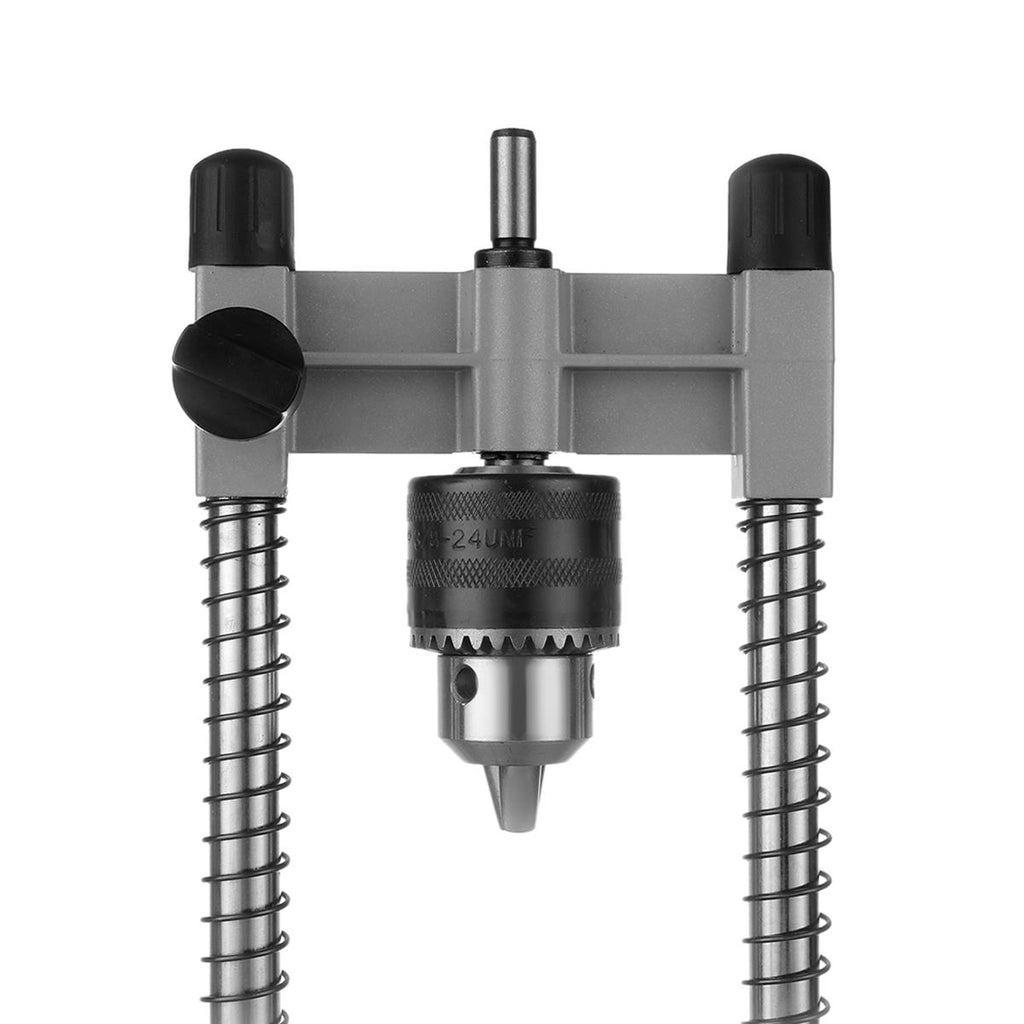

Wide Drill Compatibility: Fits standard 3/8" and 1/2" power drills with collar diameters between 38mm and 43mm, and includes a 1/2" capacity chuck.
-
Lightweight & Portable: Weighing just 1.3kg with a compact 30cm height and 14cm width, it is easy to carry and operate anywhere.
⚙ Key Specifications
| Base Material |
Aluminum Alloy (with Steel Guide Bars & Plastic Accessories) |
| Drill Collar Clamping Range |
38 mm – 43 mm (Includes 1/2" Capacity Chuck) |
| Compatible Power Drills |
3/8" and 1/2" Electric Hand Drills |
| Adjustable Drilling Angle |
45° to 90° (Built-In Angle Readout on Base) |
| Maximum Drilling Stroke |
150 mm (at Full Height) |
| Drill Base Collar Diameter |
42.5 mm (1.6 inches) |

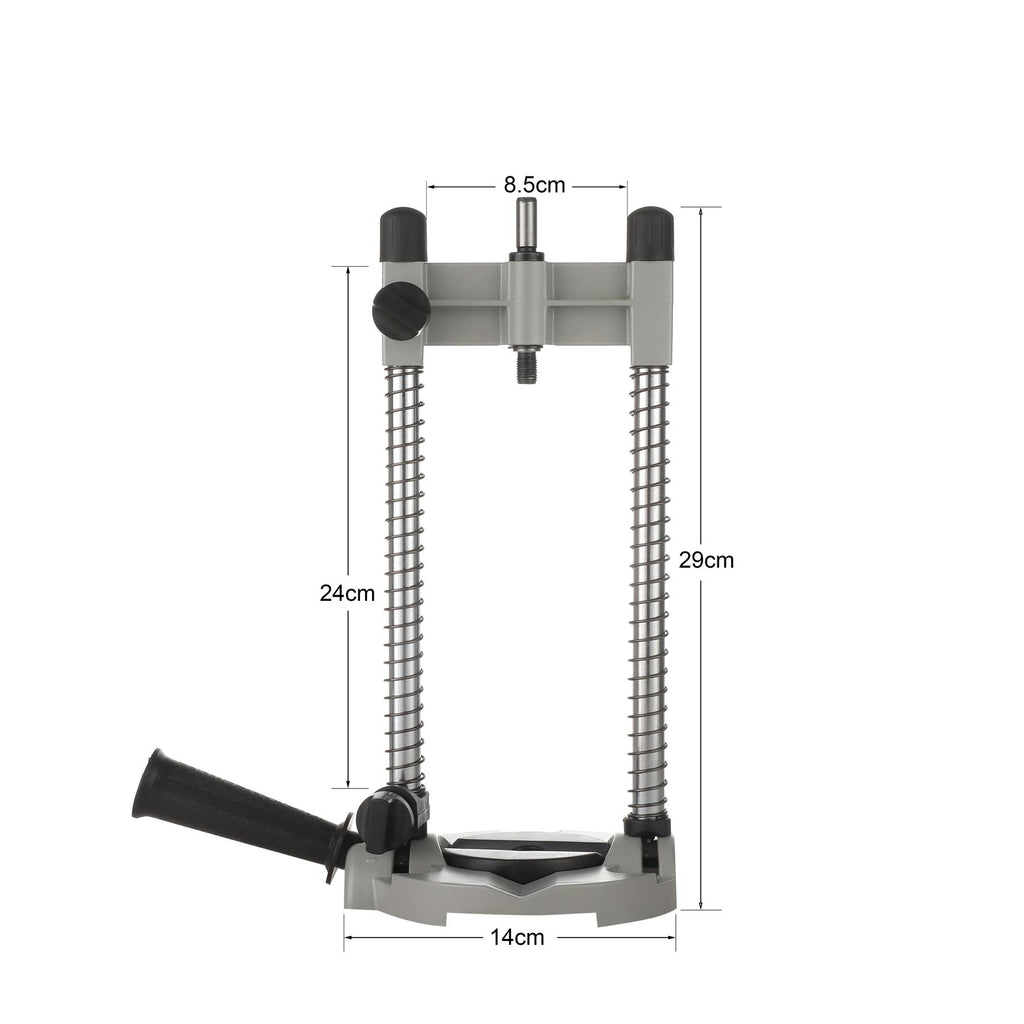

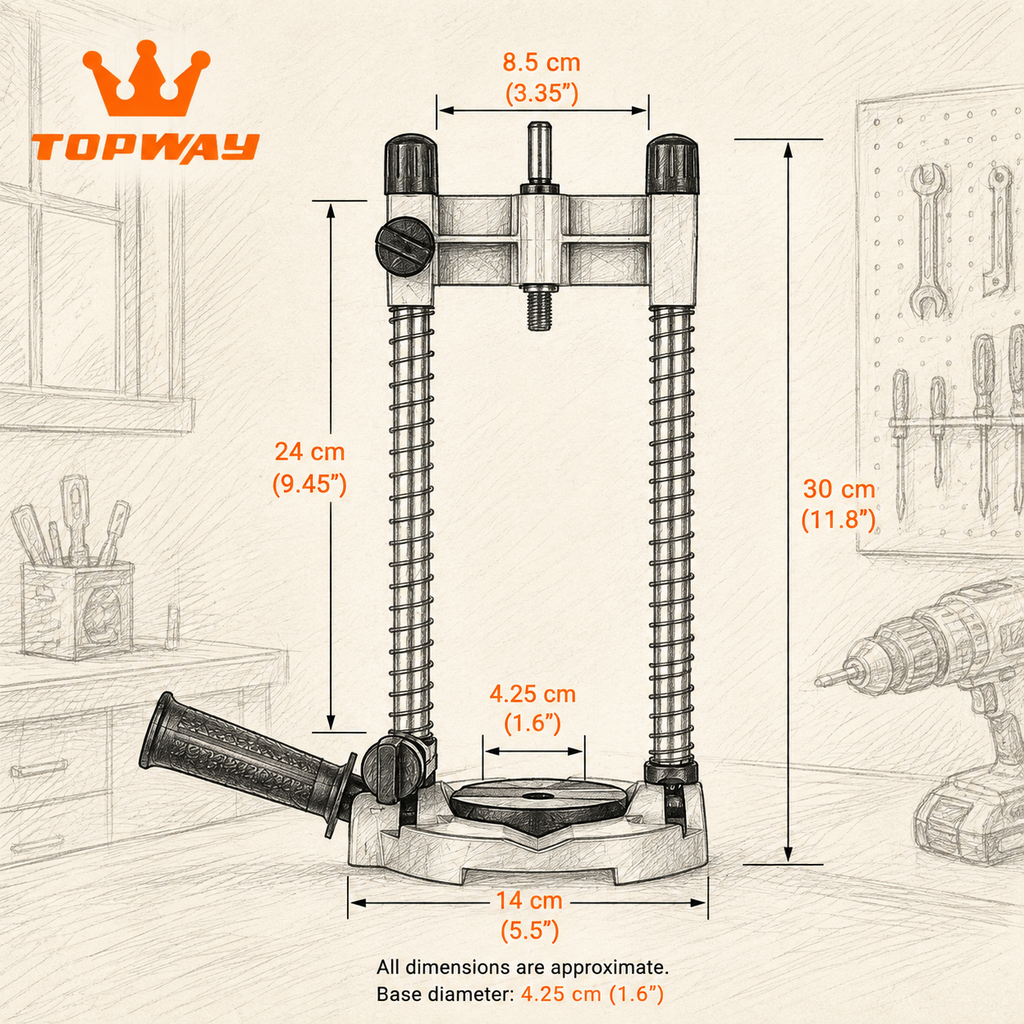

| Dimensions (W x H) |
14 cm x 30 cm (5.5" x 11.8") |
| Net Weight |
1.3 kg |
🎯 Ideal For
- Precision Angle & Vertical Drilling: Achieving clean, vertical, or 45°-90° angled holes on wood, plastics, and non-ferrous metals.
- On-Site & Field Woodworking: Portable doweling, hole sawing, and hardware fitting where a stationary drill press is unavailable.
- DIY & Workshop Projects: Converting existing portable electric drills into desktop-style precision drilling tools.
⚠ Important
- Compatibility Notice: Ensure your electric drill collar size is within 38mm to 43mm (or use the supplied 1/2" chuck) before mounting. (Note: Electric drill machine is NOT included).
- Angle Alignment: Always loosen the angle locks, align the indicator to your required degree (45°–90°) on the base readout, and firmly tighten before drilling.
- Guide Bar Maintenance: Periodically wipe sawdust and metal shavings off the double round steel guide bars to maintain smooth sliding action.
