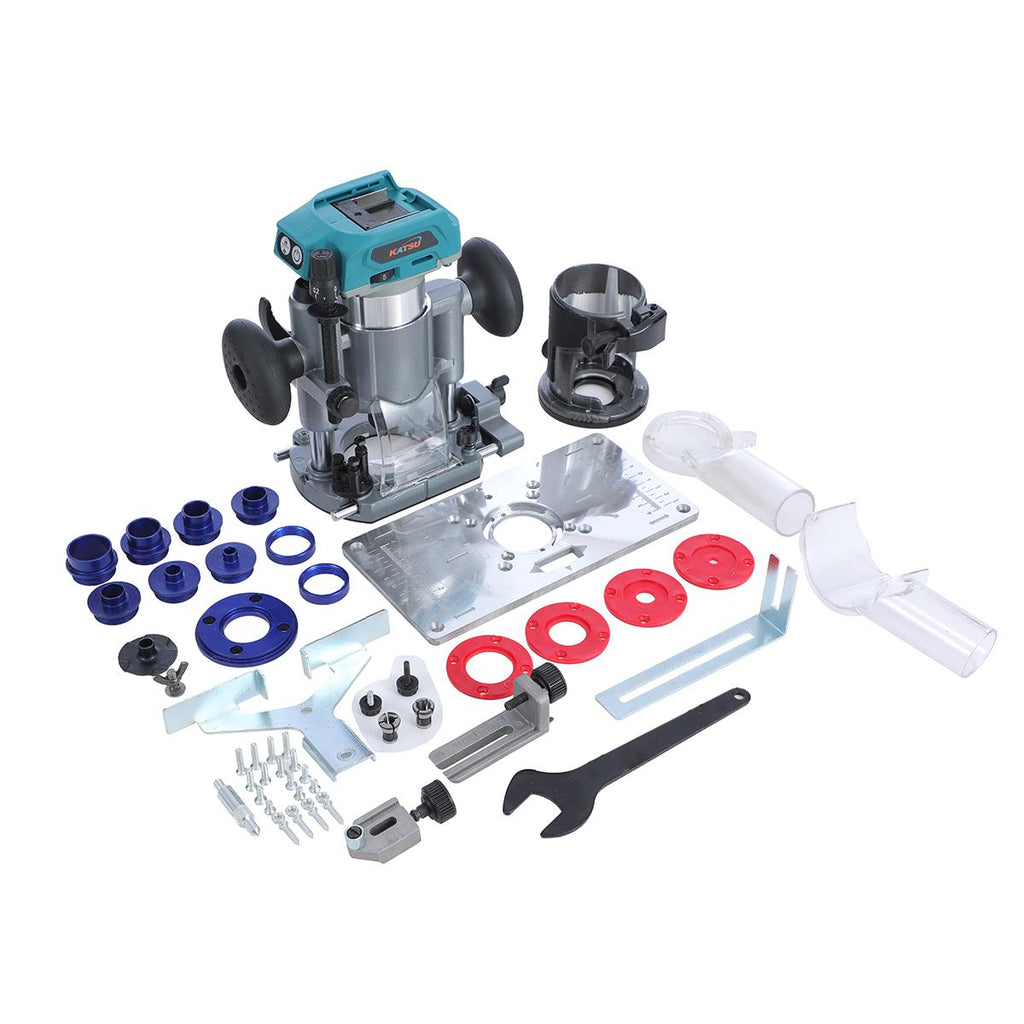

FIT-BAT 18V/21V Brushless Cordless Wood Router Trimmer Table & Template Master Kit is the ultimate, cord-free woodworking system designed for table-mounted milling, deep plunge mortising, template replication.
⭐ Key Features

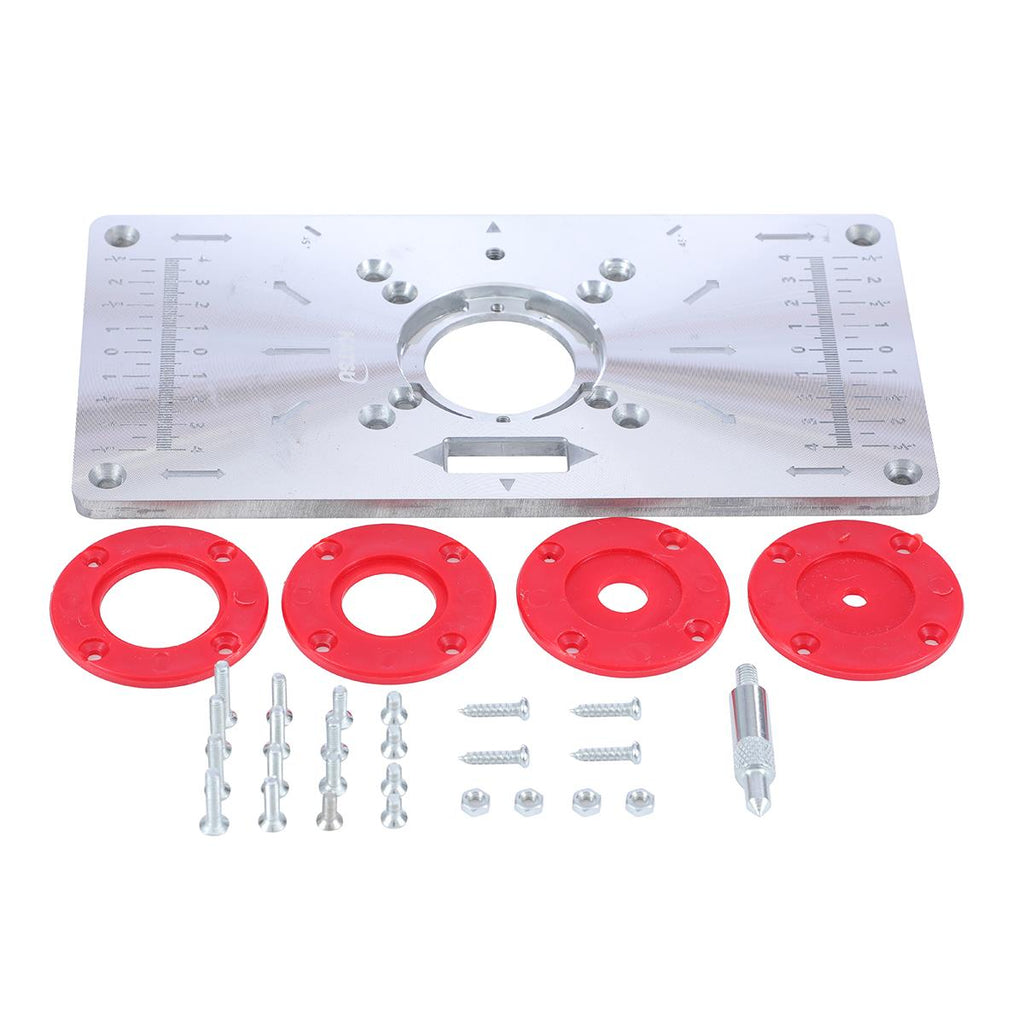

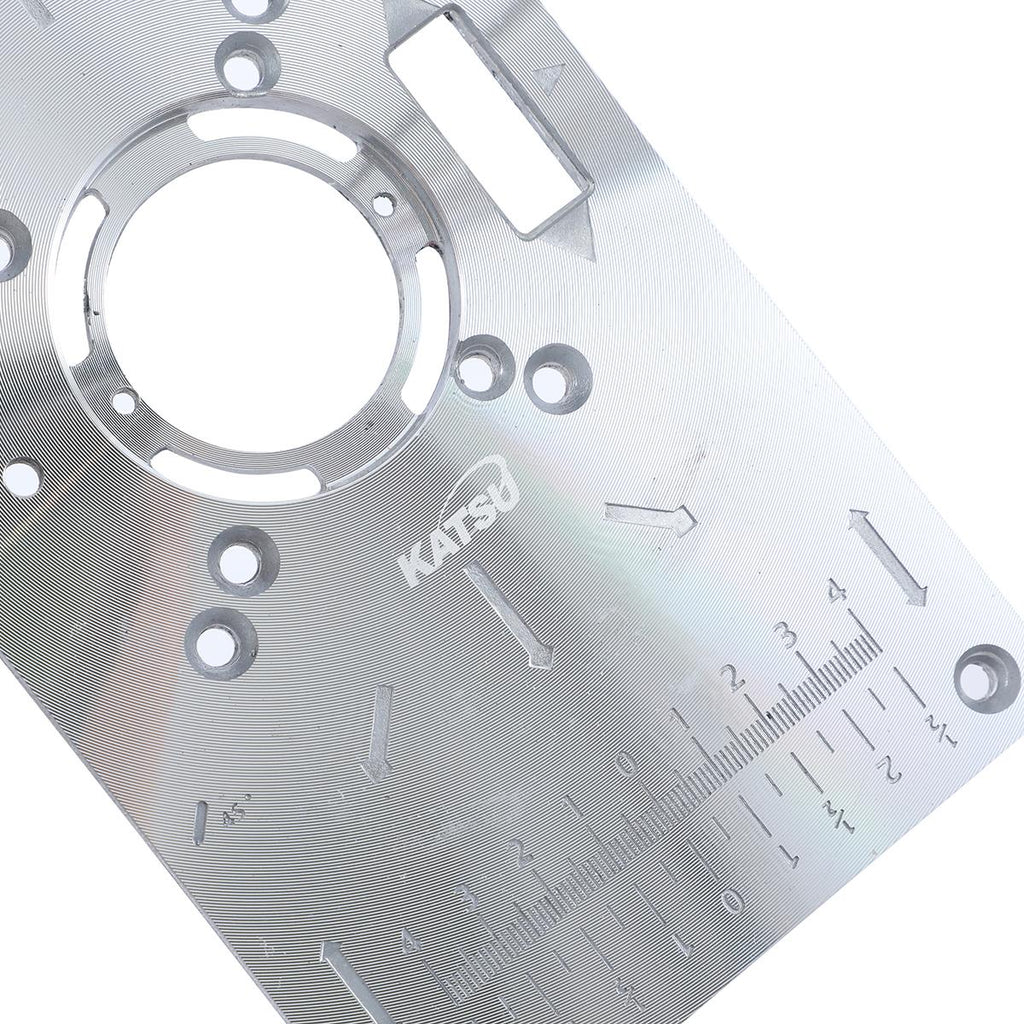

- Heavy-Duty Aluminium Router Table Insert Plate Included: Cast aluminium insert plate (235mm x 120mm x 8mm) with pre-drilled 70x62mm mounting holes and dual surface alignment scales provides a rigid, sag-free, flat table surface for inverted router table setups.

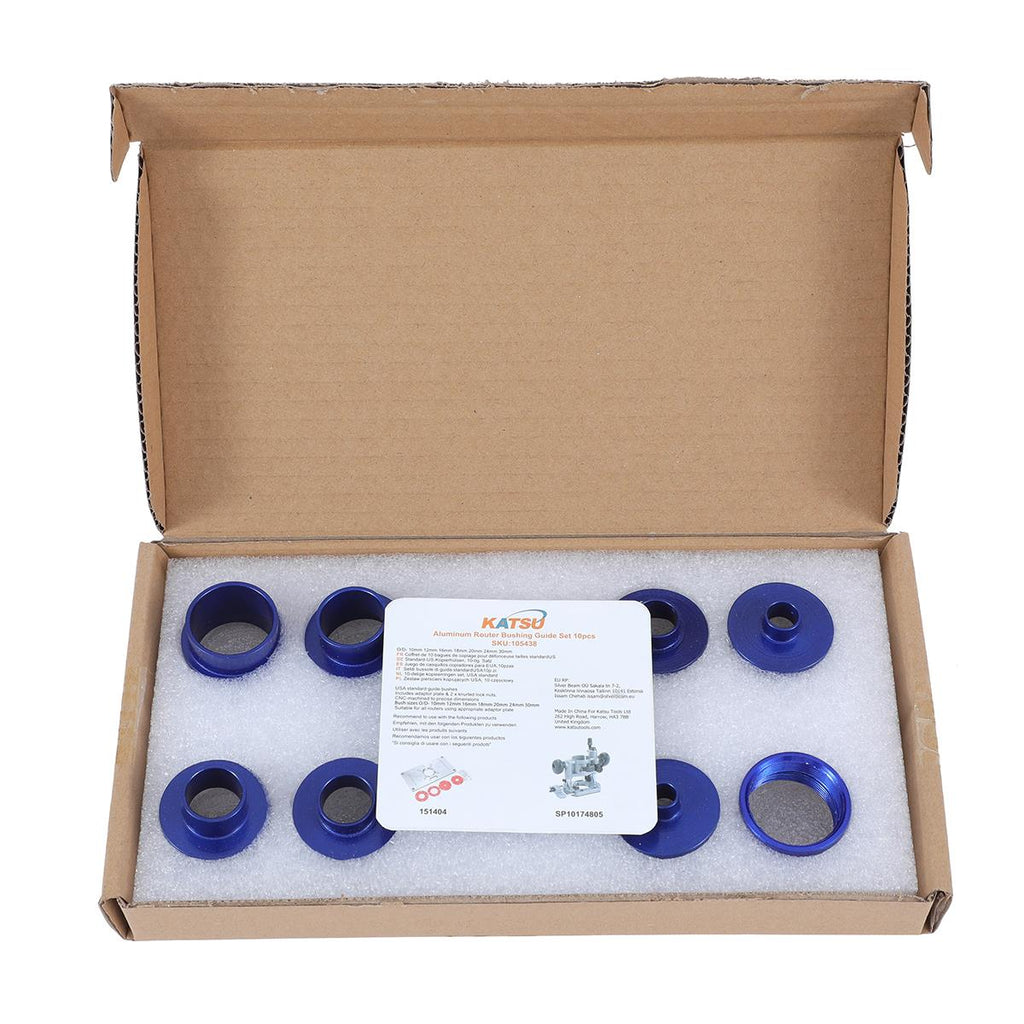

- 10-Piece Metric Aluminium Alloy Guide Bushing Set: Made of heavy-duty aluminum alloy with a premium blue spray finish, including 7 metric guide bushes (10mm to 30mm) in a dedicated storage case for dovetailing, stair routing, and hinge mortising.
-

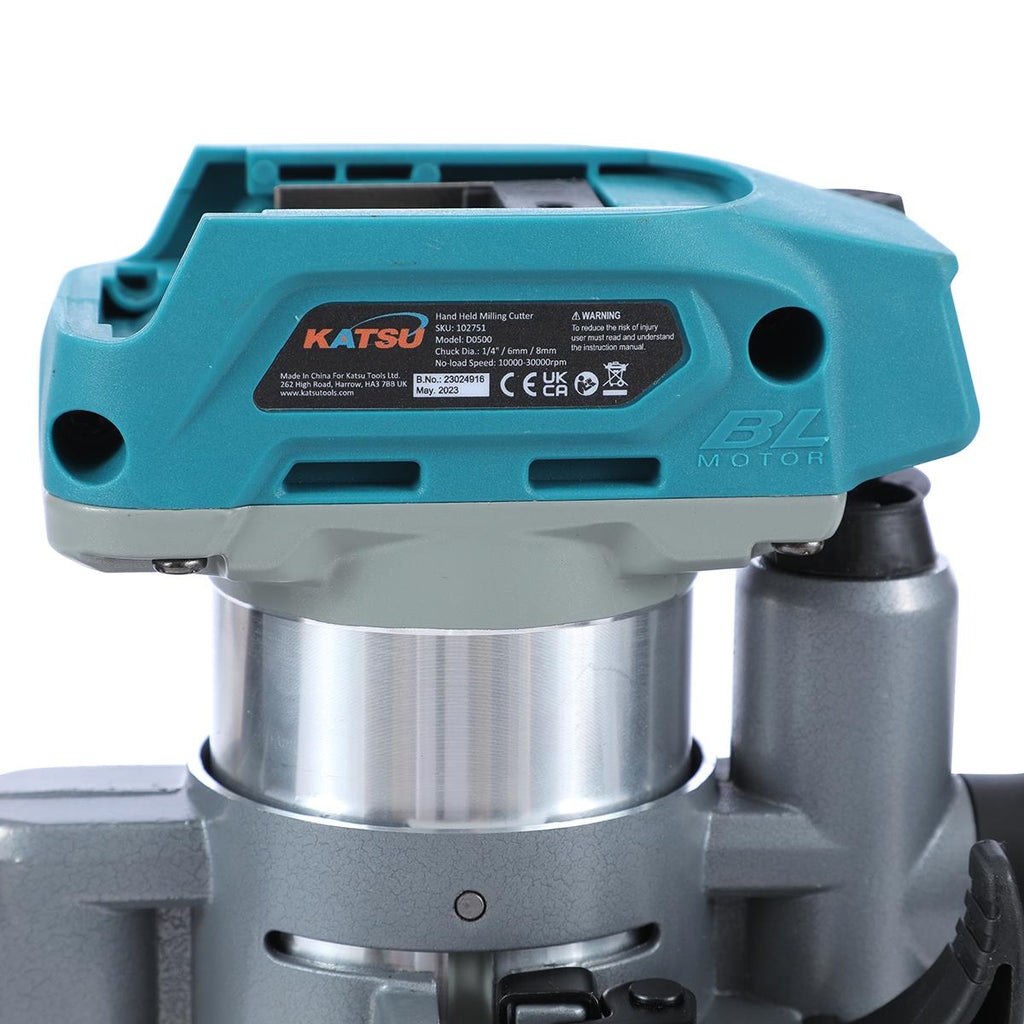

Maintenance-Free 710W Brushless Motor: High-torque brushless motor delivers 710W equivalent cutting power with doubled battery runtime, eliminating carbon brush wear for a long service life.
-

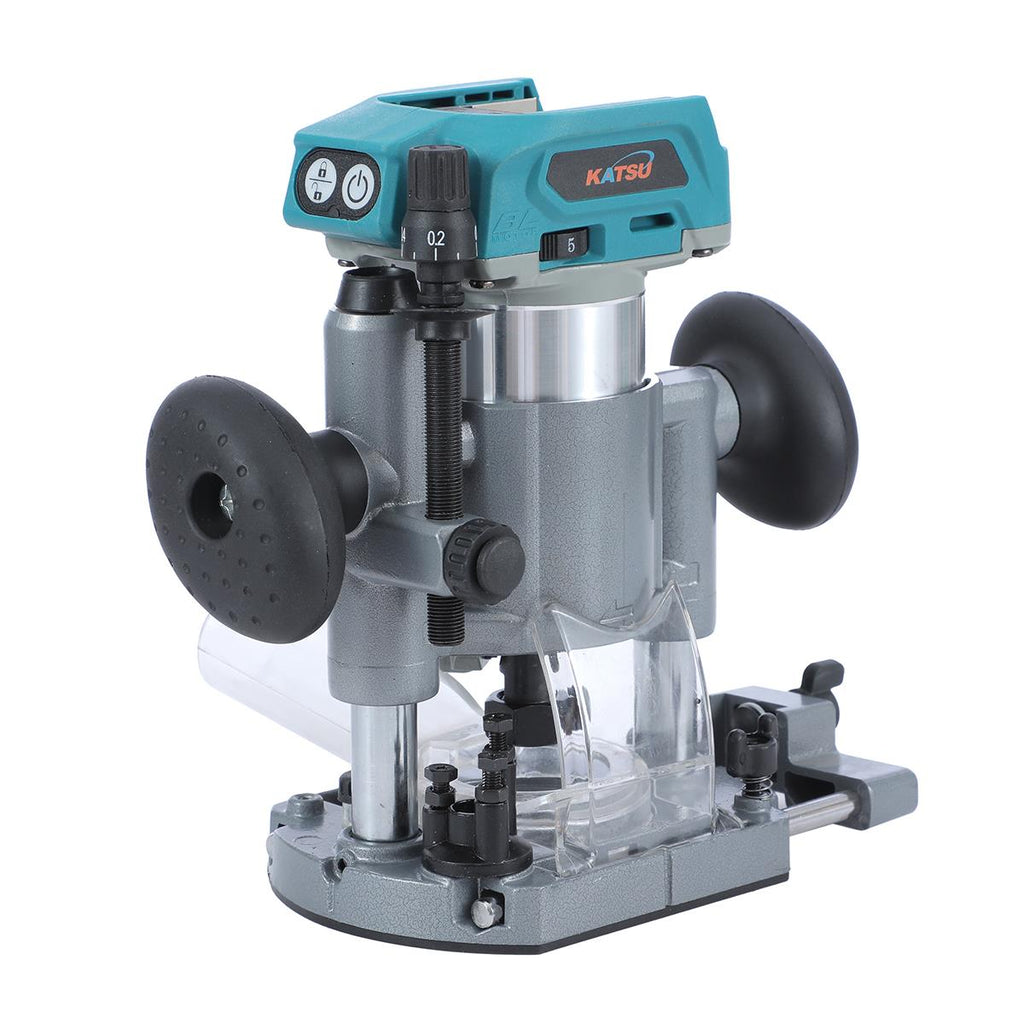

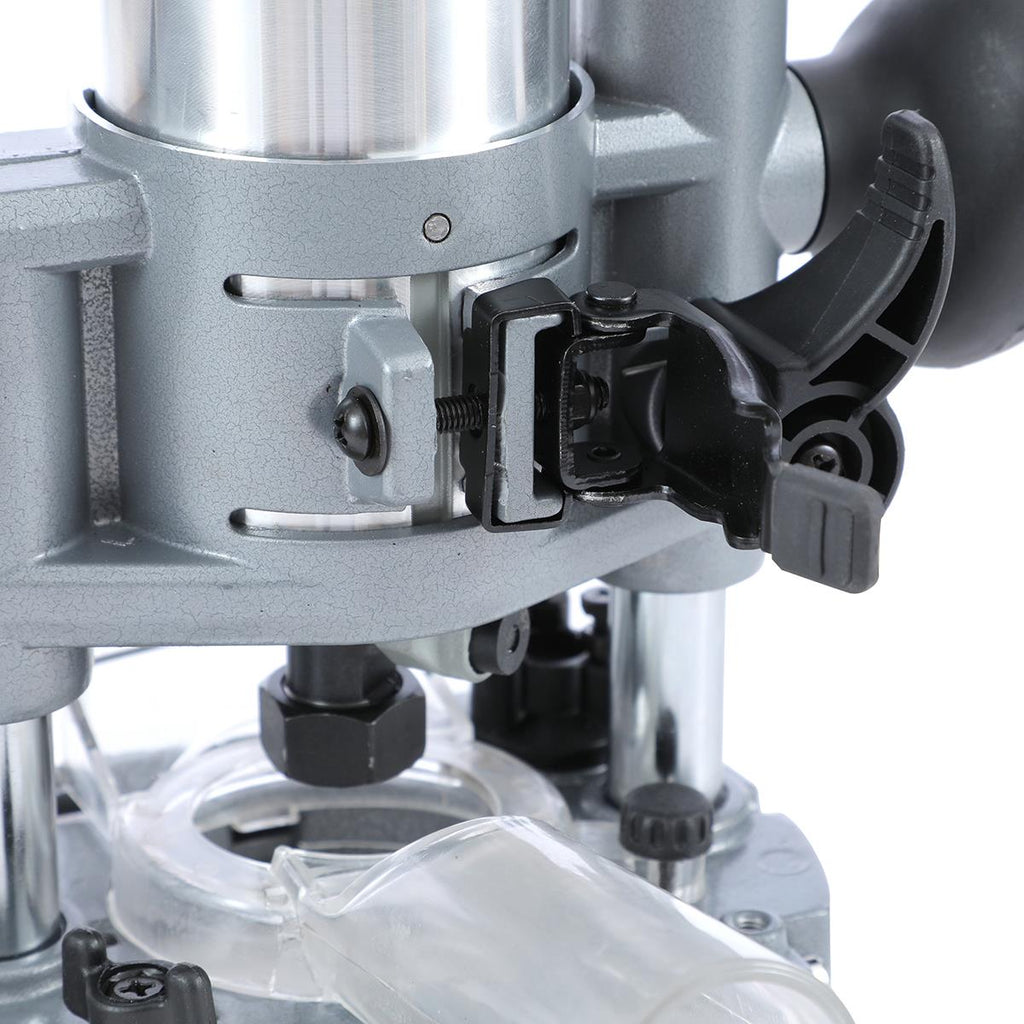

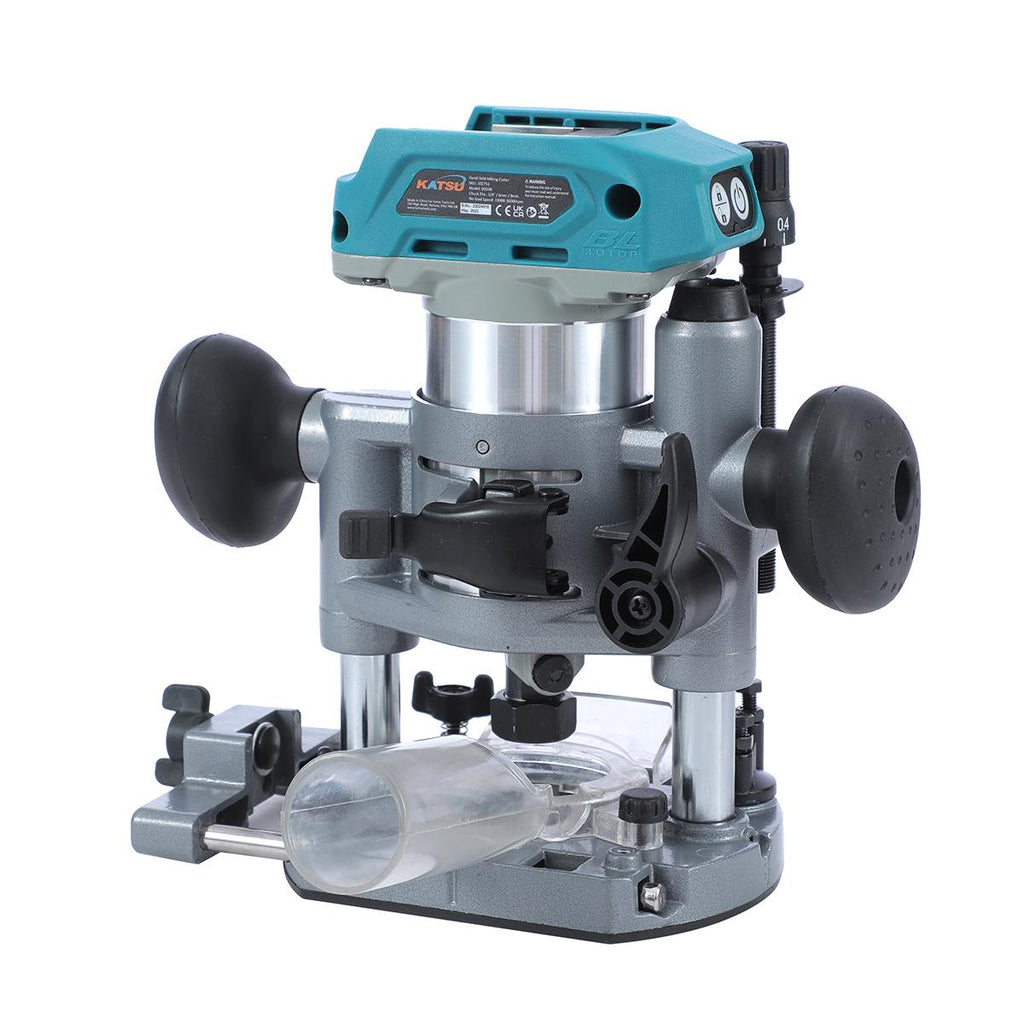

Fully Adjustable Aluminium Plunge Base: Precision-machined dual-handle plunge base (220 x 142 x 172mm) with rubberized handles and multi-stage depth stops for controlled mortising, slotting, and dado cuts.
- 5-Speed Electronic Variable Control (10,000 – 30,000 RPM): Features 5 electronic speed settings (10,000 / 15,000 / 20,000 / 25,000 / 30,000 RPM) to match cutting speeds precisely to material density and bit size.
⚙ Key Specifications
| Tool Type |
Cordless Brushless Router Trimmer Table & Template Kit |
| Motor Type |
High-Efficiency Maintenance-Free Brushless Motor |
| Operating Voltage |
DC 18 V – 21 V |
| Battery Compatibility |

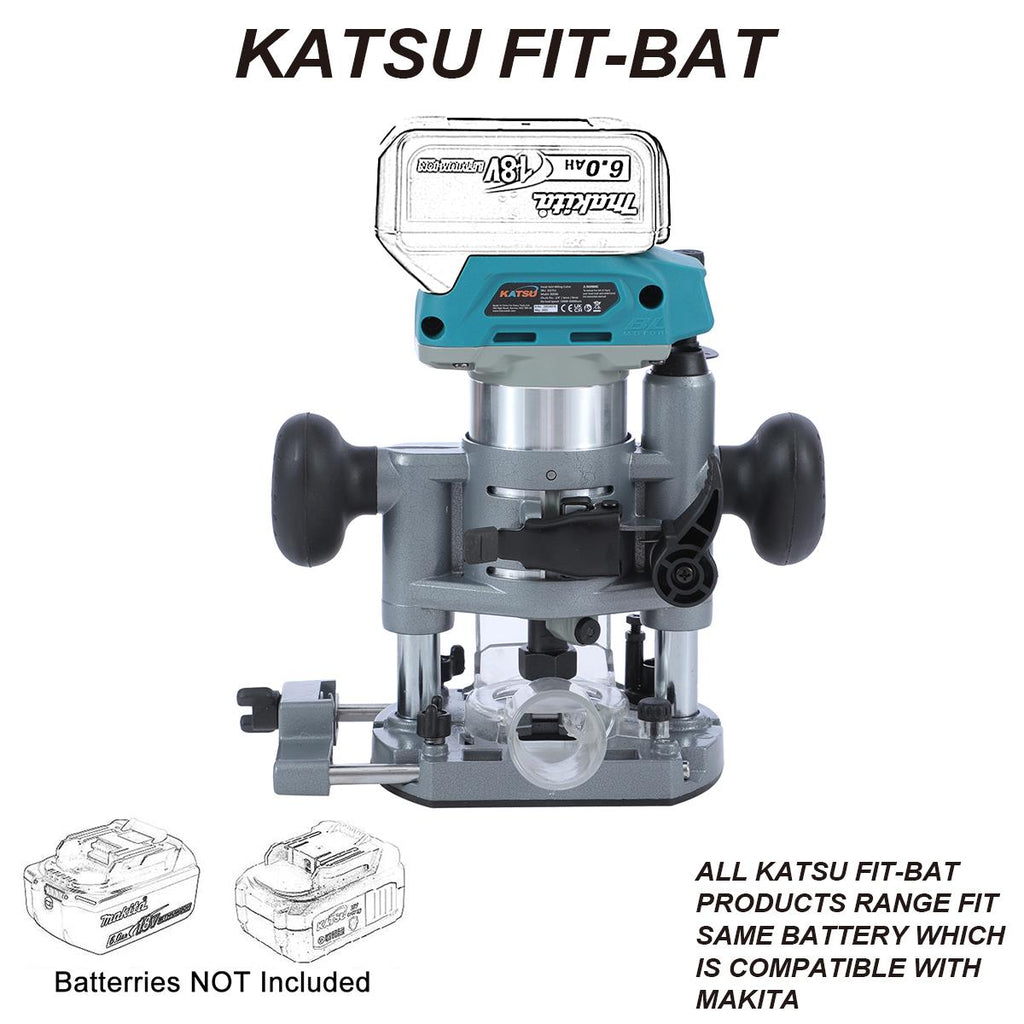

KATSU Tools FIT-BAT & LXT-Style 18V/21V Batteries |
| No-Load Speed |
10,000 / 15,000 / 20,000 / 25,000 / 30,000 RPM (5 Speeds) |
| Trimmer Body Diameter (without base) |
64.8 mm |
| Max Routing Depth |
Approx. 20 mm |
| Insert Plate Dimensions & Mounting |
235 mm × 120 mm × 8 mm (Mounting Hole: 70 mm × 62 mm) |
🎯 Ideal For
- Inverted Router Table Milling: Mount your router to the included aluminium plate to create a benchtop router table for batch milling edge profiles, bevels, and dado slots.
- Template-Guided Jointing & Dovetailing: Use the 10-piece aluminum guide bushings with custom templates for dovetail joints, stair routing, and hinge mortising.
- Deep Plunge Mortising & Cabinetry: Use the Plunge Base for cutting hinge recesses, dado grooves, mortise & tenon joints, and custom cabinet assembly.
⚠ Important
- Incremental Pass Safety Guideline: To prevent motor overload and maintain precise tool control, depth of cut should not exceed 3mm per pass when cutting grooves. Make several passes with progressively deeper bit settings for cuts exceeding 3mm depth.
- Notice on Soft Start: Please note that this specific cordless model does not feature soft start. Hold the tool securely with two hands when turning the power switch on.
- Table Mounting Setup: Align the pre-drilled 70x62mm mounting holes on the aluminium insert plate with your router motor base, secure with countersunk screws, and ensure the plate is level with your workbench top.
