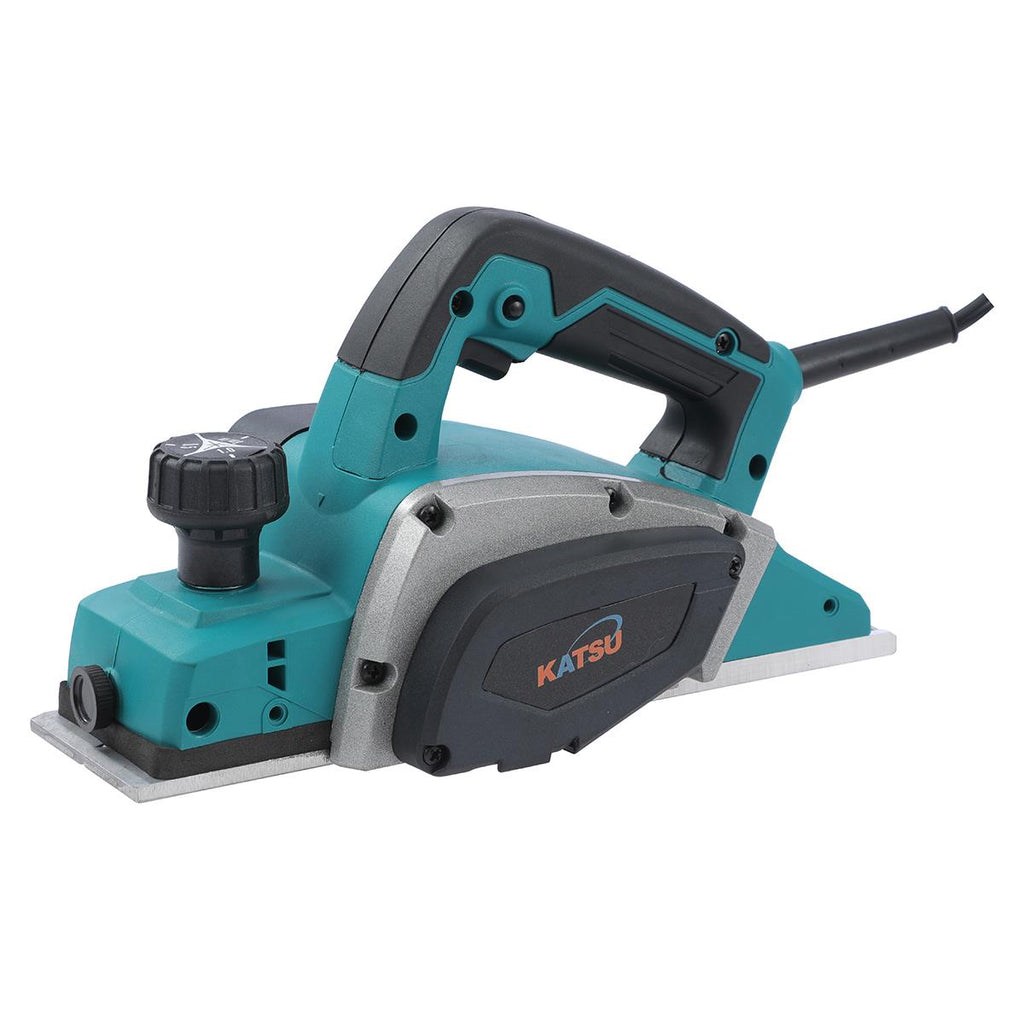

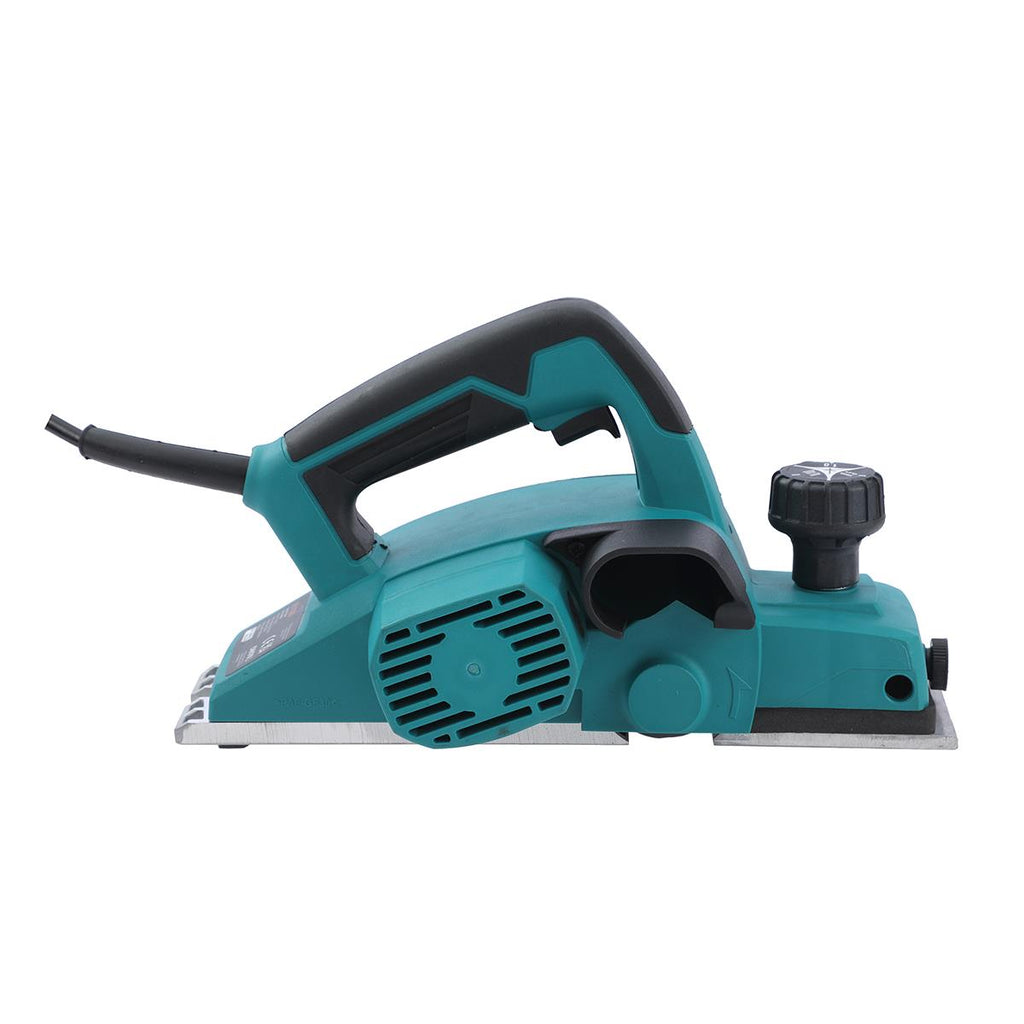

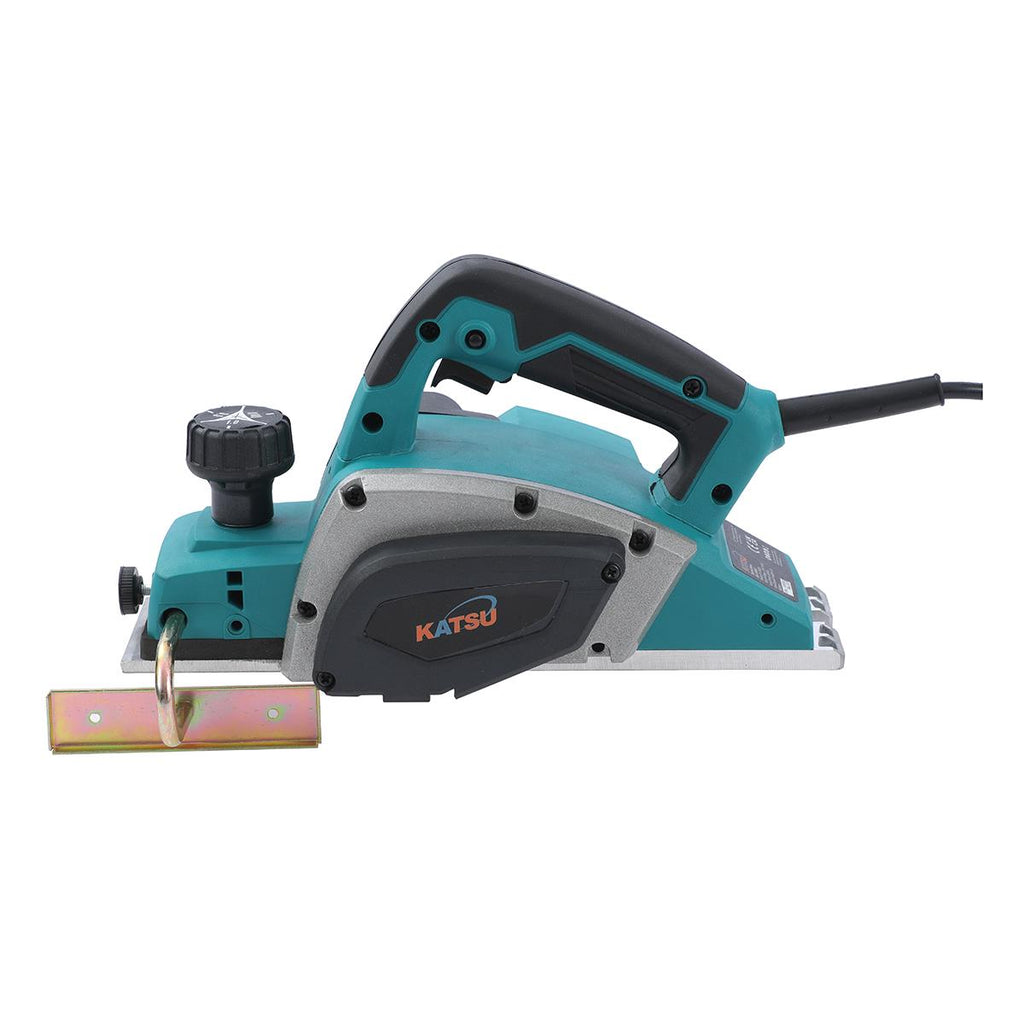

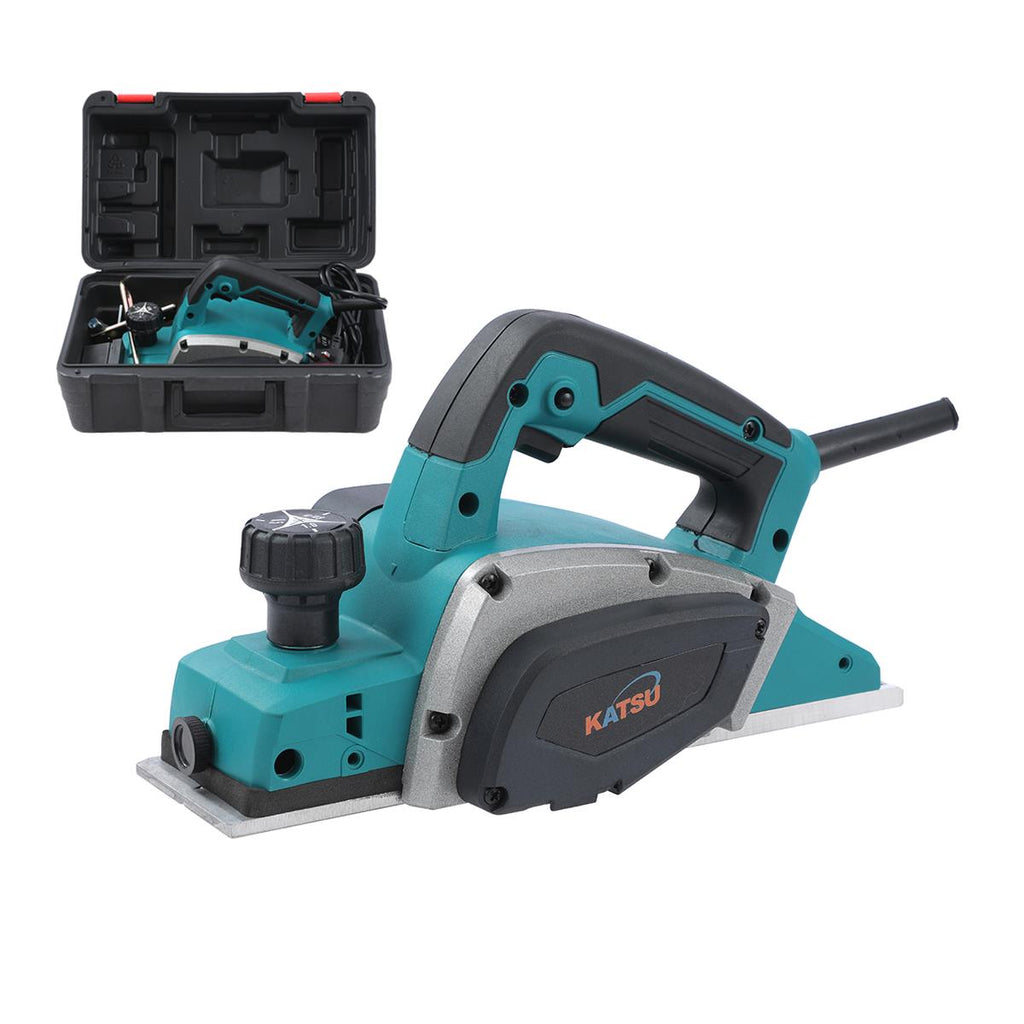

600W Electric Handheld Planer is a compact, high-efficiency woodworking tool engineered for precision timber planing, surface smoothing, edge leveling, and door fitting.
⭐ Key Features
-
600W Pure Copper Motor: High-efficiency copper-wound motor running up to 16000 RPM ensures rapid stock removal and chatter-free finishes.
-
82mm Planing Width & 1mm Adjustable Depth: 82mm wide cutting capacity with a precision front depth knob providing controlled depth adjustment from 0 to 1mm per pass.
-

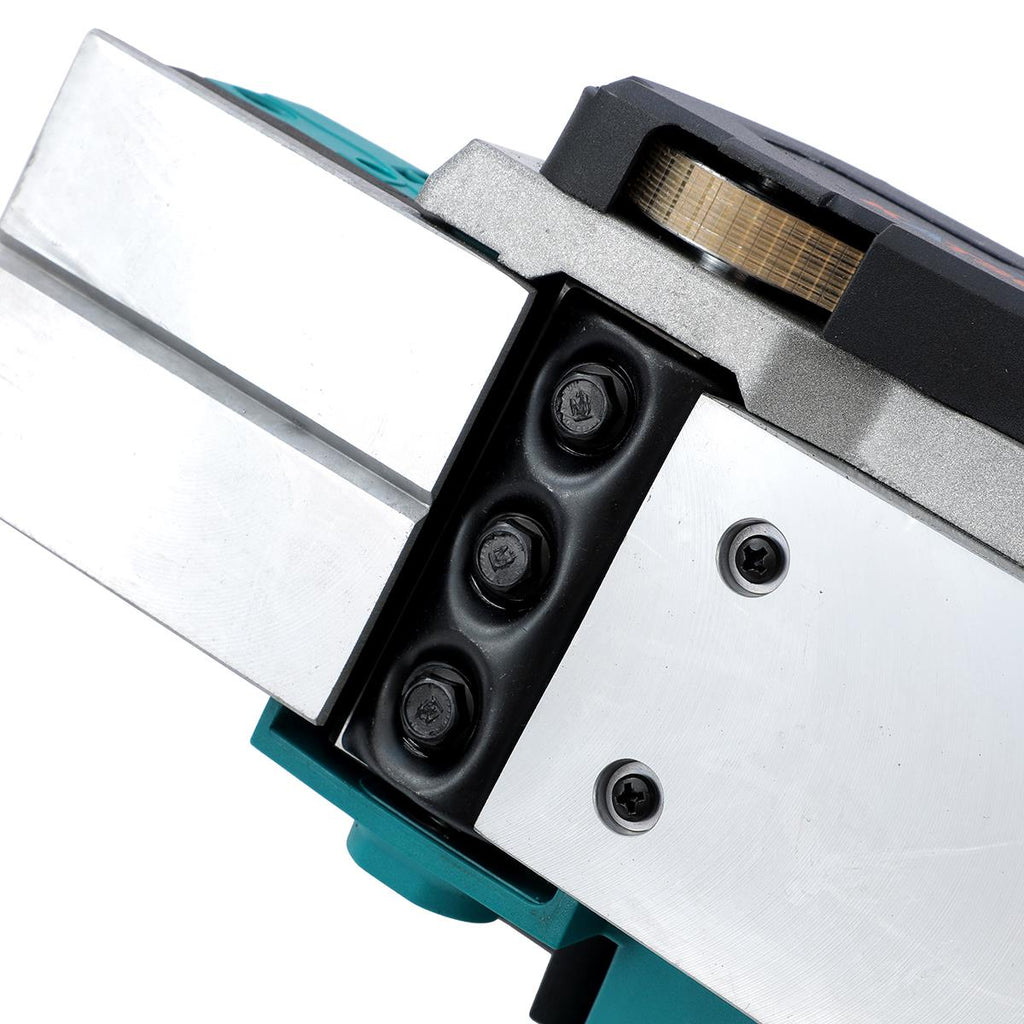

High Carbon Steel Blades: Fitted with durable high carbon steel blades that maintain long-lasting sharp edges for smooth wood shaping.
-

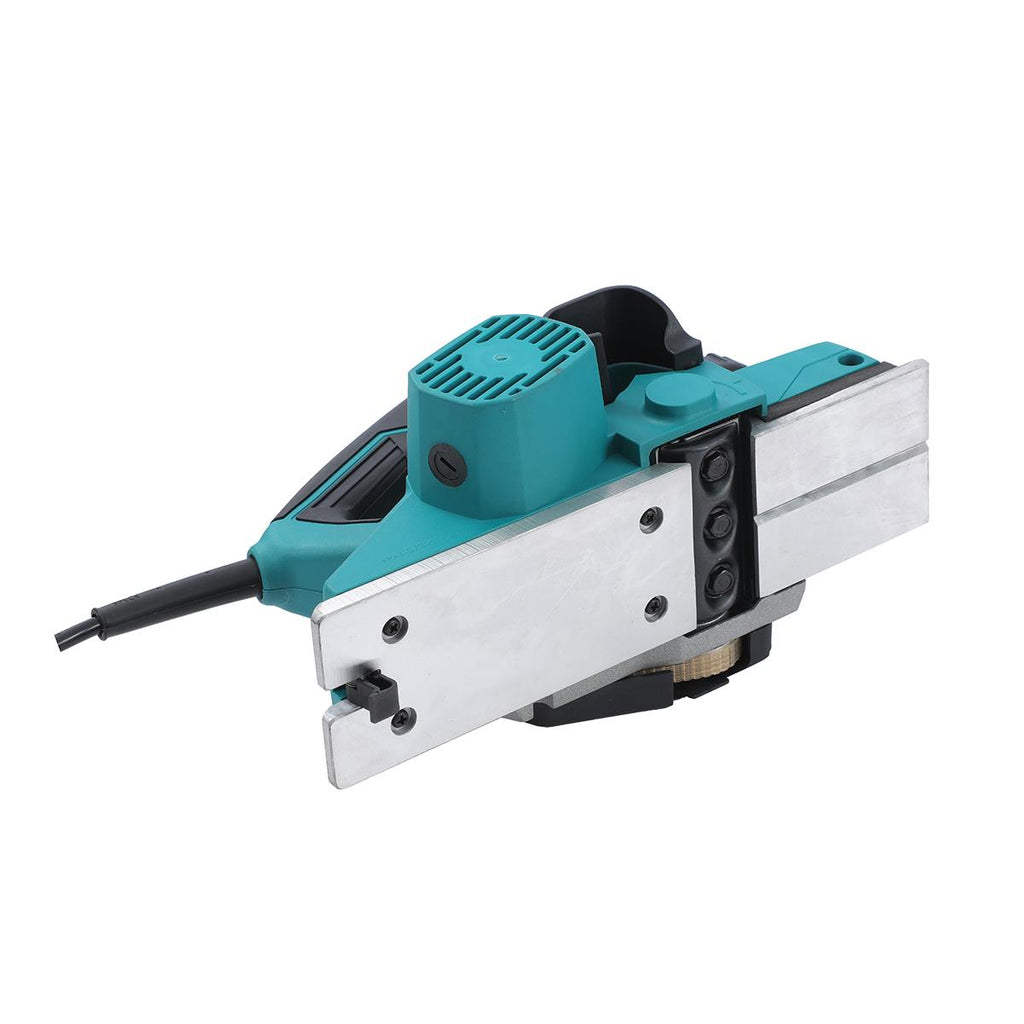

Sturdy Aluminum Base Plate: Lightweight yet rigid aluminum planer plate ensures smooth sliding and flat surface alignment.
-
Safety Lock-Off Switch: Manual control switch equipped with an integrated lock-off button to prevent accidental power-on.

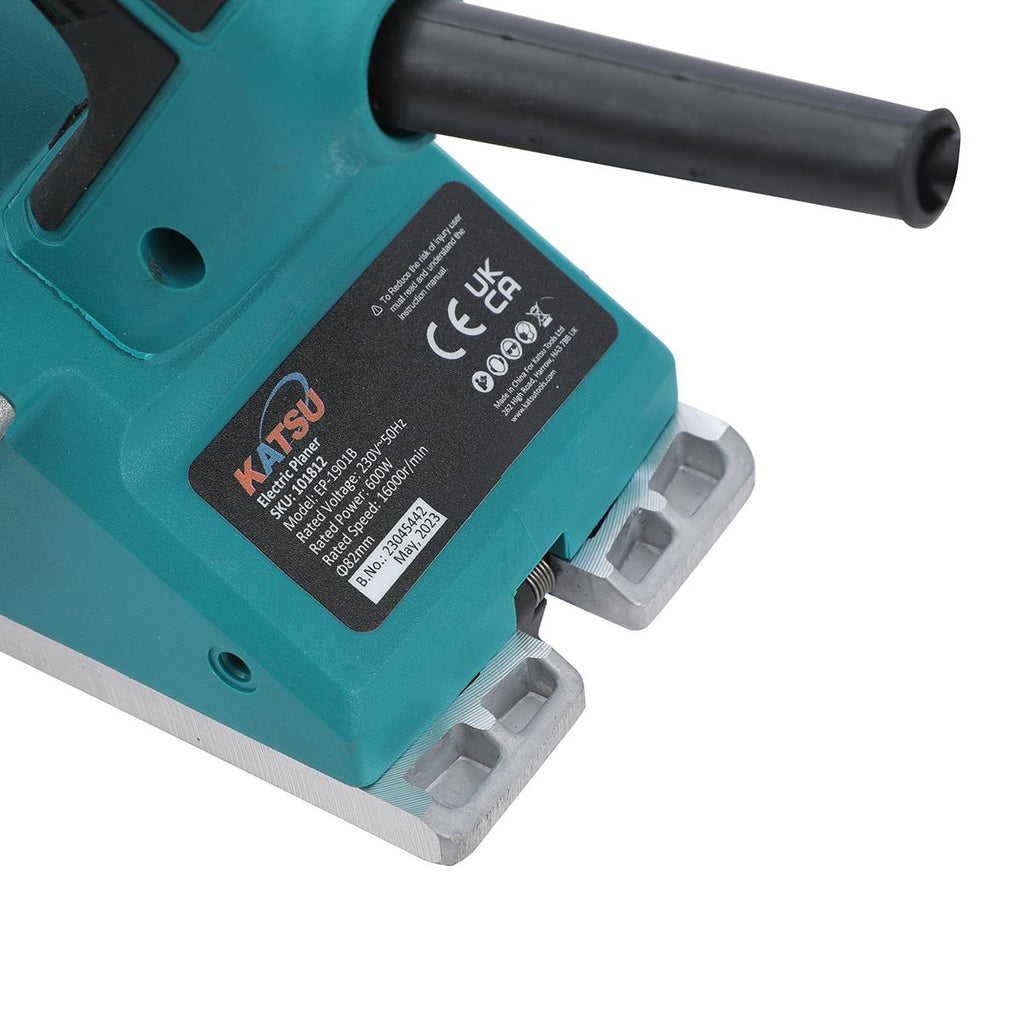

⚙ Key Specifications
| Motor Rated Power |
600 W |
| Voltage / Frequency |
220V – 230V / 50Hz |
| No-Load Speed |
16000 RPM |
| Max. Planing Width |
82 mm |
| Max. Cutting Depth |
1 mm |
| Planing Blade Material |
High Carbon Steel |
| Base Plate Material |
Aluminum |
| Power Cable Length |
1.8 Metres |
🎯 Ideal For
- Door & Window Trimming: Shaving down tight-fitting doors, timber frames, and window sashes for smooth operation.
- Wood Surface Smoothing: Flattening rough boards, leveling uneven joints, and dressing timber surfaces.
- Furniture Restoration & DIY: Edge correction, correcting splinters/chips, chamfering, and general household carpentry projects.
⚠ Important

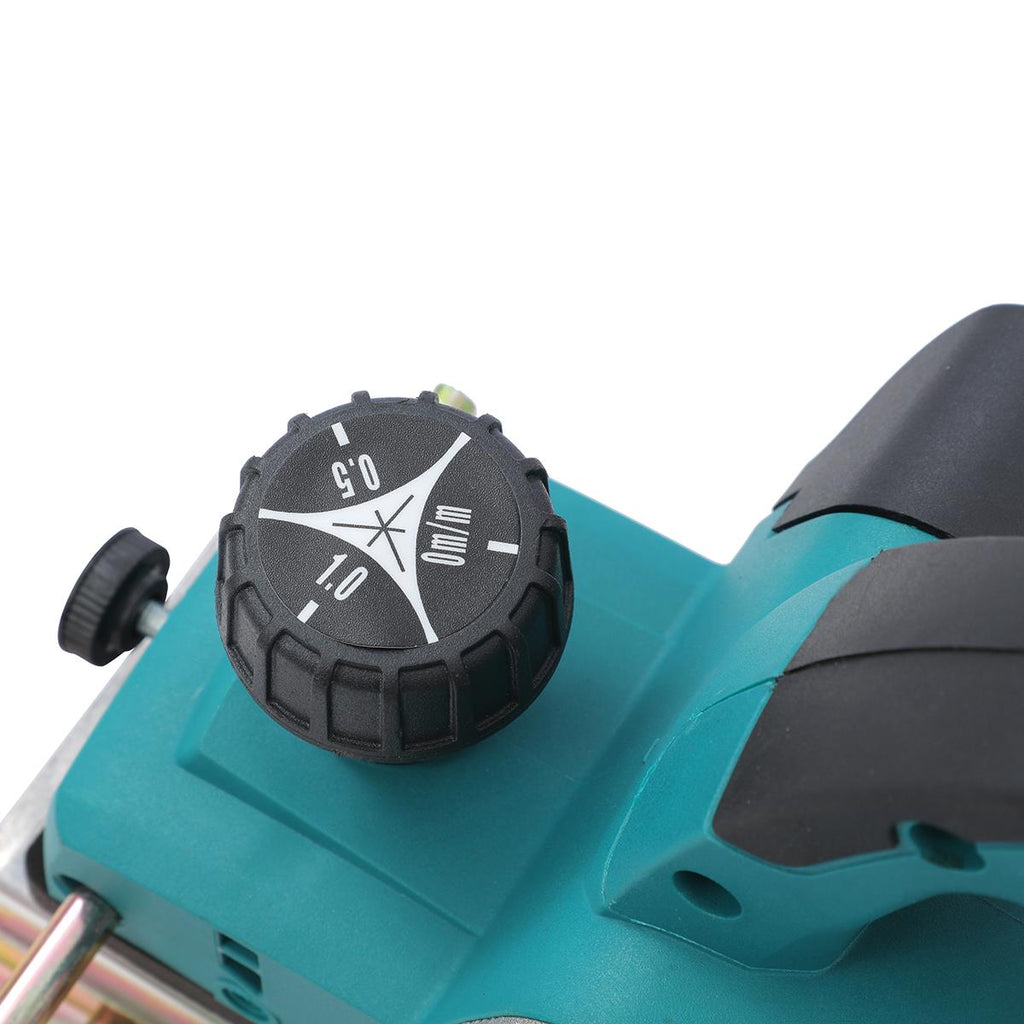

- Depth Adjustment: Turn the front knob to set the desired cutting depth up to 1mm. For optimal motor life, take lighter passes on dense hardwoods.
- Proper Feeding Technique: Keep even downward pressure on the front shoe when entering the cut, then transition pressure to the rear shoe as the planer exits the workpiece.

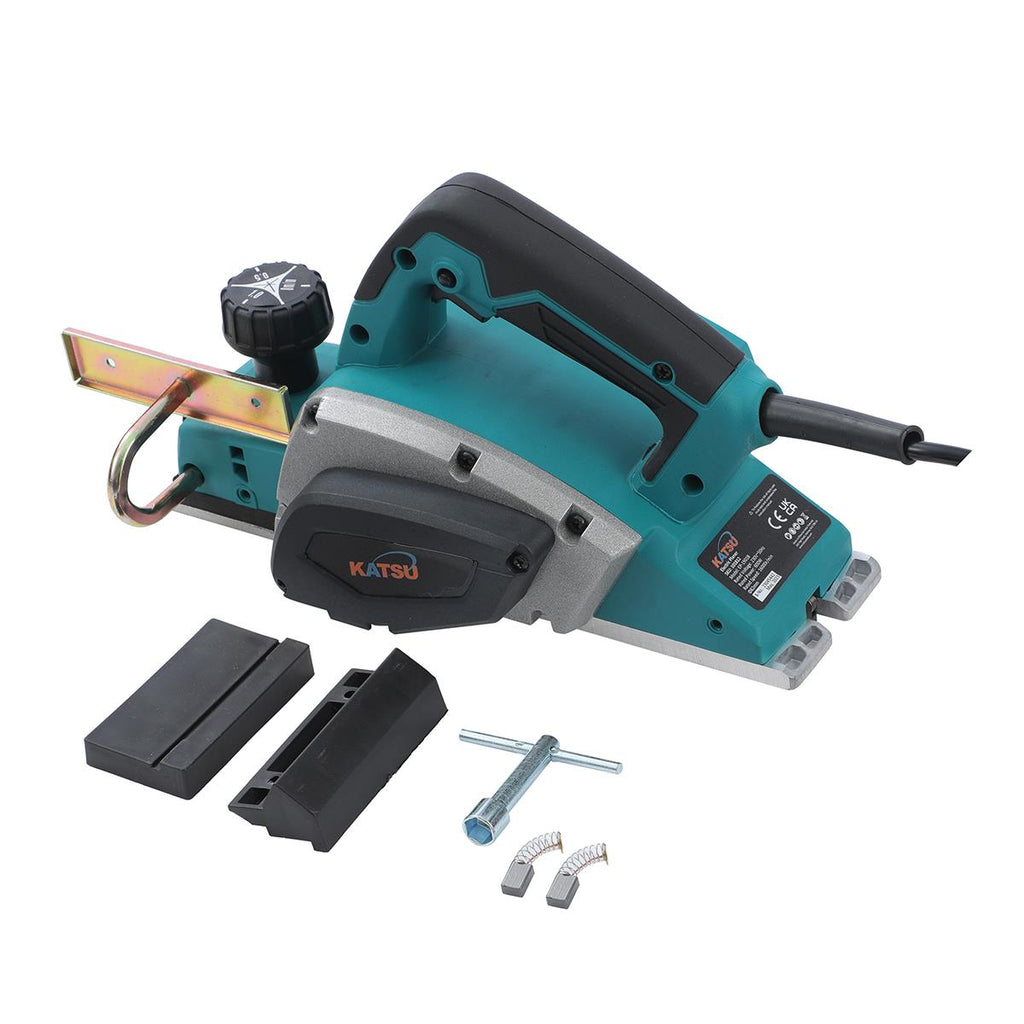

- Maintenance & Blade Sharpening: Use the included blade sharpener frame and setting jig to keep blades sharp and properly aligned. Replace carbon brushes when worn.
