KATSU Tools Heavy Duty Digital Livestock Animal Platform Scale 3000kg 833363

KATSU Tools Heavy Duty Digital Livestock Animal Platform Scale 3000kg 6600lb Capacity With 80cm Height Iron Fences, 1 * 1.5M

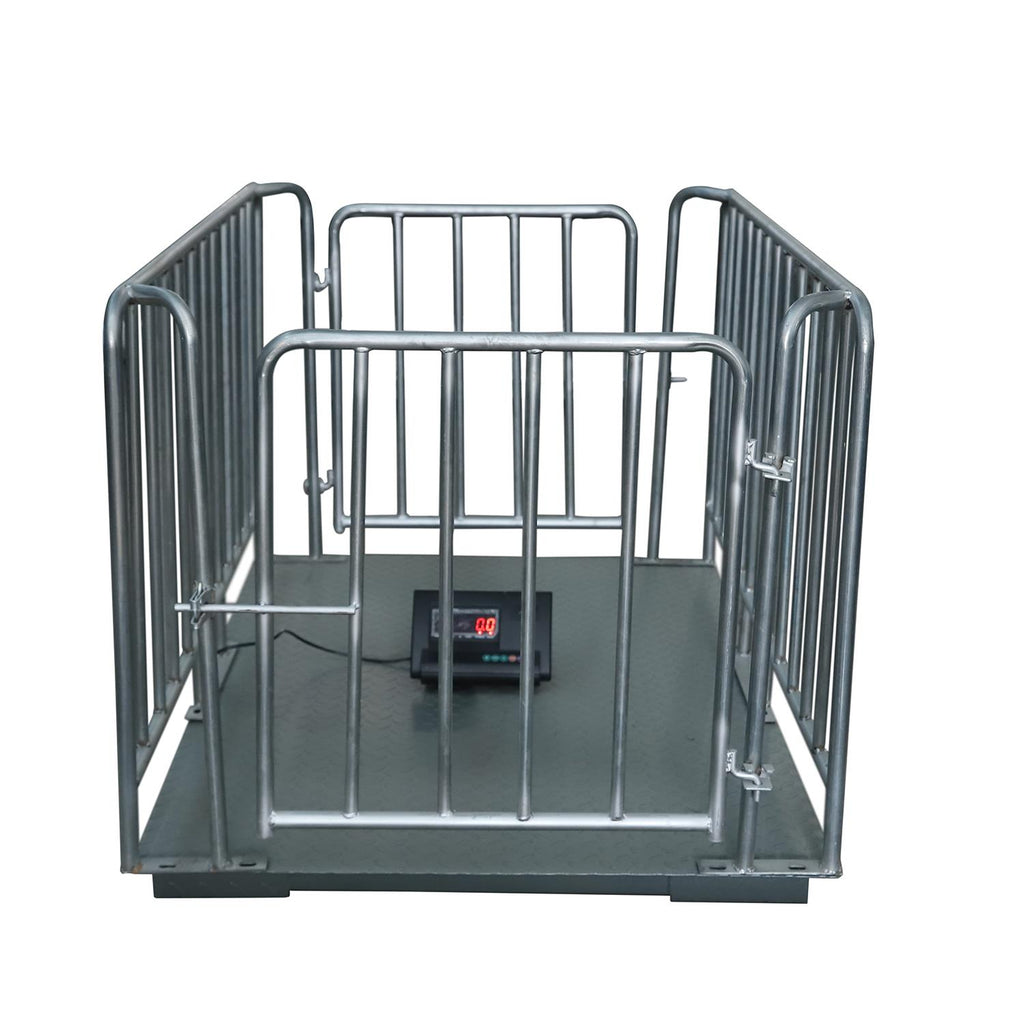

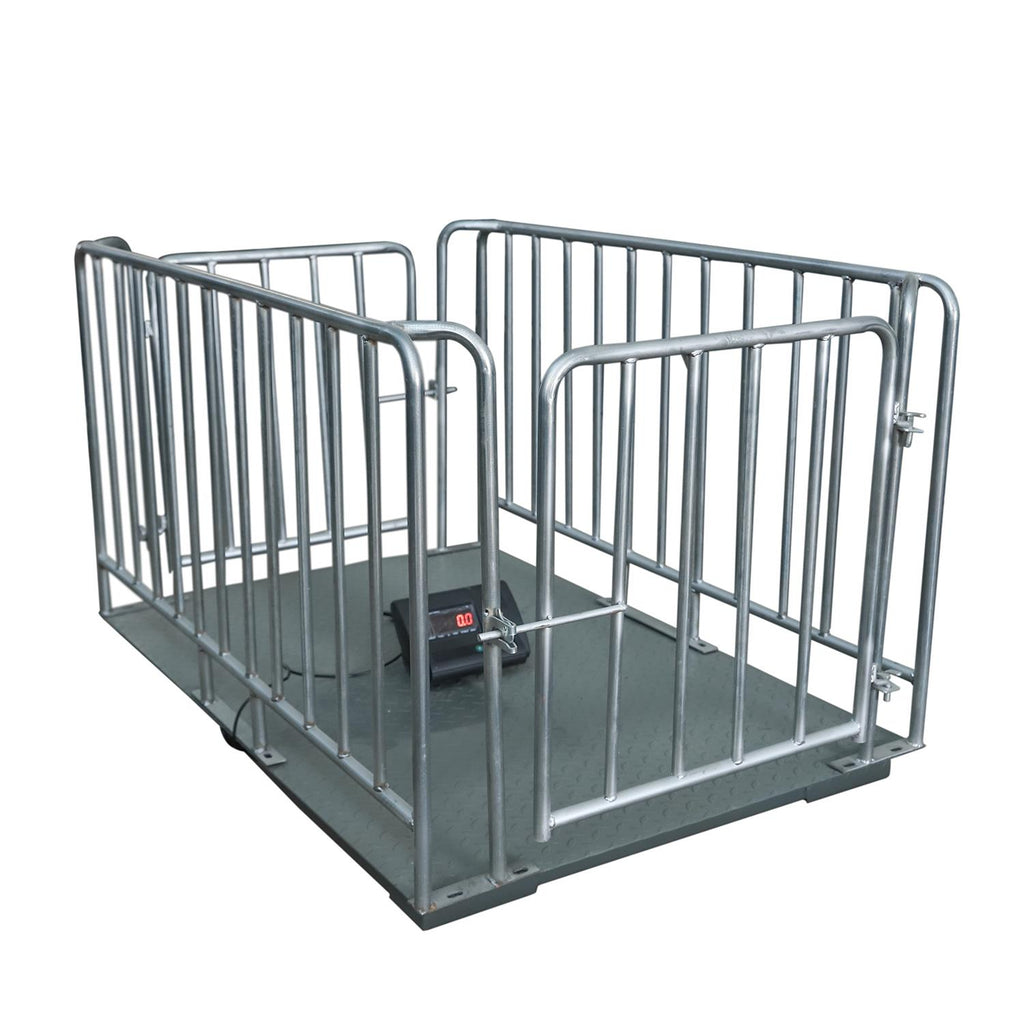

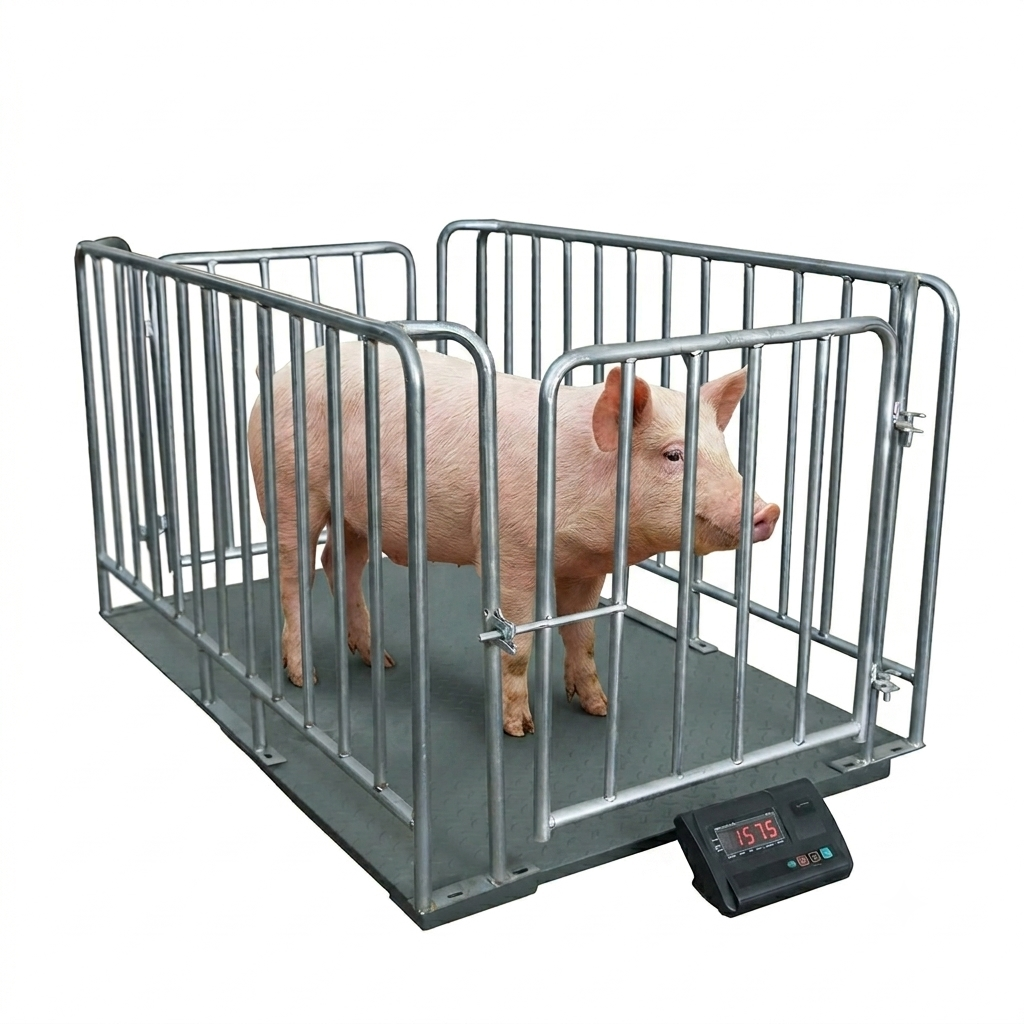

Product Overview The KATSU Tools 3000kg Heavy Duty Digital Livestock Animal Platform Scale is an industrial-grade, ultra-capacity weighing system meticulously engineered for veterinary centers, livestock farming, agricultural tracking, and rugged warehouse freight management. Constructed from high-strength waterproof carbon steel, the expansive 1.0 x 1.5 meter platform is enclosed by a heavy-duty, 80cm-high protective iron fence matrix designed to securely contain active animals or secure unstable bulky pallet cargo. Driven by a highly sensitive load cell matrix and the premium XK3190-A12 professional weighing terminal, it features a sample capture rate of 10 times per second with dedicated dynamic anti-vibration sorting algorithms to ensure an exact 500g graduation under continuous motion. Backed by a dual-source DC6V/4Ah rechargeable battery and standard RS232C telemetry data exporting, this robust system serves as an unbeatable choice for food factories, heavy logistics, and modern farming.

Features

• 80cm High Protective Iron Fences: Outfitted with structural 80cm-high iron perimeter safety rails to completely contain cattle, hogs, sheep, or large livestock, effectively preventing dynamic slippage or livestock dislodging during measurement.

• Heavy-Duty Waterproof Carbon Steel Platform: Features a massive 1.0 x 1.5 meter industrial carbon steel deck engineered to support immense heavy loading up to 3000 kg (6600 lbs) without dimensional bending.

• Advanced Dynamic Anti-Vibration Filtering: Powered by an industrial XK3190-A12 metrology core with a rapid 10Hz sampling frequency, it automatically dampens unstable reading spikes caused by live animal motion to establish precise 500g metrics.

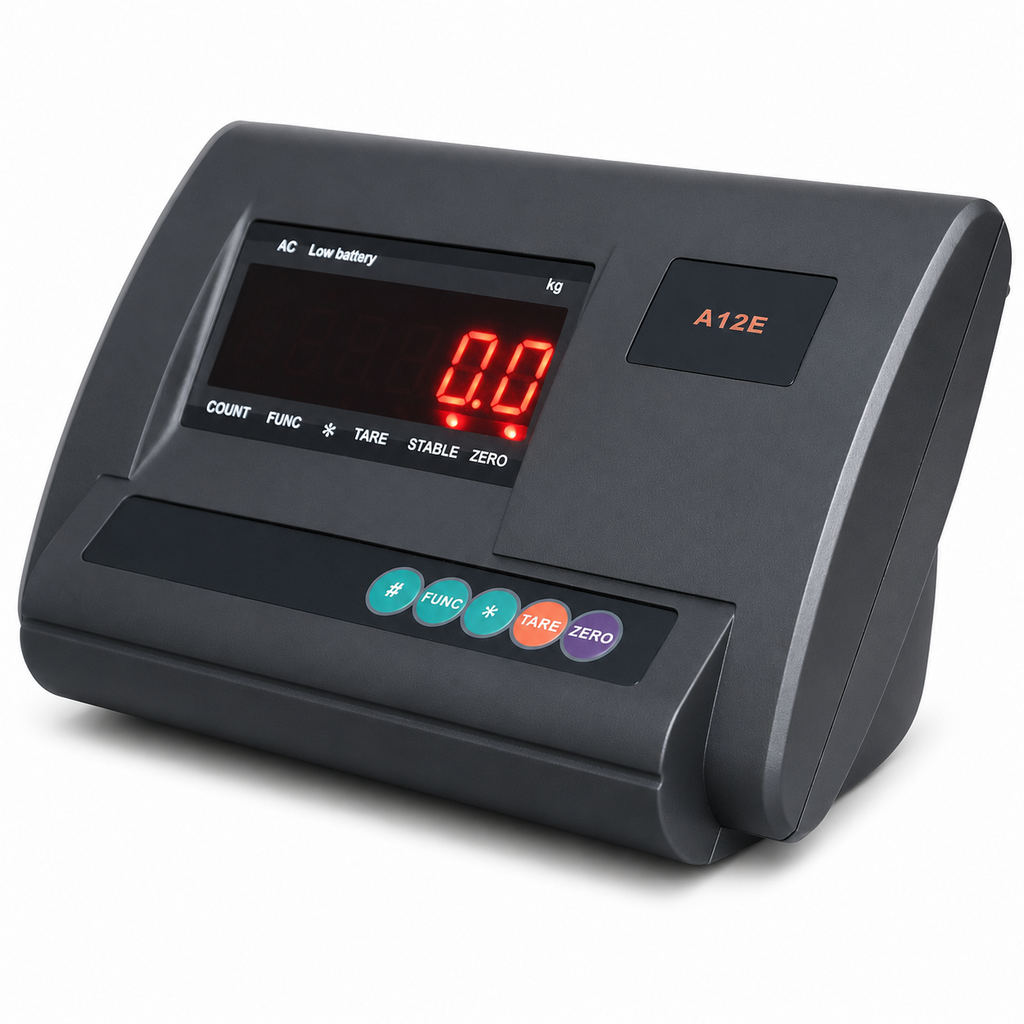

• Super-Large Backlit LCD Display Terminal: Equipped with a wide-angle, high-contrast digital LCD indicator supporting multiple scale interval matrices and an instant-on backlighting system for effortless low-light reading.

• Commercial Smart Telemetry Interface: Features integrated standard serial RS232C communication ports and a 20mA current loop scoreboard pipeline capable of transmitting remote data up to 50 meters without lag.

Technical Specifications

• Brand: KATSU Tools

• SKU: 833363

• System Framework Model: XK3190－A12 Weighing Indicator Network

• Metrology Accuracy Standard: OIML Class III Grade (n=3000)

• Maximum Weighing Capacity: 3000 KG (approx. 6600 lbs) Limit

• Measurement Resolution Graduation: 500 G Fixed Increments

• Primary Metric Scale Unit: Kilogram (KG)

• Weighing Deck Platform Dimensions: 1.0 Meter x 1.5 Meters

• Containment Fence Structure Height: 80 cm

• Analog Dynamic Sample Rate: 10 Times Per Second (10Hz)

• Internal Load Cell Sensitivity Array: 1.5 to 3.0 mV/V

• DC Power Cell Specification: DC 6V / 4Ah High-Capacity Sealed Rechargeable Battery

• Telemetry Interfaces: RS232C Serial Port (Baud Rate 1200-9600 Multi-Option) & Current Loop Matrix

• Operational Environmental Humidity: 0°C to 40°C / ≤90% RH (Non-Condensing)

⚠️ Important Operational Notes & Safety Warnings

• 🚫 LEGAL TRADE LIMITATION DISCLAIMER: This weighing equipment is exclusively intended for internal agricultural yield logging, farm livestock sorting, warehouse inventory tracking, and shipping estimations. It does not hold a legal trade certification and cannot be legally utilized for commercial meat-market transactions based on live-weight pricing.

• Animal Containment Entry Safety Protocol: Ensure the 80cm iron fences are securely bolted and latched before guiding heavy livestock onto the platform. Unchecked livestock throwing their full physical mass against an unlatched side gate can tip the structural balance or compromise the load cell array.

• Protect Core Load Cells from Submersion: While the heavy carbon steel platform and structure are waterproofed for outdoor farm washdowns, do not permanently submerge the base frame or the XK3190-A12 display indicator in standing water. Use a moderate hose pressure to rinse dung and dirt away, then allow to dry thoroughly.

• Battery Discharge Calibration Safe Guards: To extend the operational life of the internal DC 6V/4Ah lead-acid battery, avoid leaving the device plugged into chargers indefinitely or storing it completely drained. Execute a full recharge sequence if the digital platform sits idle for over 2 months.
