KATSU Tools FIT-BAT 18V / 21V Brushless Cordless Wood Router Trimmer Set with Plunge Base, Plastic Protective Base, Built-in LED Lights & 3 Collets (1/4", 6mm, 8mm), Compatible with 18V/21V LXT Battery System, Tool Only (SKU: 102755A)
Product Overview
The KATSU Tools FIT-BAT 18V/21V Brushless Cordless Wood Router Trimmer Kit (SKU: 102755A) is a highly versatile, precision woodworking system engineered for edge trimming, mortise plunging, slot routing, and decorative joinery. Powered by a high-efficiency maintenance-free brushless motor delivering up to 30,000 RPM, this tool provides up to 2X extended battery runtime compared to traditional brushed motors. Featuring built-in LED work lights beneath the base and a 5-speed variable control dial (10,000 to 30,000 RPM), it ensures clear line-of-sight and optimal cutting control across softwoods, hardwoods, MDF, and laminates. This dual-base kit comes supplied with a heavy-duty Aluminium Plunge Base for deep routing and an ergonomic Plastic Protective Shield Base to prevent workpiece scratching. As part of the KATSU Tools FIT-BAT system, it offers broad power compatibility across standard 18V and 21V LXT-style lithium-ion platforms, fully equipped with 1/4", 6mm, and 8mm collets for immediate jobsite flexibility.
Features
-

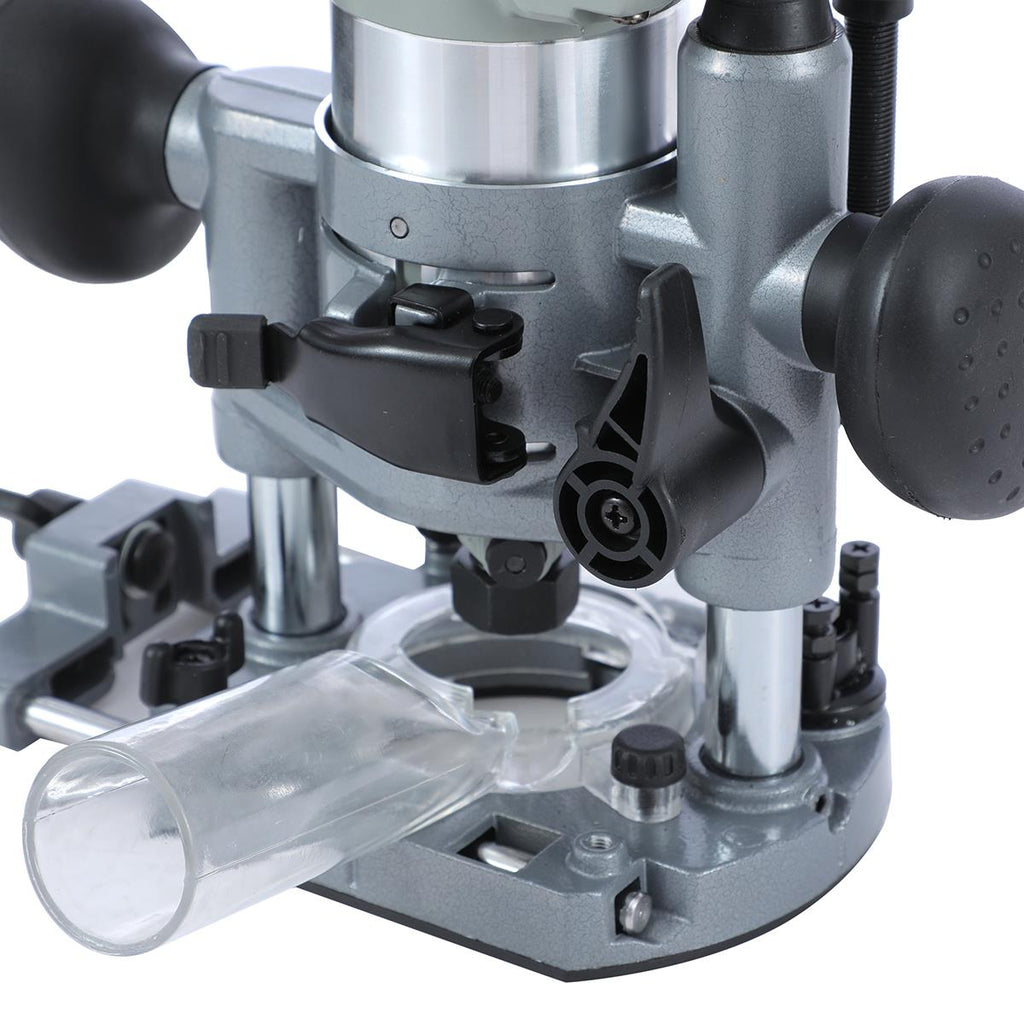

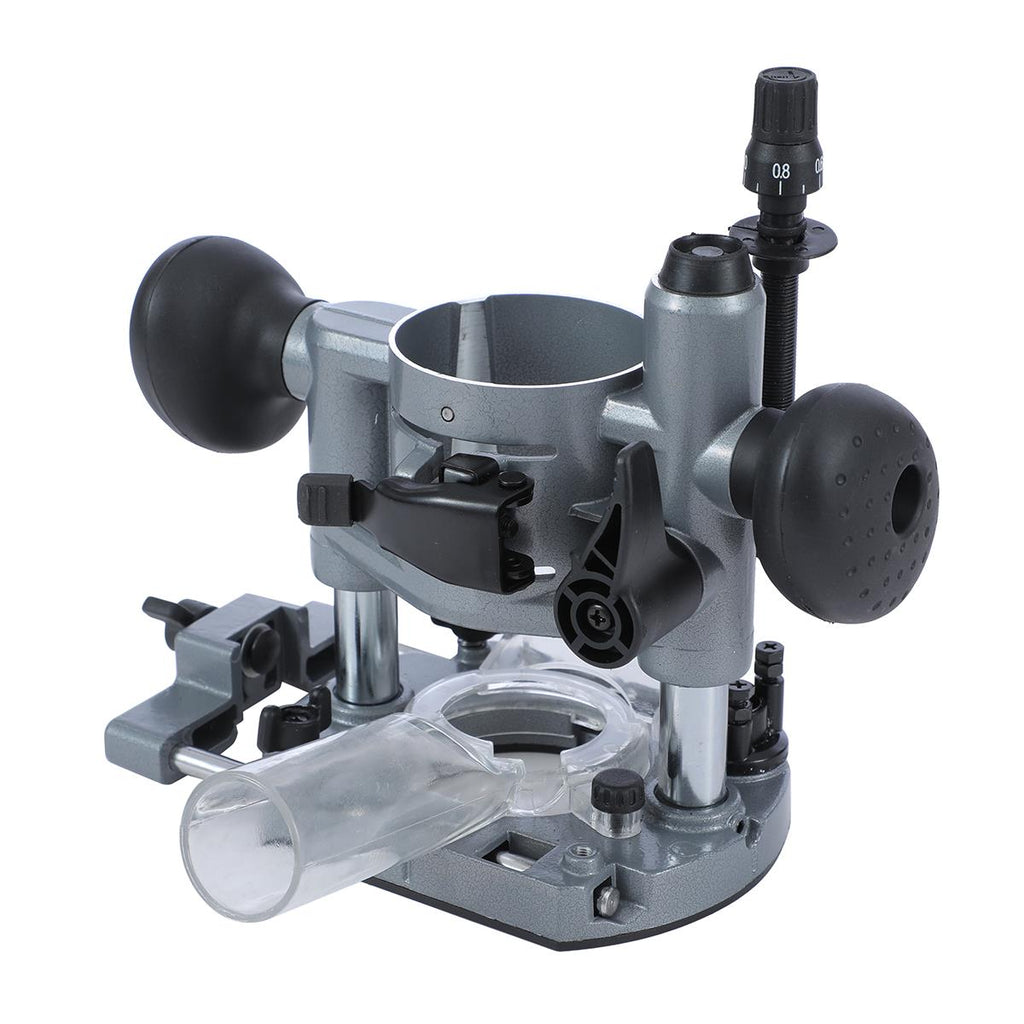

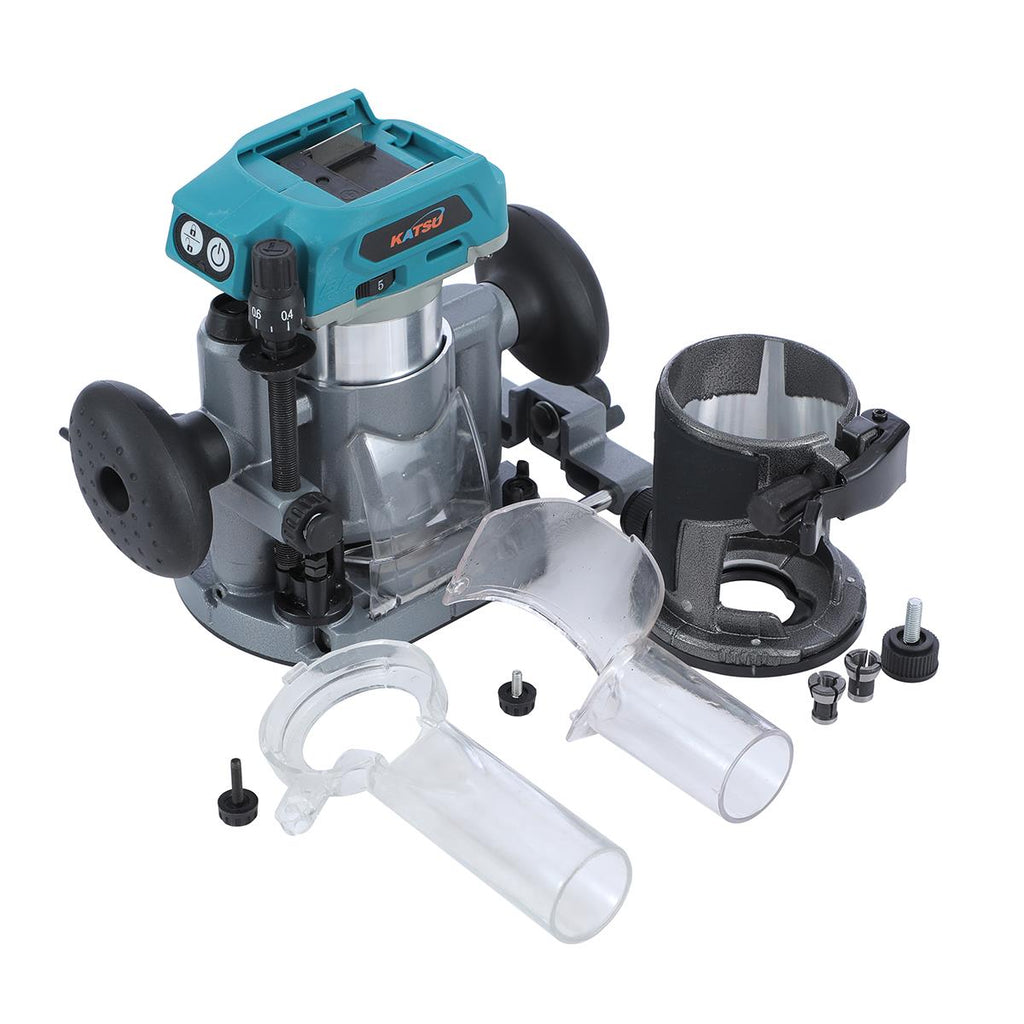

Dual Base System Included: Comes bundled with a precision-machined Aluminium Plunge Base (220 x 142 x 172mm) with rubber overmolded grips for mortising, plus a rubber-coated Plastic Protective Shield Base to shield delicate wood surfaces from scratches.
-
Maintenance-Free Brushless Motor: Advanced brushless motor technology delivers maximum power density with extended battery runtime, eliminating carbon brush wear for a significantly longer service life.
-
5-Speed Electronic Variable Control (10,000 – 30,000 RPM): Features 5 electronic speed settings (10,000 / 15,000 / 20,000 / 25,000 / 30,000 RPM) to match cutting speeds precisely to wood density and bit diameter.
-
Integrated LED Work Lights: Features built-in LED illumination integrated at the bottom of the motor housing to illuminate the workpiece and maintain line-of-sight in low-light environments.
-
3 Precision Collets Included (1/4", 6mm, 8mm): Ships out of the box with 1/4" (6.35mm), 6mm, and 8mm precision collet chucks, offering broad bit shank compatibility across imperial and metric router bits.
-

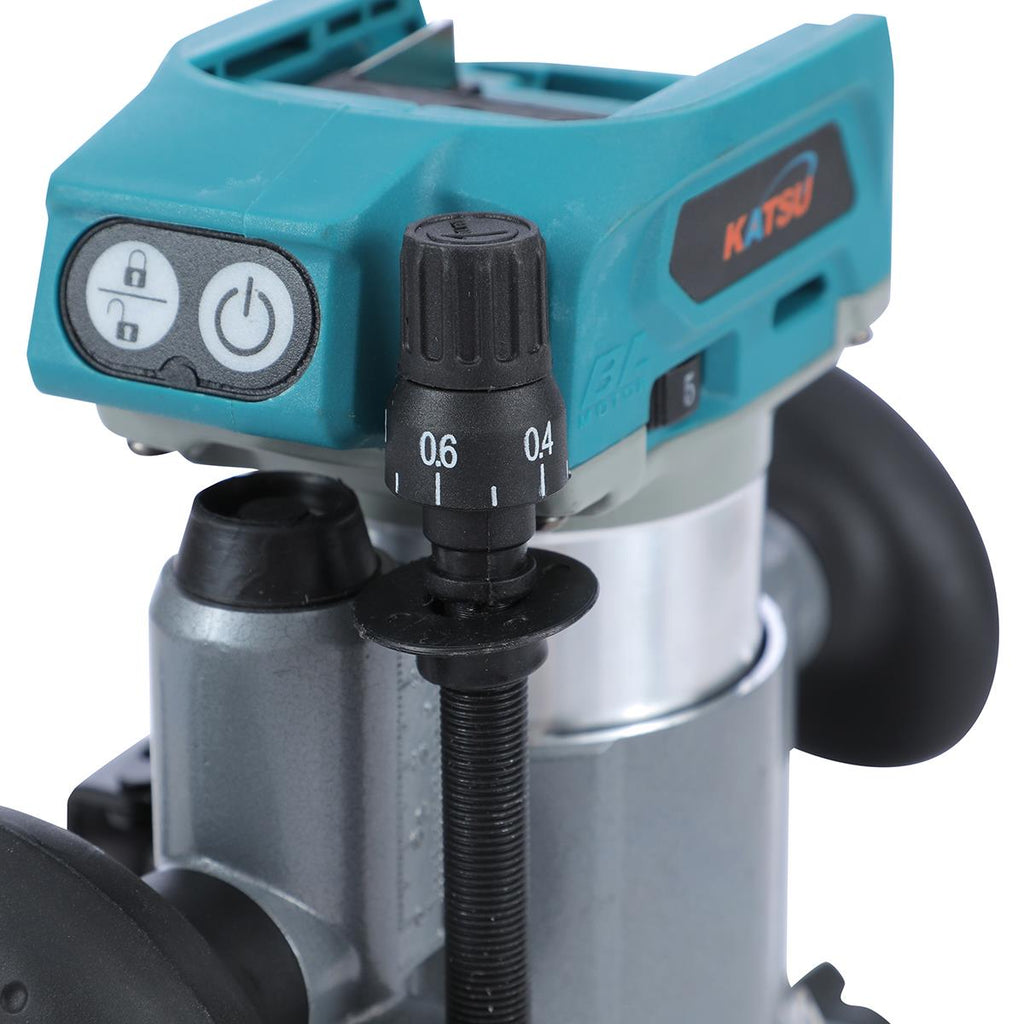

Precision Depth Adjustment & Quick-Lock System: Micro-adjustable rack-and-pinion depth mechanism (up to 20mm depth) with a quick-clamp locking lever for accurate, repeatable routing setup.
-

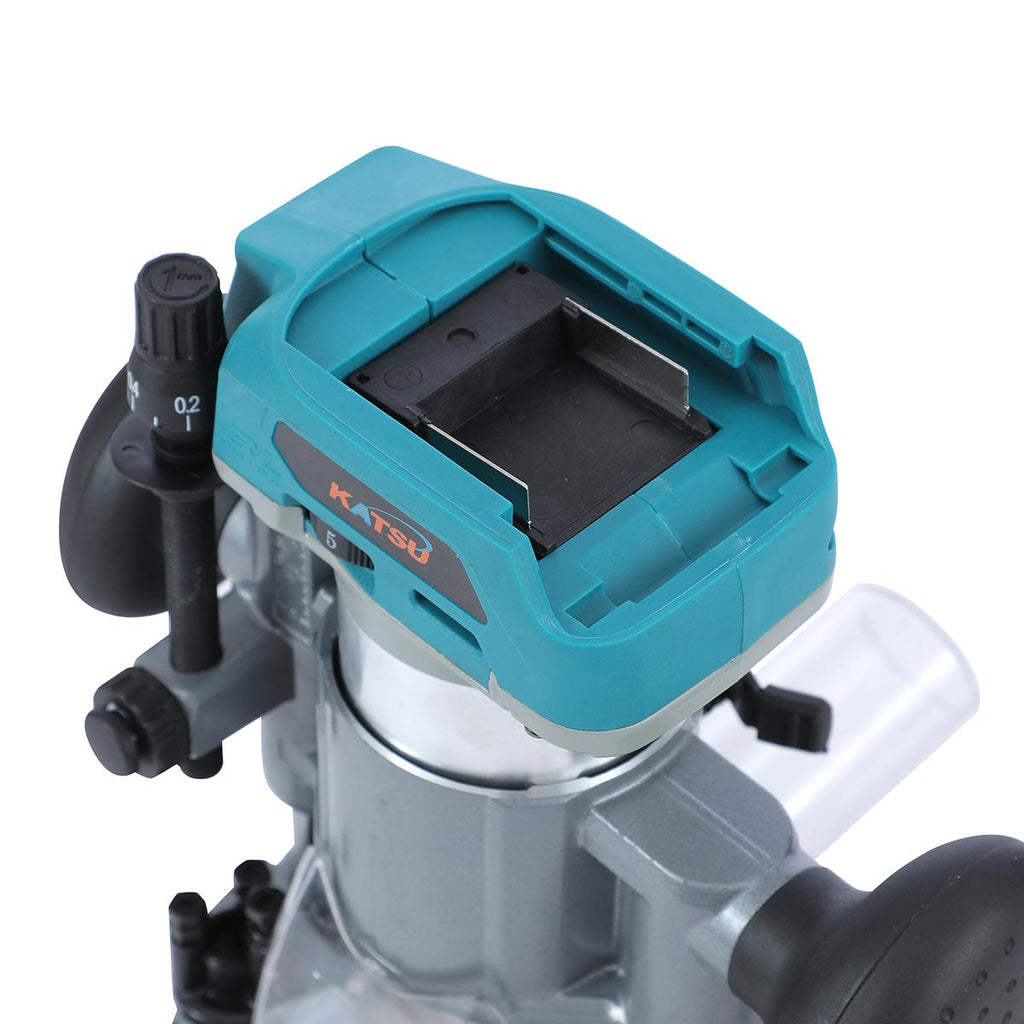

FIT-BAT Universal 18V/21V Battery System: Powered by the KATSU Tools FIT-BAT ecosystem, fully compatible with widely available 18V/21V LXT-style lithium-ion battery packs (compatible with BL1830, BL1840, BL1850, BL1860B series).
Technical Specifications
| Specification Parameter | Performance Value |
| SKU | 102755A |
| Tool Type | Cordless Brushless Wood Router Trimmer Dual Base Kit |
| Motor Type | High-Efficiency Maintenance-Free Brushless Motor |
| Operating Voltage | DC 18 V – 21 V |
| Battery Compatibility | KATSU Tools FIT-BAT & LXT-Style 18V/21V Batteries |
| No-Load Speed | 10,000 / 15,000 / 20,000 / 25,000 / 30,000 RPM (5 Speeds) |
| Trimmer Body Diameter (without base) | 64.8 mm |
| Max Routing Depth | Approx. 20 mm |

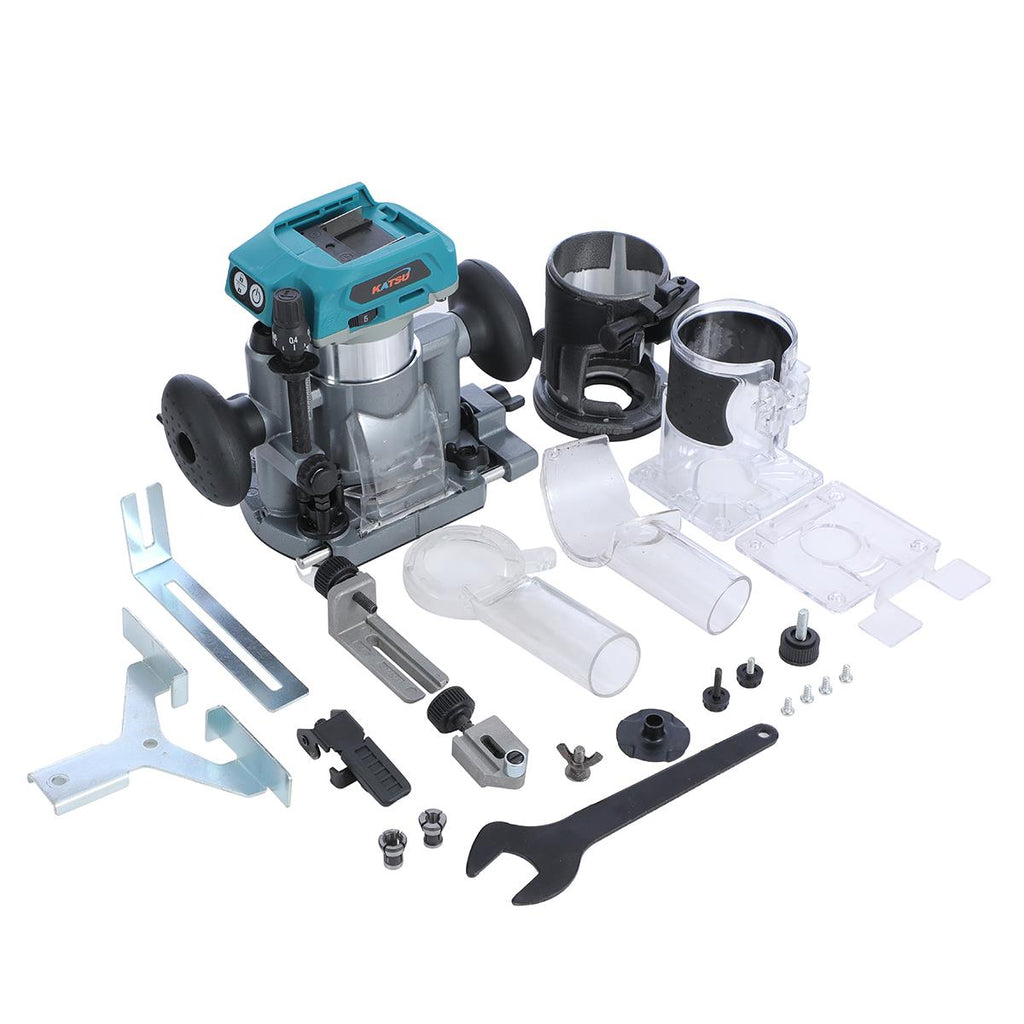

| Bases Included in Kit | Heavy-Duty Aluminium Plunge Base, Plastic Protective Base |
| Illumination | Integrated Dual LED Work Lights at Base |
| Included Collet Sizes | 1/4" (6.35 mm), 6 mm, 8 mm |
| Plunge Base Dimensions | 220 mm × 142 mm × 172 mm |
| Battery & Charger | Bare Tool Only (Sold Separately) |
Ideal Applications
-
Mortising, Slotting & Cabinetry: Use the dual-handle Plunge Base for cutting hinge recesses, dado grooves, mortise & tenon joints, and custom cabinet assembly.
-

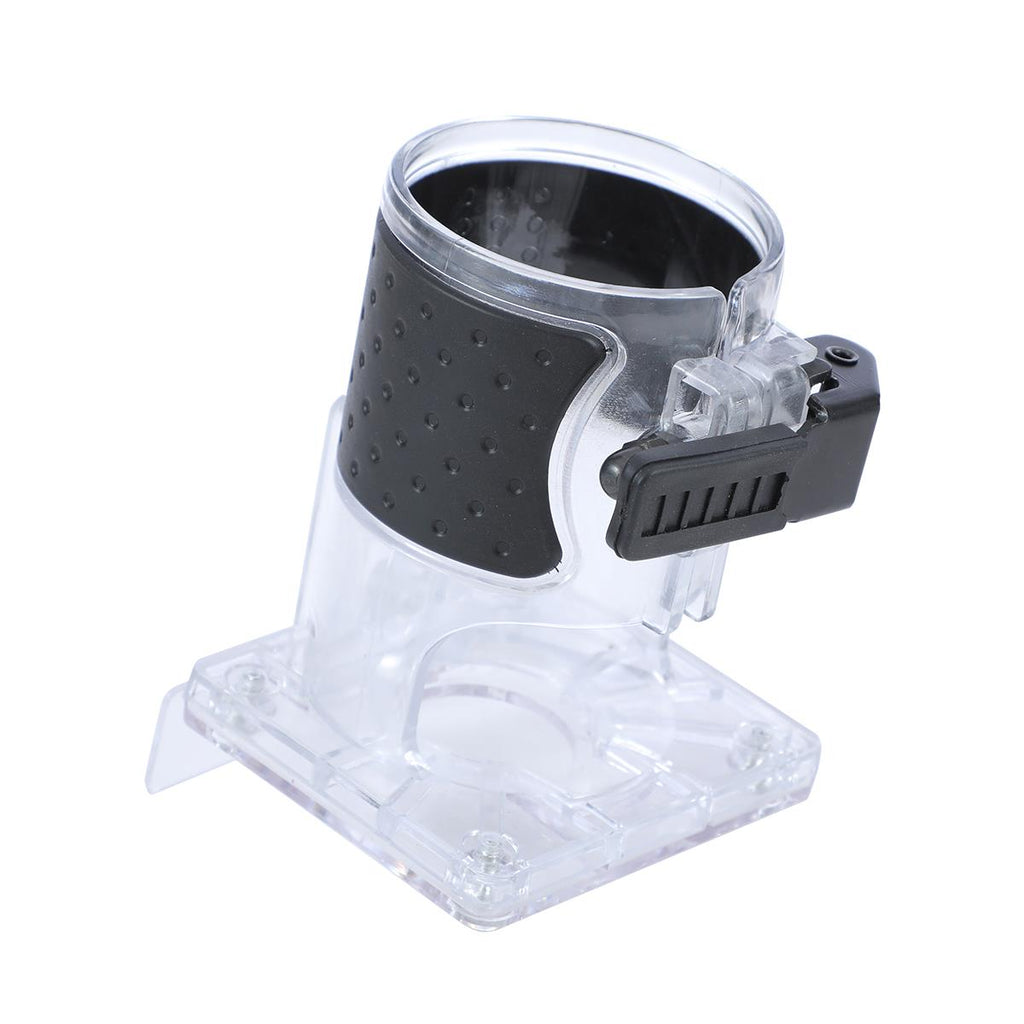

Laminate & Veneer Flush Trimming: Use the rubberized Plastic Protective Base for smooth flush trimming on plastic laminates and delicate veneers without surface marring.
-
Decorative Milling & Crafts: Creating clean bevels, decorative borders, and panel channels across softwood, hardwood, and MDF.
Operating & Care Guidelines
-
Incremental Pass Safety Guideline: To prevent motor overload and maintain precise tool control, depth of cut should not exceed 3mm per pass when cutting grooves. Make several passes with progressively deeper bit settings for cuts exceeding 3mm depth.
-
Notice on Soft Start: Please note that this specific cordless model does not feature soft start. Hold the tool securely with two hands when turning the power switch on.
-
Bit & Base Setup: Engage the spindle lock button, insert your router bit shank securely into the 1/4", 6mm, or 8mm collet, and tighten with the included wrench. Release the quick-clamp lever on the 64.8mm body to swap between the Plunge Base and Protective Base as needed.
